Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|

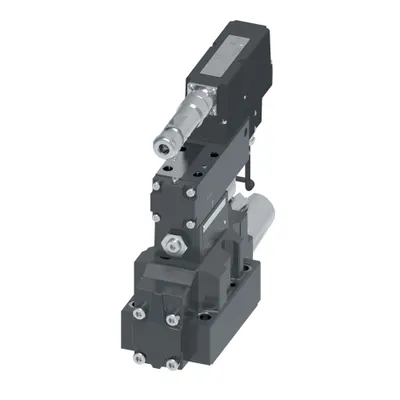

| 864AN00033A | 150.00 | 39.60 | 85.00 | 22.50 | KBHDG5V72C150N85EXM2PE7H412 |

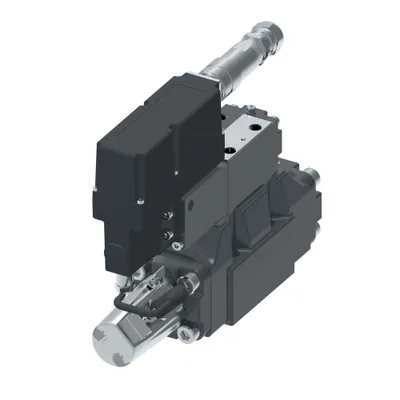

| 864AN00032A | 95.00 | 25.10 | 95.00 | 25.10 | KBHDG5V52C95NEM1PE7H412 |
| 864AN00031A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NEXM1PE7H412 |

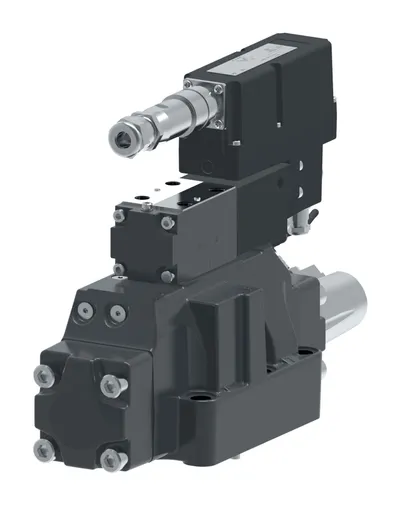

| 864AN00029A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V85C375NTM1PE7H412 |

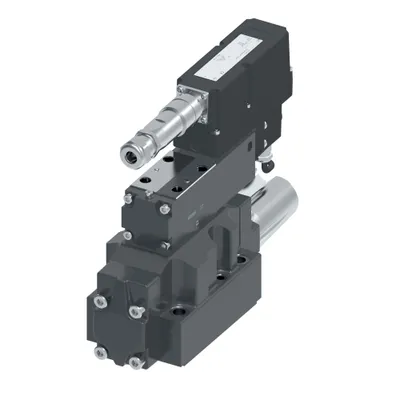

| 864AN00028A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V72C200NTM1PE7H412 |
| 864AN00027A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V82C375N250XM1PE7H412 |
| 864AN00025A | 80.00 | 21.00 | 80.00 | 21.00 | KBHDG5V533C80NXM1PH7H412 |
| 864AN00024A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V72C200NXTM1PH7H412 |

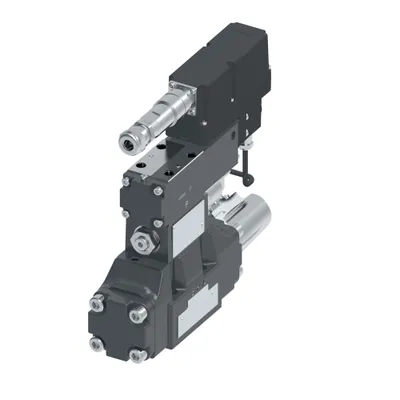

| 864AN00023A | 85.00 | 22.50 | 85.00 | 22.50 | KBHDG5V55C85NXM1PE7H412 |
| 864AN00022A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V85C375NEM1PE7H412 |
| 864AN00021A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V85C375NXM1PH7H412 |
| 864AN00020A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V82C375NEXM1PE7H412 |

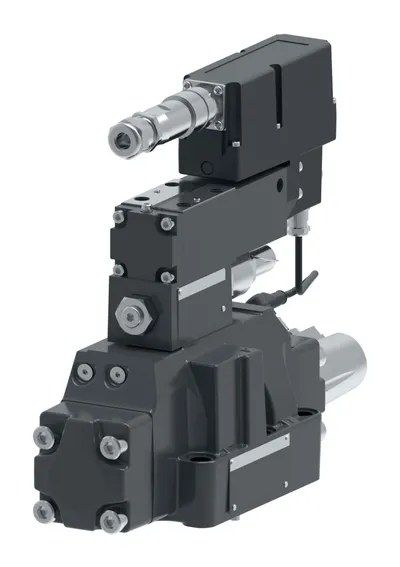

| 864AN00019A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V833C375N250XM1PE7H412 |
| 864AN00017A | 150.00 | 39.60 | 85.00 | 22.50 | KBHDG5V72C150N85EXM1PE7H412 |
| 864AN00016A | 85.00 | 22.50 | 85.00 | 22.50 | KBHDG5V55C85NETM1PE7H412 |
| 864AN00015A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V85C375NEXM1PC7H412 |
| 864AN00014A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NXTM1PE7H412 |
| 864AN00013A | 200.00 | 52.80 | 115.00 | 30.40 | KBHDG5V75C200N115EM1PH7H412 |
| 864AN00012A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NEXM1PE7H412 |
| 864AN00011A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NTM1PE7H412EN037 |
| 864AN00010A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V72C200NXM1PE7H412 |

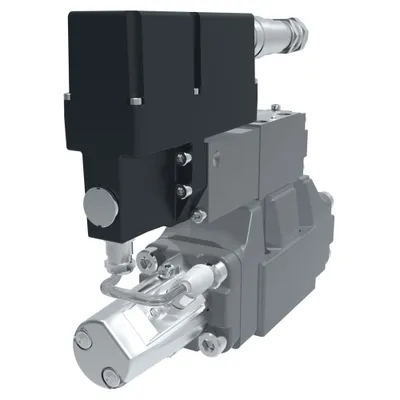

| 864AN00009A | 85.00 | 22.50 | 85.00 | 22.50 | KBHDG5V533C85NTM1PE7H412EN037 |
| 864AN00008A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V75C200NXTM1PE7H412 |
| 864AN00007A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NXM1PE7H412 |
Common to all listed parts
| Actuation Type | Solenoid controlled pilot operated |
| Build orientation | Solenoid at B port end |
| Build type | Spring centered |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Current | 3 amp |
| Design Series | 12 Series |
| Feedback sensor | Yes |
