Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|
| 864AN00160A | 70.00 | 18.50 | 45.00 | 12.00 | KBHDG5V52C70N45XM2PH7H412 |
| 864AN00159A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65EXM1PE7H412 |
| 864AN00158A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V82C375N250EXM2PH7H412 |
| 864AN00157A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NEXM2PH7H412 |
| 864AN00156A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NEXM2PE7H412 |
| 864AN00155A | 230.00 | 61.30 | 230.00 | 61.30 | KBHDG5V72C230NEXM1PE7H420 |
| 864AN00150A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65EXM1PC7H412 |

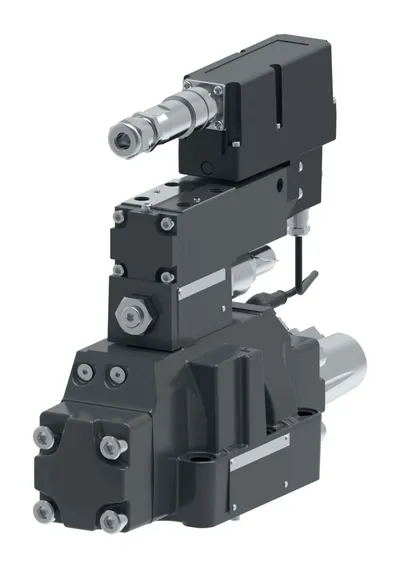

| 864AN00149A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NEXTM2PE7H412 |
| 864AN00147A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65EXM2PH7H412 |

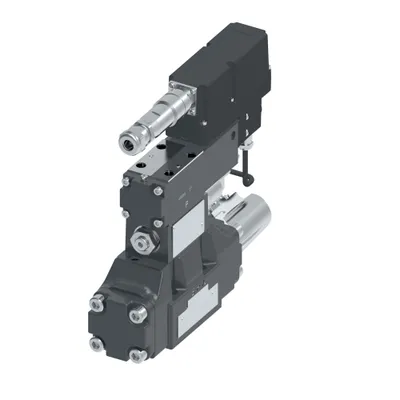

| 864AN00145A | 60.00 | 16.00 | 40.00 | 10.60 | KBHDG5V533C60N40XM2PE7H412 |
| 864AN00142A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65EXM2PE7H412 |
| 864AN00140A | 230.00 | 61.30 | 230.00 | 61.30 | KBHDG5V733C230NXM1PE7H420 |
| 864AN00139A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V82C375NXTM2PE7H412 |
| 864AN00136A | 230.00 | 61.30 | 230.00 | 61.30 | KBHDG5V733C230NXTM2PE7H420 |
| 864AN00132A | 220.00 | 58.10 | 220.00 | 58.10 | KBHDG5V82C220NXTM2PC7H412 |
| 864AN00130A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V8733C375N250EXM1PE7H412 |
| 864AN00128A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65XTM2PE7H412 |
| 864AN00127A | 150.00 | 39.60 | 85.00 | 22.50 | KBHDG5V72C150N85XM1PE7H412 |
| 864AN00124A | 80.00 | 21.00 | 80.00 | 21.00 | KBHDG5V533C80NXTM1PE7H412 |
| 864AN00121A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V82C375N250EXM2PE7H412 |

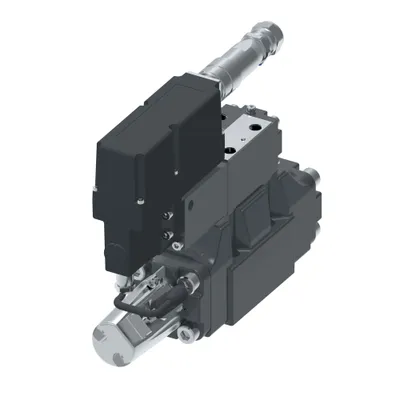

| 864AN00120A | 95.00 | 25.10 | 95.00 | 25.10 | KBHDG5V52C95NTM1PE7H412 |
| 864AN00117A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NEXM2PE7H412 |
| 864AN00114A | 60.00 | 16.00 | 40.00 | 10.60 | KBHDG5V533C60N40EXM2PE7H412 |
| 864AN00112A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NXM2PE7H412 |
Common to all listed parts
| Actuation Type | Solenoid controlled pilot operated |
| Build orientation | Solenoid at B port end |
| Build type | Spring centered |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Current | 3 amp |
| Feedback sensor | Yes |
| Fluid Cleanliness | 17/15/12 micron |
