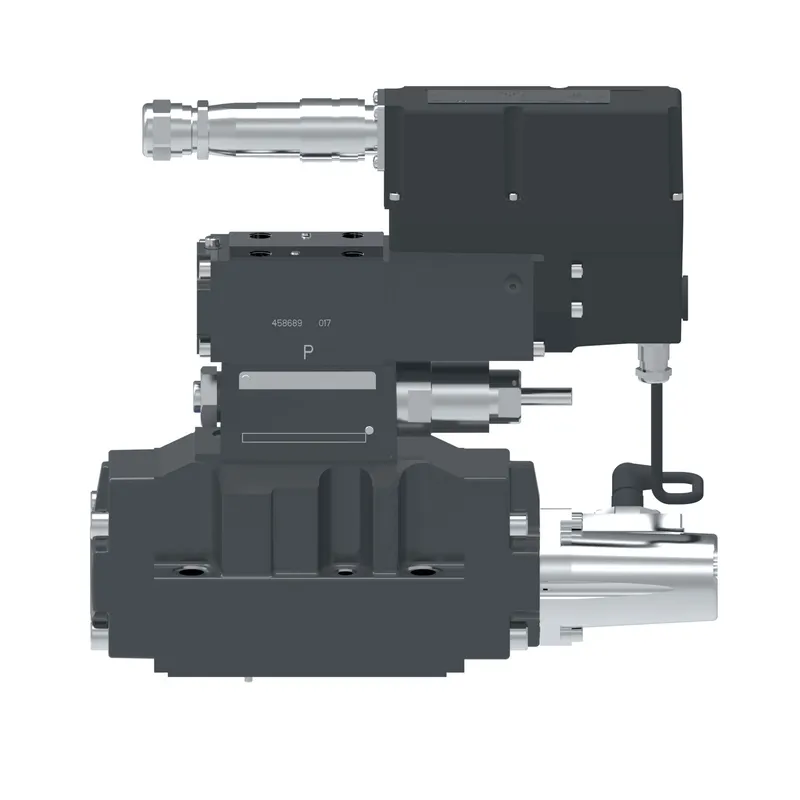

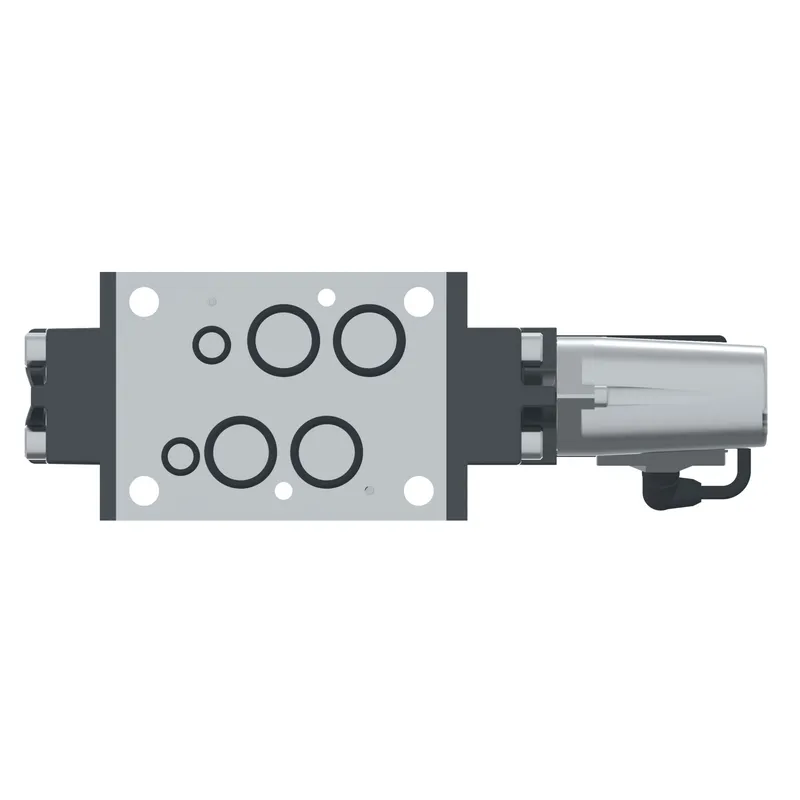

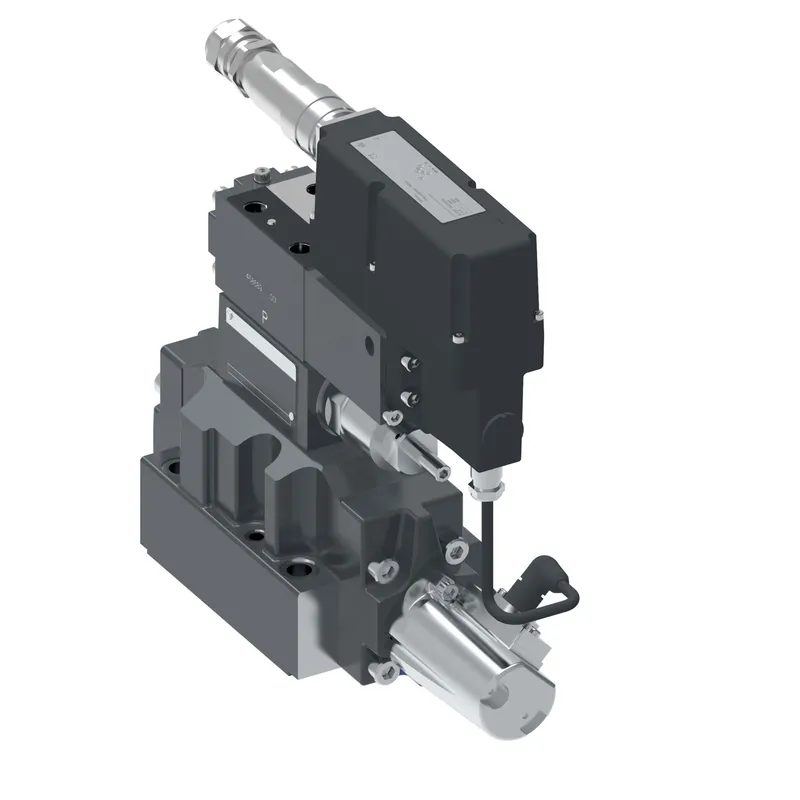

What is the Danfoss 864AN00087A?

Danfoss KBHDG5V-7-5C200N-X-M1-PE7-H4-12, KBHDG5V75C200NXM1PE7H412, manufacturer part number 864AN00087A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM200.00
A Port flow USGPM52.80
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM200.00
B Port flow USGPM52.80
BrandVickers by Danfoss
Build orientationSolenoid at B port end
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/-10V Command +/-10V feedback
Communication protocolNone
Current3 amp
Design Series12 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-07/NFPA D07/CETOP 7/NG16
Manual overrideNone
Maximum pressure BAR350
Maximum pressure PSI5000
MeteringMeter in / meter out
Model Code 1KBHDG5V75C200NXM1PE7H412
On board electronicsYes
PerformanceServo
Pilot drainExternal
Pilot supplyInternal
Product height in9.870
Product height mm250.698
Product length in10.920
Product length mm277.368
Product width in3.620
Product width mm91.948
ProFX compatibleNo
Reducer moduleYes
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeClosed centre (all ports)
StageTwo stage
Symmetric flowYes
Tank port rating BAR350
Tank port rating PSI5000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-40
Working temp min F-40
