Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Burst pressure (psi) | Inside diameter (inch) |
|---|---|---|---|---|---|
| EC115-20L | 8.270 | 210.000 | 252 | 3700 | 1.25 |
| EC115-16LRL | 6.300 | 160.000 | 352 | 5100 | 1.00 |
| EC115-16LMT50 | 6.300 | 160.000 | 352 | 5100 | 1.00 |
| EC115-16EL | 6.300 | 160.000 | 352 | 5100 | 1.00 |
| EC115-16 | 6.300 | 160.000 | 352 | 5100 | 1.00 |
| EC115-12LRL | 4.720 | 120.000 | 420 | 6100 | 0.75 |
| EC115-12LMT50 | 4.720 | 120.000 | 420 | 6100 | 0.75 |
| EC115-12L | 4.720 | 120.000 | 420 | 6100 | 0.75 |

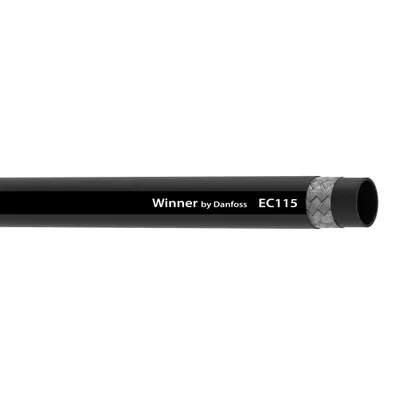

| EC115-12EL | 4.720 | 120.000 | 420 | 6100 | 0.75 |
| EC115-12 | 4.720 | 120.000 | 420 | 6100 | 0.75 |
| EC115-10LRL | 3.940 | 100.000 | 520 | 7600 | 0.62 |
| EC115-10LMT50 | 3.940 | 100.000 | 520 | 7600 | 0.62 |
| EC115-10L | 3.940 | 100.000 | 520 | 7600 | 0.62 |
| EC115-10EL | 3.940 | 100.000 | 520 | 7600 | 0.62 |
| EC115-08LRL | 3.540 | 90.000 | 640 | 9200 | 0.50 |
| EC115-08LMT50 | 3.540 | 90.000 | 640 | 9200 | 0.50 |
| EC115-08EL | 3.540 | 90.000 | 640 | 9200 | 0.50 |
| EC115-08-2-ELMT50 | 3.540 | 90.000 | 640 | 9200 | 0.50 |
| EC115-06LRL | 2.480 | 63.000 | 720 | 10400 | 0.38 |
| EC115-06LMT50 | 2.480 | 63.000 | 720 | 10400 | 0.38 |
| EC115-06EL | 2.480 | 63.000 | 720 | 10400 | 0.38 |
| EC115-06-2-ELMT50 | 2.480 | 63.000 | 720 | 10400 | 0.38 |
| EC115-06 | 2.480 | 63.000 | 720 | 10400 | 0.38 |
| EC115-05LMT50 | 2.170 | 55.000 | 860 | 12500 | 0.31 |
Common to all listed parts
| Abrasion resistance | Standard |
| Application | Crude oil |
| Certifications | USCG |
| Color | Black |
| Compliances | SAE 100R1 |
| Conditional temp range | 32F to 158F for water |
| Conductivity | Conductive |
| Construction | 1 Wire Braid |
