Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EC118-16 | 5.910 | 150.000 | 840 | 1.46 | 37.08 |
| EC118-12LRL | 4.720 | 120.000 | 840 | 1.13 | 28.70 |
| EC118-12L | 4.720 | 120.000 | 840 | 1.13 | 28.70 |
| EC118-10LRL | 3.940 | 100.000 | 840 | 0.97 | 24.64 |
| EC118-10L | 3.940 | 100.000 | 840 | 0.97 | 24.64 |
| EC118-08LRL | 3.540 | 90.000 | 840 | 0.78 | 19.81 |

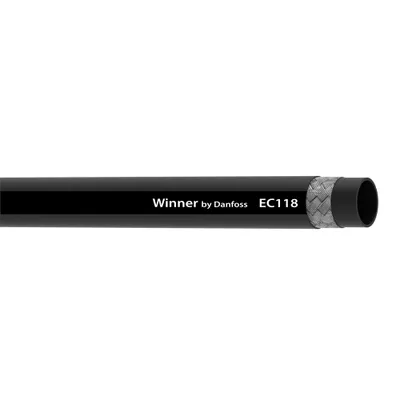

| EC118-08L | 3.540 | 90.000 | 840 | 0.78 | 19.81 |
| EC118-06LRL | 2.560 | 65.000 | 840 | 0.63 | 16.00 |
| EC118-06L | 2.560 | 65.000 | 840 | 0.63 | 16.00 |
| EC118-05L | 2.170 | 55.000 | 840 | 0.55 | 13.97 |
| EC118-04LRL | 1.970 | 50.000 | 840 | 0.49 | 12.45 |
| EC118-04L | 1.970 | 50.000 | 840 | 0.49 | 12.45 |
| EC115S-16L | 6.300 | 160.000 | 352 | 1.35 | 34.29 |
| EC115S-12L | 4.720 | 120.000 | 420 | 1.04 | 26.42 |
| EC115S-10L | 3.940 | 100.000 | 520 | 0.90 | 22.86 |
| EC115S-08L | 3.540 | 90.000 | 640 | 0.78 | 19.81 |
| EC115S-06L | 2.480 | 63.000 | 720 | 0.63 | 16.00 |

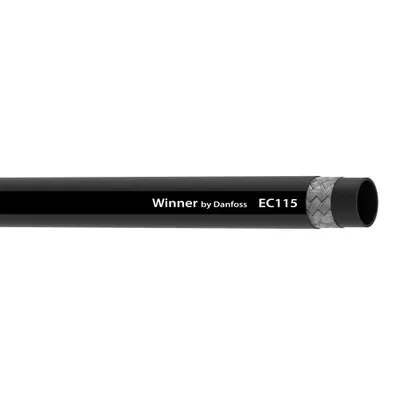

| EC115S-05L | 2.170 | 55.000 | 860 | 0.56 | 14.22 |
| EC115S-04L | 1.970 | 50.000 | 900 | 0.51 | 12.95 |
| EC115-32LMT46 | 15.750 | 400.000 | 220 | 2.40 | 60.96 |
| EC115-32L | 15.750 | 400.000 | 220 | 2.40 | 60.96 |
| EC115-24LMT46 | 11.810 | 300.000 | 300 | 1.89 | 48.01 |
| EC115-24L | 11.810 | 300.000 | 300 | 1.89 | 48.01 |
| EC115-20LMT50 | 8.270 | 210.000 | 252 | 1.61 | 40.89 |
Common to all listed parts
| Abrasion resistance | Standard |
| Certifications | USCG |
| Color | Black |
| Conductivity | Conductive |
| Cover material | Nitrile (NBR) |
| Reinforcement material | Brass plated steel wire |
| Working temperature max (C) | 100 |
| Working temperature max (F) | 212.0 |
