Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Burst pressure (psi) | Outside diameter (inch) |
|---|---|---|---|---|---|
| EC210-16LMT50 | 11.810 | 300.000 | 660 | 9600 | 1.48 |

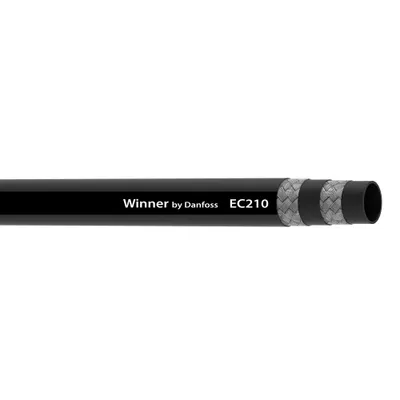

| EC210-16L | 11.810 | 300.000 | 660 | 9600 | 1.48 |
| EC210-16EL | 11.810 | 300.000 | 660 | 9600 | 1.48 |
| EC210-12LMT50 | 9.450 | 240.000 | 860 | 12500 | 1.16 |
| EC210-12L | 9.450 | 240.000 | 860 | 12500 | 1.16 |
| EC210-12EL | 9.450 | 240.000 | 860 | 12500 | 1.16 |
| EC210-10LMT50 | 7.870 | 200.000 | 1000 | 14600 | 1.00 |
| EC210-10L | 7.870 | 200.000 | 1000 | 14600 | 1.00 |
| EC210-10EL | 7.870 | 200.000 | 1000 | 14600 | 1.00 |
| EC210-08LMT50 | 7.090 | 180.000 | 1100 | 16000 | 0.88 |
| EC210-08L | 7.090 | 180.000 | 1100 | 16000 | 0.88 |
| EC210-08EL | 7.090 | 180.000 | 1100 | 16000 | 0.88 |
| EC210-08 | 7.090 | 180.000 | 1100 | 16000 | 0.88 |
| EC210-06L | 4.920 | 125.000 | 1320 | 19200 | 0.75 |
| EC210-06EL | 4.920 | 125.000 | 1320 | 19200 | 0.75 |
| EC210-05LMT50 | 4.530 | 115.000 | 1400 | 20400 | 0.66 |
| EC210-05L | 4.530 | 115.000 | 1400 | 20400 | 0.66 |
| EC210-05EL | 4.530 | 115.000 | 1400 | 20400 | 0.66 |
| EC210-04LMT50 | 3.940 | 100.000 | 1600 | 23200 | 0.59 |
| EC210-04L | 3.940 | 100.000 | 1600 | 23200 | 0.59 |
| EC210-04EL | 3.940 | 100.000 | 1600 | 23200 | 0.59 |
| EC210-04 | 3.940 | 100.000 | 1600 | 23200 | 0.59 |
| EC118-16LRL | 5.910 | 150.000 | 840 | 12200 | 1.46 |
| EC118-16L | 5.910 | 150.000 | 840 | 12200 | 1.46 |
Common to all listed parts
| Abrasion resistance | Standard |
| Color | Black |
| Construction | 2 Wire Braid |
| Cover material | Nitrile (NBR) |
| Impulse cycle (cycles) | 200000 |
| Reinforcement material | Brass plated steel wire |
| Tube material | Nitrile (NBR) |
| Working temperature max (C) | 100 |
