Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EC215-04LRLIT | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |

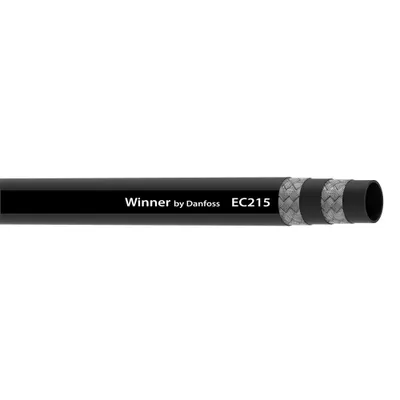

| EC215-04LRL | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-04LMT50 | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-04EL | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-04-2-ELMT50 | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-04 | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC210S-16L | 11.810 | 300.000 | 660 | 1.48 | 37.70 |
| EC210S-12L | 9.450 | 240.000 | 860 | 1.16 | 29.40 |
| EC210S-10L | 7.870 | 200.000 | 1000 | 1.00 | 25.40 |
| EC210S-08L | 7.090 | 180.000 | 1100 | 0.88 | 22.20 |
| EC210S-06L | 5.120 | 130.000 | 1320 | 0.75 | 19.00 |
| EC210S-04L | 3.940 | 100.000 | 1600 | 0.59 | 15.10 |
| EC210-48LMT46 | 35.430 | 900.000 | 240 | 3.61 | 91.80 |
| EC210-48L | 35.430 | 900.000 | 240 | 3.61 | 91.80 |
| EC210-40LMT46 | 29.920 | 760.000 | 300 | 3.14 | 79.80 |
| EC210-40L | 29.920 | 760.000 | 300 | 3.14 | 79.80 |
| EC210-32L | 24.800 | 630.000 | 320 | 2.63 | 66.90 |
| EC210-32EL | 24.800 | 630.000 | 320 | 2.63 | 66.90 |
| EC210-24LMT46 | 19.690 | 500.000 | 360 | 2.14 | 54.30 |
| EC210-24L | 19.690 | 500.000 | 360 | 2.14 | 54.30 |
| EC210-24EL | 19.690 | 500.000 | 360 | 2.14 | 54.30 |
| EC210-20LMT46 | 16.540 | 420.000 | 500 | 1.89 | 48.00 |
| EC210-20L | 16.540 | 420.000 | 500 | 1.89 | 48.00 |
| EC210-20EL | 16.540 | 420.000 | 500 | 1.89 | 48.00 |
Common to all listed parts
| Abrasion resistance | Standard |
| Color | Black |
| Construction | 2 Wire Braid |
| Cover material | Nitrile (NBR) |
| Impulse cycle (cycles) | 200000 |
| Qualified hose fittings | 1A/Z Series |
| Reinforcement material | Brass plated steel wire |
| Tube material | Nitrile (NBR) |
