Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Burst pressure (psi) | Inside diameter (inch) |
|---|---|---|---|---|---|
| EC215-16EL | 6.300 | 160.000 | 660 | 9600 | 1.00 |
| EC215-16 | 6.300 | 160.000 | 660 | 9600 | 1.00 |

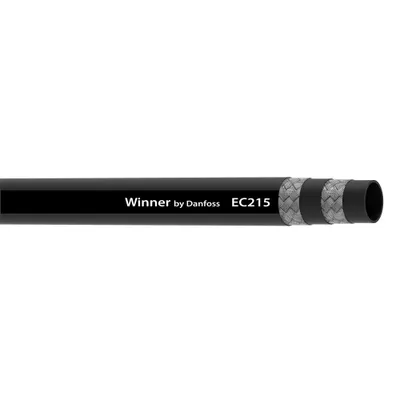

| EC215-12RL | 4.720 | 120.000 | 860 | 12500 | 0.75 |
| EC215-12LRL | 4.720 | 120.000 | 860 | 12500 | 0.75 |
| EC215-12LMT50 | 4.720 | 120.000 | 860 | 12500 | 0.75 |
| EC215-12EL | 4.720 | 120.000 | 860 | 12500 | 0.75 |
| EC215-12 | 4.720 | 120.000 | 860 | 12500 | 0.75 |
| EC215-10LRL | 3.940 | 100.000 | 1000 | 14600 | 0.62 |
| EC215-10LMT50 | 3.940 | 100.000 | 1000 | 14600 | 0.62 |
| EC215-10EL | 3.940 | 100.000 | 1000 | 14600 | 0.62 |
| EC215-08RL | 3.540 | 90.000 | 1100 | 16000 | 0.50 |
| EC215-08LRL | 3.540 | 90.000 | 1100 | 16000 | 0.50 |
| EC215-08LMT50 | 3.540 | 90.000 | 1100 | 16000 | 0.50 |
| EC215-08EL | 3.540 | 90.000 | 1100 | 16000 | 0.50 |
| EC215-08-2-ELMT50 | 3.540 | 90.000 | 1100 | 16000 | 0.50 |
| EC215-08 | 3.540 | 90.000 | 1100 | 16000 | 0.50 |
| EC215-06LRLIT | 2.560 | 65.000 | 1380 | 20000 | 0.38 |
| EC215-06LRL | 2.560 | 65.000 | 1380 | 20000 | 0.38 |
| EC215-06LMT50 | 2.560 | 65.000 | 1380 | 20000 | 0.38 |
| EC215-06EL | 2.560 | 65.000 | 1380 | 20000 | 0.38 |
| EC215-06-2-ELMT50 | 2.560 | 65.000 | 1380 | 20000 | 0.38 |
| EC215-05LMT50 | 2.170 | 55.000 | 1400 | 20400 | 0.31 |
| EC215-05EL | 2.170 | 55.000 | 1400 | 20400 | 0.31 |
| EC215-05-2-ELMT50 | 2.170 | 55.000 | 1400 | 20400 | 0.31 |
Common to all listed parts
| Abrasion resistance | Standard |
| Application | High pressure hydraulics |
| Certifications | USCG |
| Color | Black |
| Compliances | EN857 2SC |
| Conditional temp range | 32F to 158F for water |
| Conductivity | Conductive |
| Construction | 2 Wire Braid |
