Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (bar) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EC215S-12L | 4.720 | 120.000 | 860 | 1.11 | 28.19 |
| EC215S-12EL | 4.720 | 120.000 | 860 | 1.11 | 28.19 |
| EC215S-10L | 3.940 | 100.000 | 1000 | 0.96 | 24.38 |
| EC215S-10EL | 3.940 | 100.000 | 1000 | 0.96 | 24.38 |
| EC215S-08L | 3.540 | 90.000 | 1100 | 0.83 | 21.08 |
| EC215S-06L | 2.560 | 65.000 | 1380 | 0.70 | 17.78 |
| EC215S-05L | 2.170 | 55.000 | 1400 | 0.61 | 15.49 |
| EC215S-04L | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215S-04EL | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-8MT50 | 3.540 | 90.000 | 1100 | 0.82 | 20.83 |
| EC215-8 | 3.540 | 90.000 | 1100 | 0.82 | 20.83 |
| EC215-6MT50 | 2.560 | 65.000 | 1380 | 0.69 | 17.53 |
| EC215-4MT50 | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-4 | 1.970 | 50.000 | 1600 | 0.53 | 13.46 |
| EC215-32LMT46 | 15.750 | 400.000 | 380 | 2.50 | 63.50 |
| EC215-32L | 15.750 | 400.000 | 380 | 2.50 | 63.50 |
| EC215-24LMT46 | 11.810 | 300.000 | 400 | 2.01 | 51.05 |
| EC215-24L | 11.810 | 300.000 | 400 | 2.01 | 51.05 |
| EC215-20LMT46 | 9.840 | 250.000 | 500 | 1.73 | 43.94 |
| EC215-20L | 9.840 | 250.000 | 500 | 1.73 | 43.94 |
| EC215-20EL | 9.840 | 250.000 | 500 | 1.73 | 43.94 |
| EC215-16LRL | 6.300 | 160.000 | 660 | 1.41 | 35.81 |

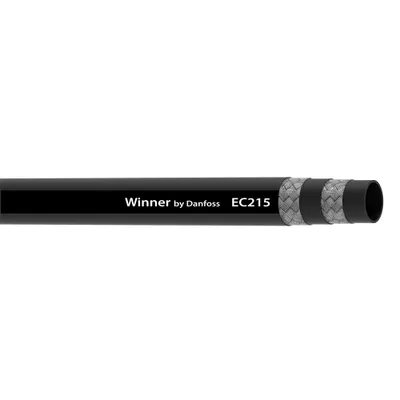

| EC215-16LMT50 | 6.300 | 160.000 | 660 | 1.41 | 35.81 |
| EC215-16L | 6.300 | 160.000 | 660 | 1.41 | 35.81 |
Common to all listed parts
| Abrasion resistance | Standard |
| Color | Black |
| Compliances | EN857 2SC |
| Conditional temp range | 32F to 158F for water |
| Conductivity | Conductive |
| Construction | 2 Wire Braid |
| Cover material | Nitrile (NBR) |
| Reinforcement material | Brass plated steel wire |
