Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (inch) | Inside diameter (mm) | Outside diameter (inch) |
|---|---|---|---|---|---|
| EC881B-20 | 8.270 | 210.000 | 1.25 | 31.80 | 1.71 |

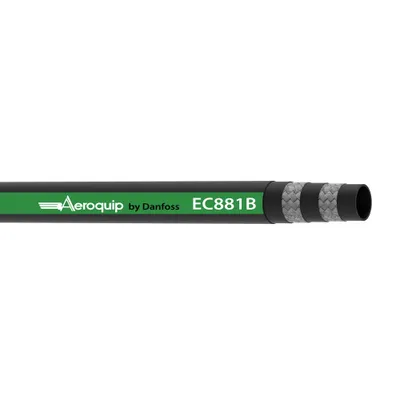

| EC881B-16MT50 | 5.910 | 150.000 | 1.00 | 25.40 | 1.36 |
| EC881B-16 | 5.910 | 150.000 | 1.00 | 25.40 | 1.36 |
| EC881B-12MT50 | 3.150 | 80.000 | 0.75 | 19.00 | 1.10 |
| EC881B-12 | 3.150 | 80.000 | 0.75 | 19.00 | 1.10 |
| EC881B-10MT50 | 2.680 | 68.000 | 0.62 | 15.90 | 0.94 |
| EC881B-10 | 2.680 | 68.000 | 0.62 | 15.90 | 0.94 |
| EC881-8RL | 2.360 | 60.000 | 0.50 | 12.70 | 0.82 |
| EC881-8R500 | 2.360 | 60.000 | 0.50 | 12.70 | 0.82 |
| EC881-8R250 | 2.360 | 60.000 | 0.50 | 12.70 | 0.82 |
| EC881-8MT50 | 2.360 | 60.000 | 0.50 | 12.70 | 0.82 |
| EC881-8MT46 | 2.360 | 60.000 | 0.50 | 12.70 | 0.82 |
| EC881-6R500 | 1.650 | 42.000 | 0.38 | 9.50 | 0.68 |
| EC881-6R250 | 1.650 | 42.000 | 0.38 | 9.50 | 0.68 |
| EC881-6MT50 | 1.650 | 42.000 | 0.38 | 9.50 | 0.68 |
| EC881-5RL | 1.500 | 38.100 | 0.31 | 7.90 | 0.61 |
| EC881-5MT50 | 1.500 | 38.100 | 0.31 | 7.90 | 0.61 |
| EC881-5 | 1.500 | 38.100 | 0.31 | 7.90 | 0.61 |
| EC881-4RL | 1.300 | 33.000 | 0.25 | 6.40 | 0.54 |
| EC881-4R500 | 1.300 | 33.000 | 0.25 | 6.40 | 0.54 |
| EC881-4R250 | 1.300 | 33.000 | 0.25 | 6.40 | 0.54 |
| EC881-4MT50 | 1.300 | 33.000 | 0.25 | 6.40 | 0.54 |

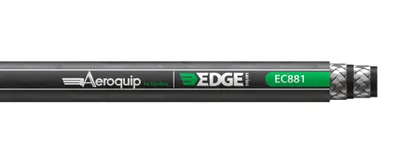

| EC881-4MT46 | 1.300 | 33.000 | 0.25 | 6.40 | 0.54 |
| EC881-32MT46 | 12.400 | 315.000 | 2.00 | 50.80 | 2.52 |
Common to all listed parts
| Abrasion resistance | Standard |
| Color | Black |
| Compliances | ISO 11237-1 |
| Conductivity | Conductive |
| Construction | 2 Wire Braid |
| Qualified hose fittings | TTC/Z Series |
| Reinforcement material | Brass plated steel wire |
| Series | EC881 Series |
