Braided hose and fittings Parts

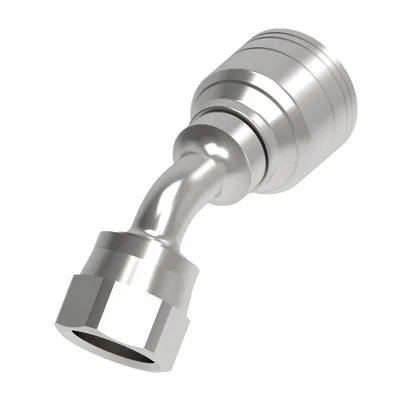

Danfoss

06Z-688

Hose End (perm) 1S/1R 45 D F SAE 37 Sw

Danfoss

06Z-686-BG

Hose End (perm) 1S/1R

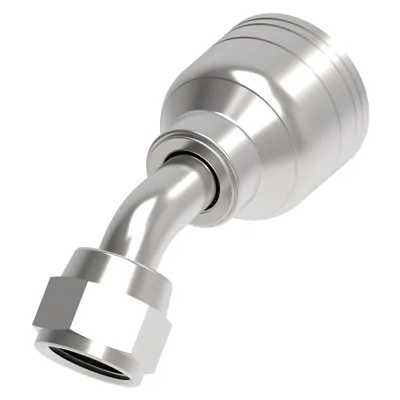

Danfoss

06Z-686

Hose End (perm) 1S/1R 45 D F SAE 37 Swvl

Danfoss

06Z-684-BG

Hose End (perm) SAE 37

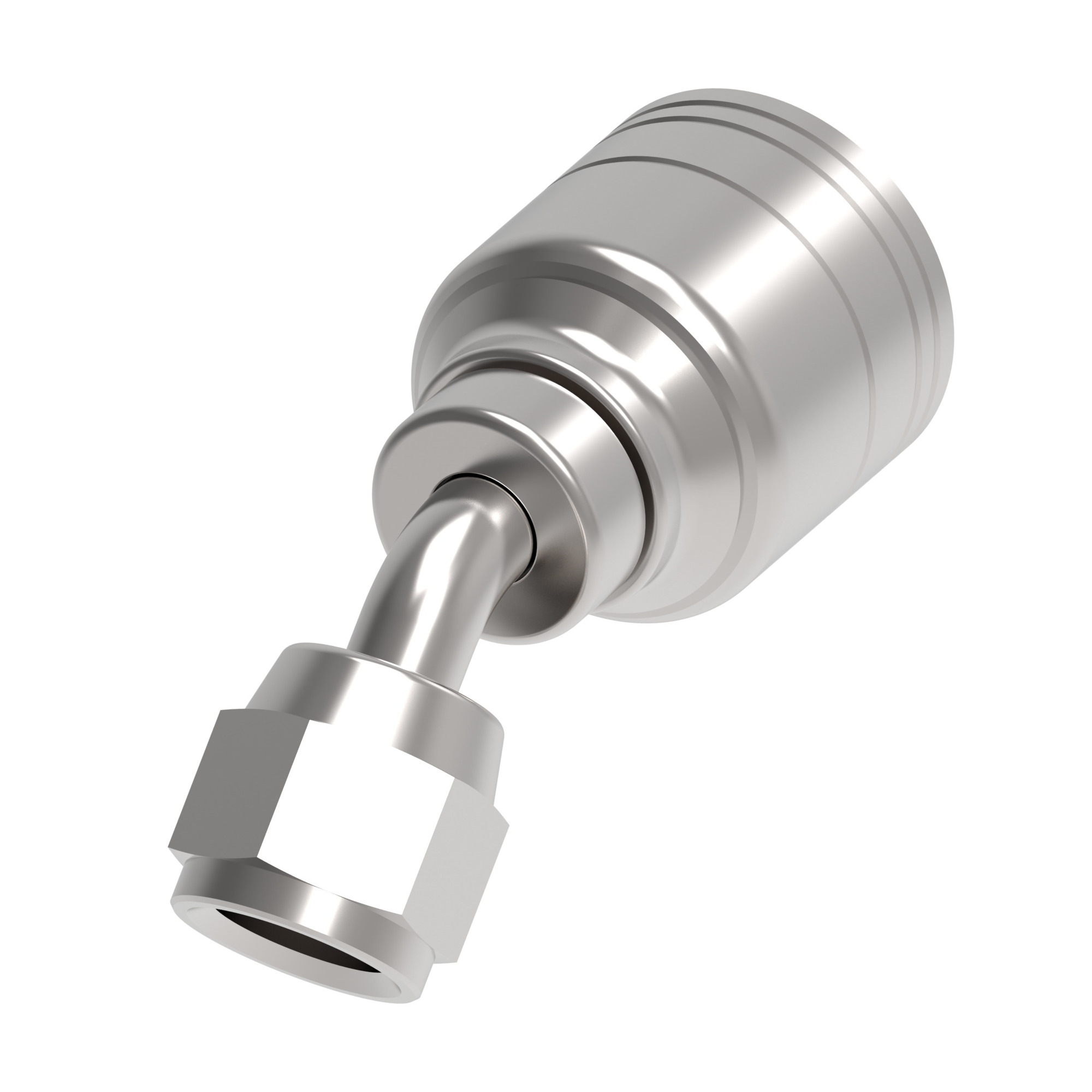

Danfoss

06Z-684

Hose End (perm) SAE 37 45 DEG, FEM SWVL

Danfoss

06Z-668-BG

Ftng (perm) R2 Female JIC 90 Deg Elbow

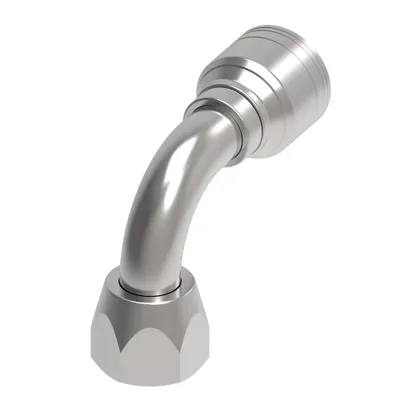

Danfoss

06Z-668

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

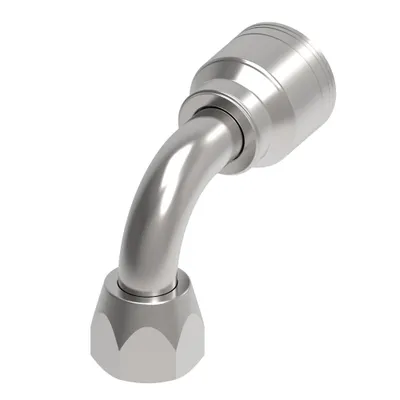

Danfoss

06Z-666-TZ

Ftng (perm) R2 Female JIC 90 Deg Elbow

Danfoss

06Z-666-BG

Ftng (perm) SAE 37 R2 F JIC 90 D Elbow

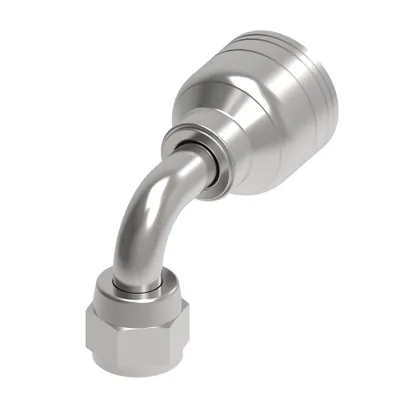

Danfoss

06Z-666

Ftng (perm), SAE 37 R2 Female JIC 90 Deg

Danfoss

06Z-664-TZ

Ftng (perm) R2 Female JIC 90 Deg Elbow

Danfoss

06Z-664-BG

Ftng (perm) 1S/1R

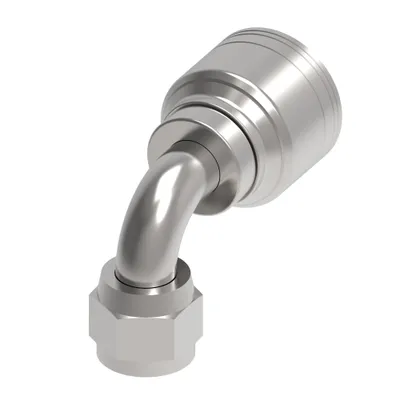

Danfoss

06Z-664

Ftng (perm) 1S/1R Female JIC 90 Deg

Danfoss

06Z-64E

Hose End (perm) 1S/1R 90DF Metric Heavy

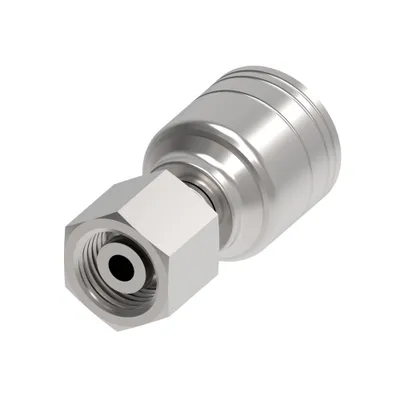

Danfoss

06Z-64C-BG

Hose End (perm) 1S/1R

Danfoss

06Z-64C

Hose End (perm) 1S/1R Str F Metric Heavy

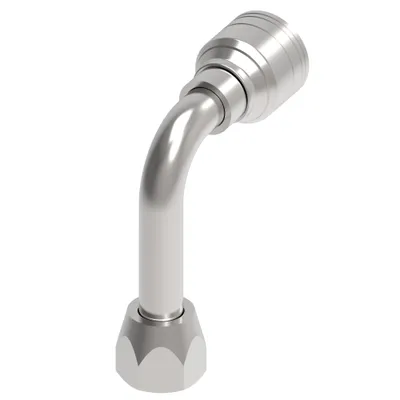

Danfoss

06Z-648-BG

Hose End (perm) 1S/1R

Danfoss

06Z-648

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

Danfoss

06Z-646-BG

Ftng (perm), SAE 37 R2

Danfoss

06Z-646

Ftng (perm), SAE 37 R2 90 D Elbow Long

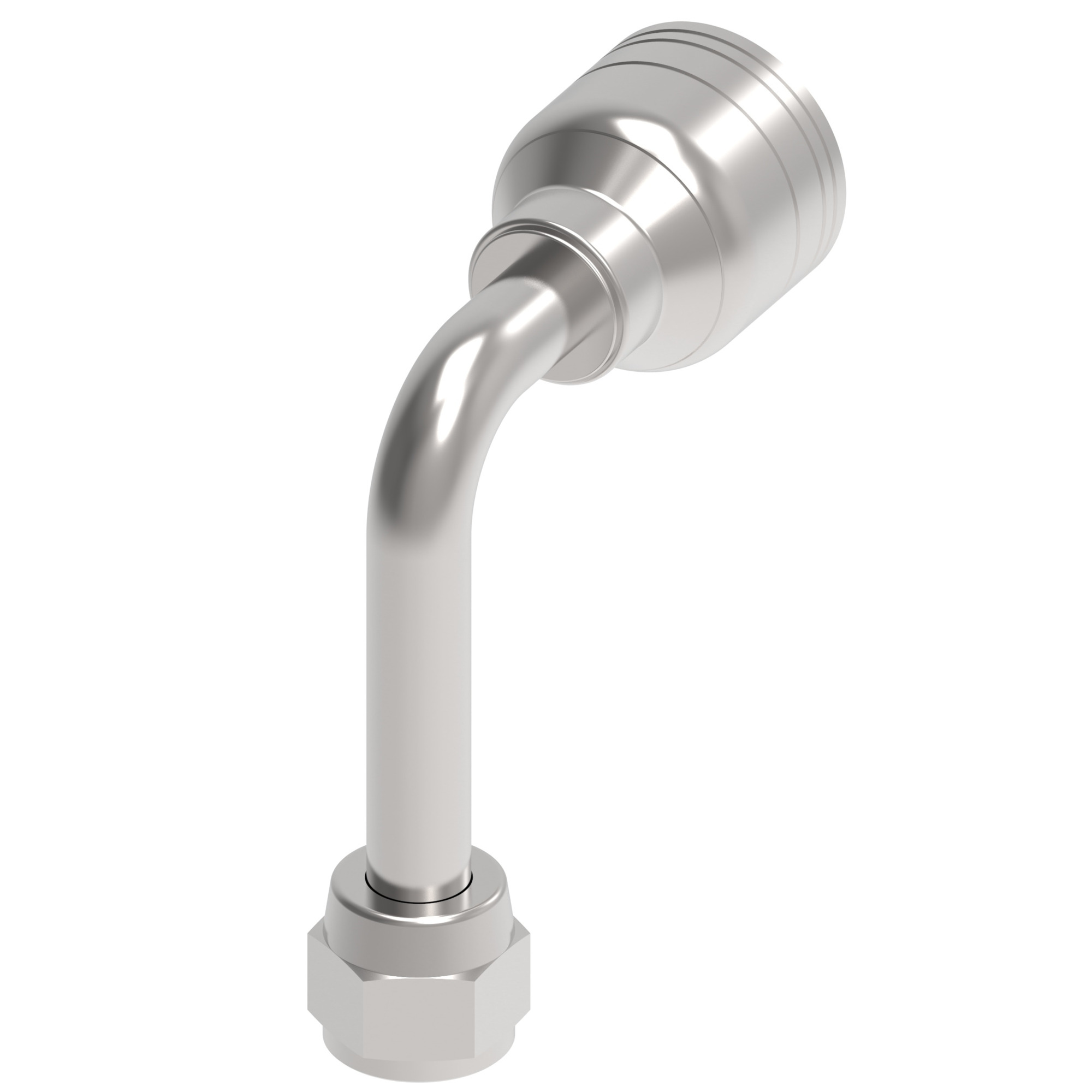

Danfoss

06Z-644-BG

Hose End (perm) SAE 37

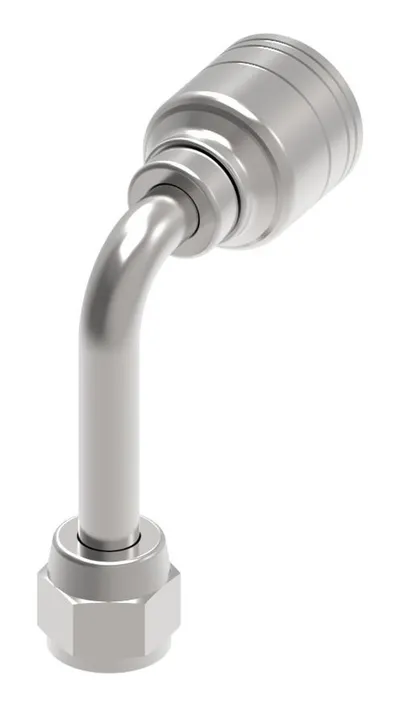

Danfoss

06Z-644

Hose End (perm) SAE 37 90 DEG, FEM SWVL

Danfoss

06Z-62E-BG

Hose End (perm) 1S/1R

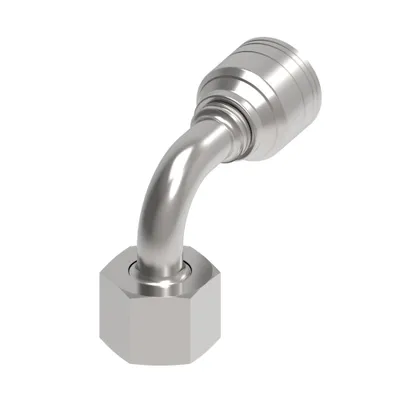

Danfoss

06Z-62E

Hose End (perm) 1S/1R 90 D F Metric Hea

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Drop dimension IN	Drop dimension MM	Hose cut off factor IN	Hose cut off factor MM
06Z-688	639789292810	0.550	14.00	1.660	42.164
06Z-686-BG	810075335750	0.000	10.00	1.310	33.274
06Z-686	639789292803	0.390	9.90	1.310	33.274
06Z-684-BG	810075335743	0.000	8.00	0.920	23.368
06Z-684	639789321152	0.330	8.40	0.920	23.368
06Z-668-BG	810075335736	1.000	28.00	1.420	36.068
06Z-668	639789292797	1.090	27.70	1.420	36.068
06Z-666-TZ	810075333985	1.000	22.00	1.220	30.988
06Z-666-BG	810075335729	1.000	21.00	1.220	30.988
06Z-666	639789292780	0.850	21.59	1.220	30.988
06Z-664-TZ	810075333862	1.000	17.00	0.980	24.892
06Z-664-BG	810075335712	1.000	17.00	0.980	24.892
06Z-664	639789320933	0.680	17.30	0.980	24.892
06Z-64E	639789294616	1.650	41.90	1.510	38.354
06Z-64C-BG	810075335705	—	—	1.240	31.496
06Z-64C	639789332295	—	—	1.240	31.496
06Z-648-BG	810075335699	2.000	62.00	1.540	39.116
06Z-648	639789292773	2.450	62.20	1.540	39.116
06Z-646-BG	810075335682	2.000	55.00	1.230	31.242
06Z-646	639789292766	2.180	55.40	1.230	31.242
06Z-644-BG	810075335675	2.000	46.00	0.980	24.892
06Z-644	639789320780	1.800	45.70	0.980	24.892
06Z-62E-BG	810075335668	1.000	35.00	1.380	35.052
06Z-62E	639789294609	1.380	35.00	1.380	35.052

Common to all listed parts

Construction Style	Crimp
Hose size	-6
Product material	Carbon steel
Thread sealant	No
