Danfoss 06Z-688

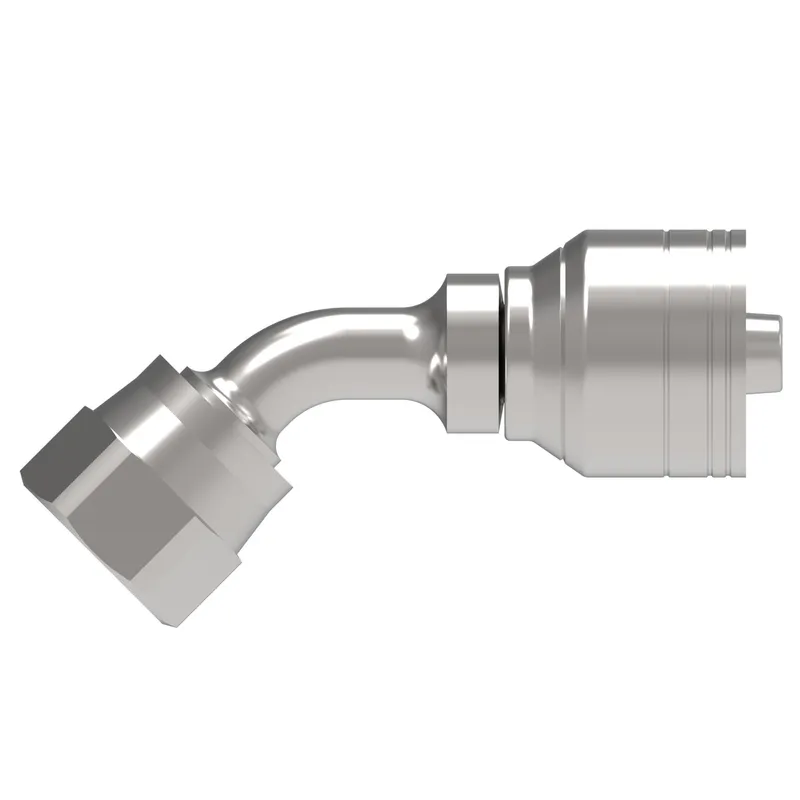

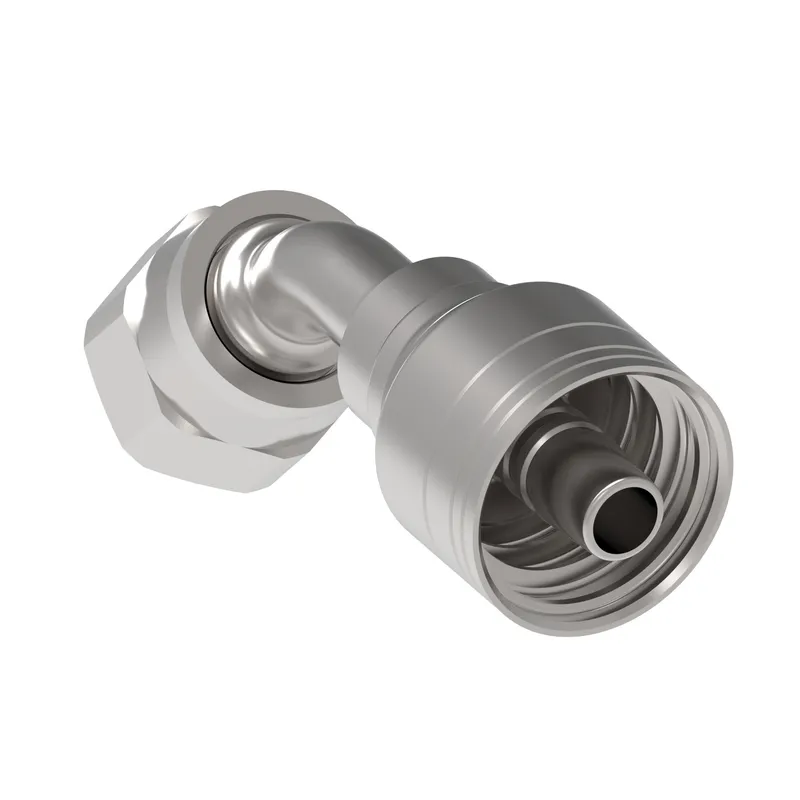

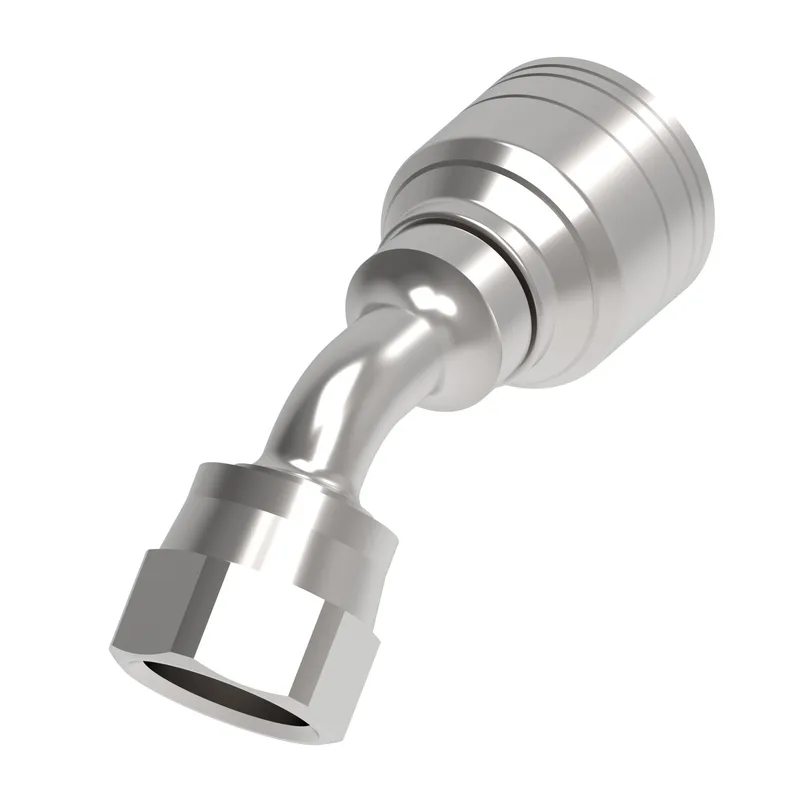

Hose End (perm) 1S/1R 45 D F SAE 37 Sw

MPN: 06Z-688
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-688?

Danfoss Hose End (perm) 1S/1R 45 D F SAE 37 Sw, manufacturer part number 06Z-688. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789292810
Angle shape	45 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.370
Compatible hose ID MM	9.398
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	0.550
Drop dimension MM	14.00
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.880
Hex size 1 MM	22.400
Hose cut off factor IN	1.660
Hose cut off factor MM	42.164
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
