Danfoss 06Z-666-BG

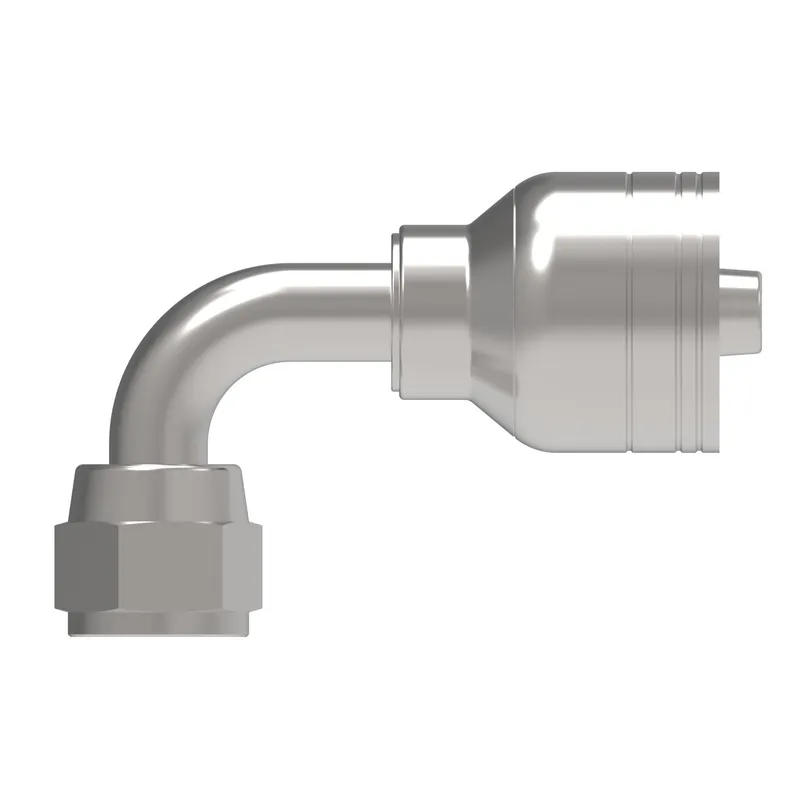

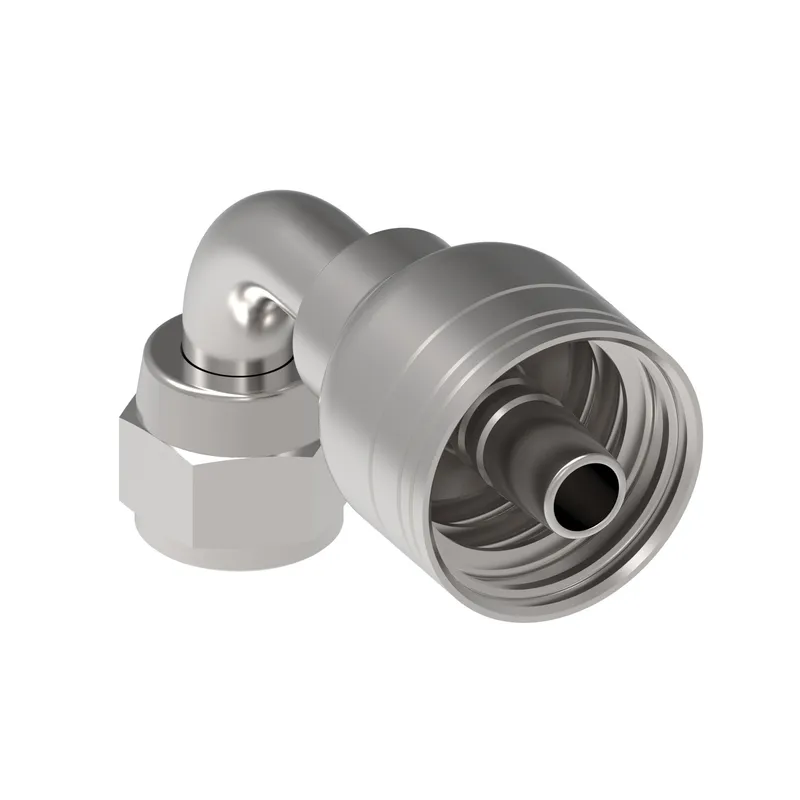

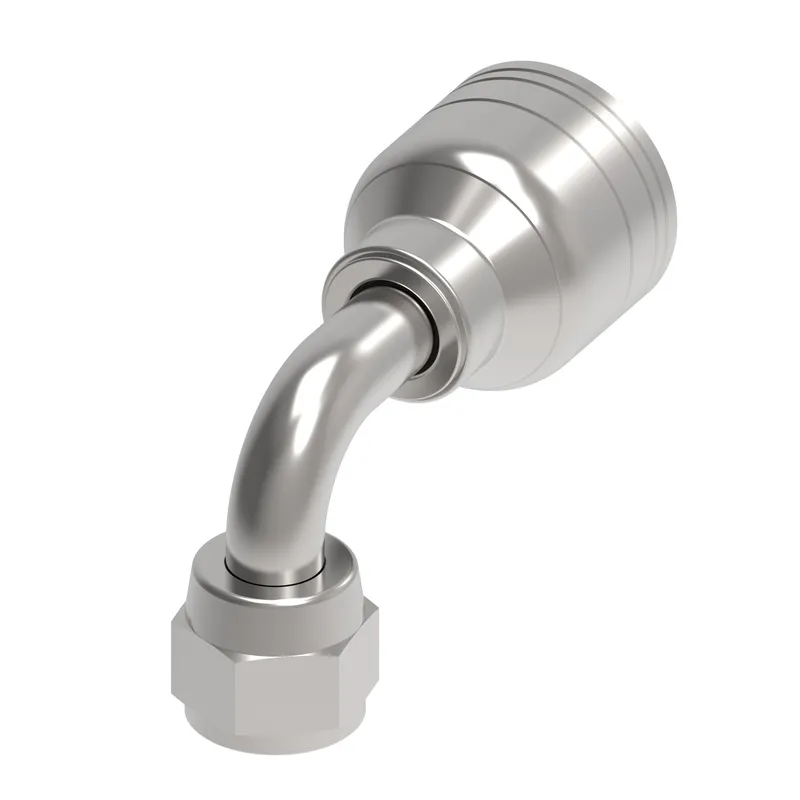

Ftng (perm) SAE 37 R2 F JIC 90 D Elbow

MPN: 06Z-666-BG
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-666-BG?

Danfoss Ftng (perm) SAE 37 R2 F JIC 90 D Elbow, manufacturer part number 06Z-666-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	810075335729
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.370
Compatible hose ID MM	9.398
Compatible tube OD IN	0.38
Compatible tube OD MM	9.525
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	1.000
Drop dimension MM	21.00
End size 1	-6
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.690
Hex size 1 MM	17.500
Hose cut off factor IN	1.220
Hose cut off factor MM	30.988
Hose size	-6
Inside diameter IN	0.2400
Inside diameter MM	6.0960
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.375
Tube OD 1 MM	9.525
