Braided hose and fittings Parts

Danfoss

06Z-BC08

Hose End (perm) 1S/1R Str Male STC

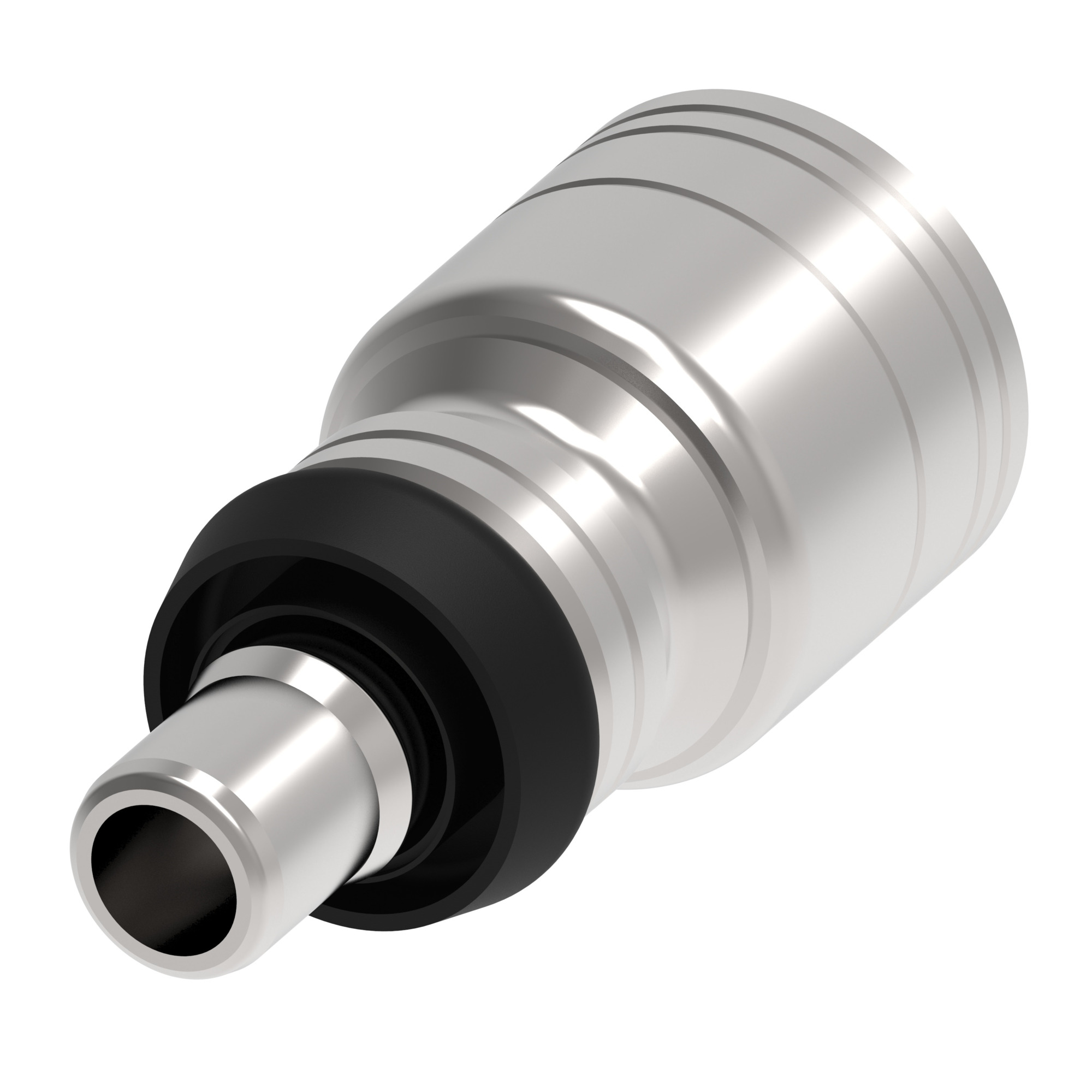

Danfoss

06Z-BC06-BG

Hose End (perm) 1S/1R

Danfoss

06Z-BC06

Hose End (perm) 1S/1R Str Male STC

Danfoss

06Z-B67-BG

Ftng (perm), SAE INV

Danfoss

06Z-B67

Ftng (perm) INV FLARE, 90 DEG, STR MALE

Danfoss

06Z-B66-BG

Hose End (perm) 1S/1R

Danfoss

06Z-B66

Hose End (perm) 1S/1R 90 D M. INVERTED

Danfoss

06Z-B65-BG

Hose End (perm) 1S/1R

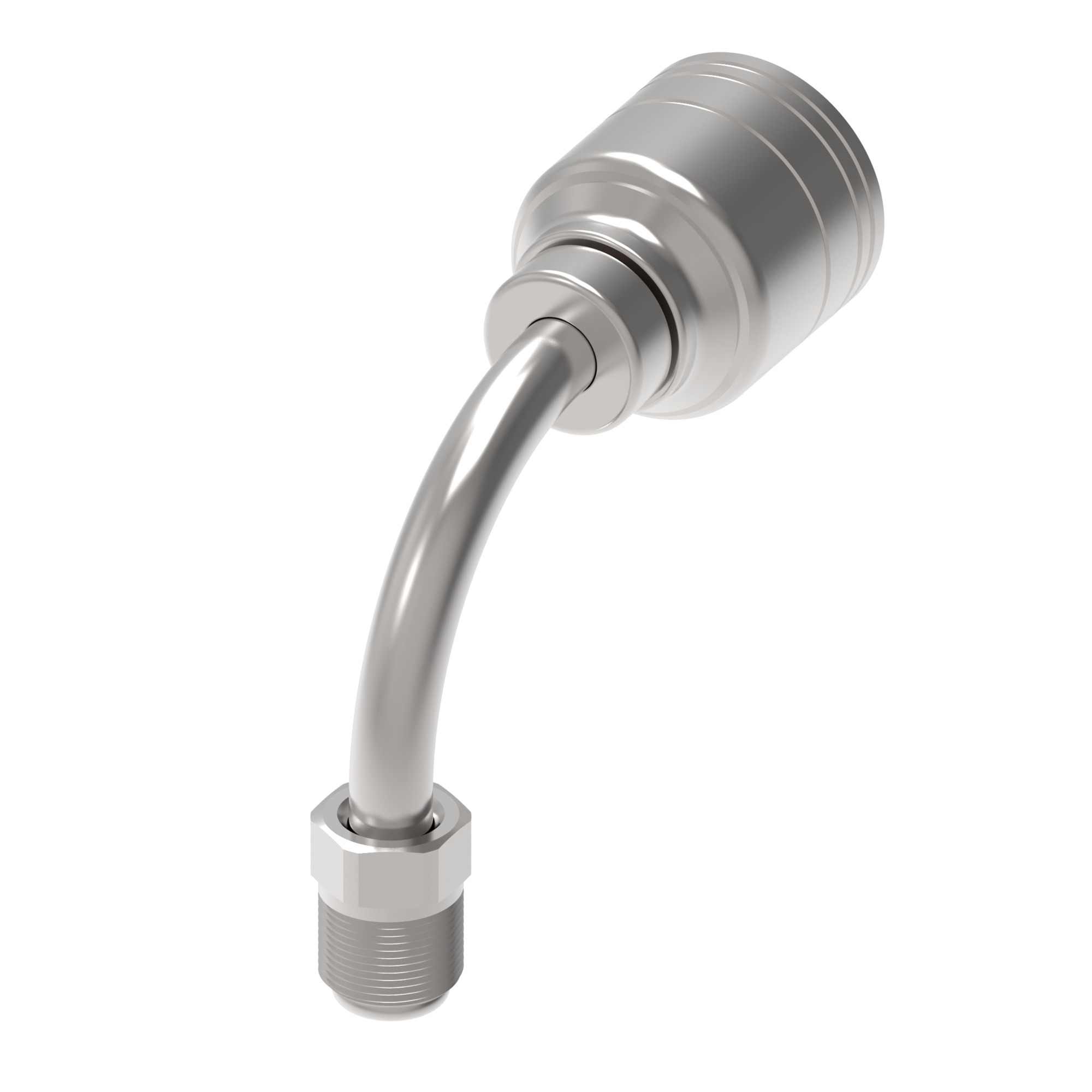

Danfoss

06Z-B65

Hose End (perm) 1S/1R 90 D M INVERTED

Danfoss

06Z-B64-BG

Ftng (perm), SAE INV

Danfoss

06Z-B64

Ftng (perm) INV FLARE, 90 DEG, STR MALE

Danfoss

06Z-B47

Ftng (perm) INV FLARE, 45 DEG, STR MALE

Danfoss

06Z-B46-BG

Hose End (perm) 1S/1R

Danfoss

06Z-B46

Hose End (perm) 1S/1R 45 D M INVERTED

Danfoss

06Z-B45-BG

Ftng (perm), SAE INV

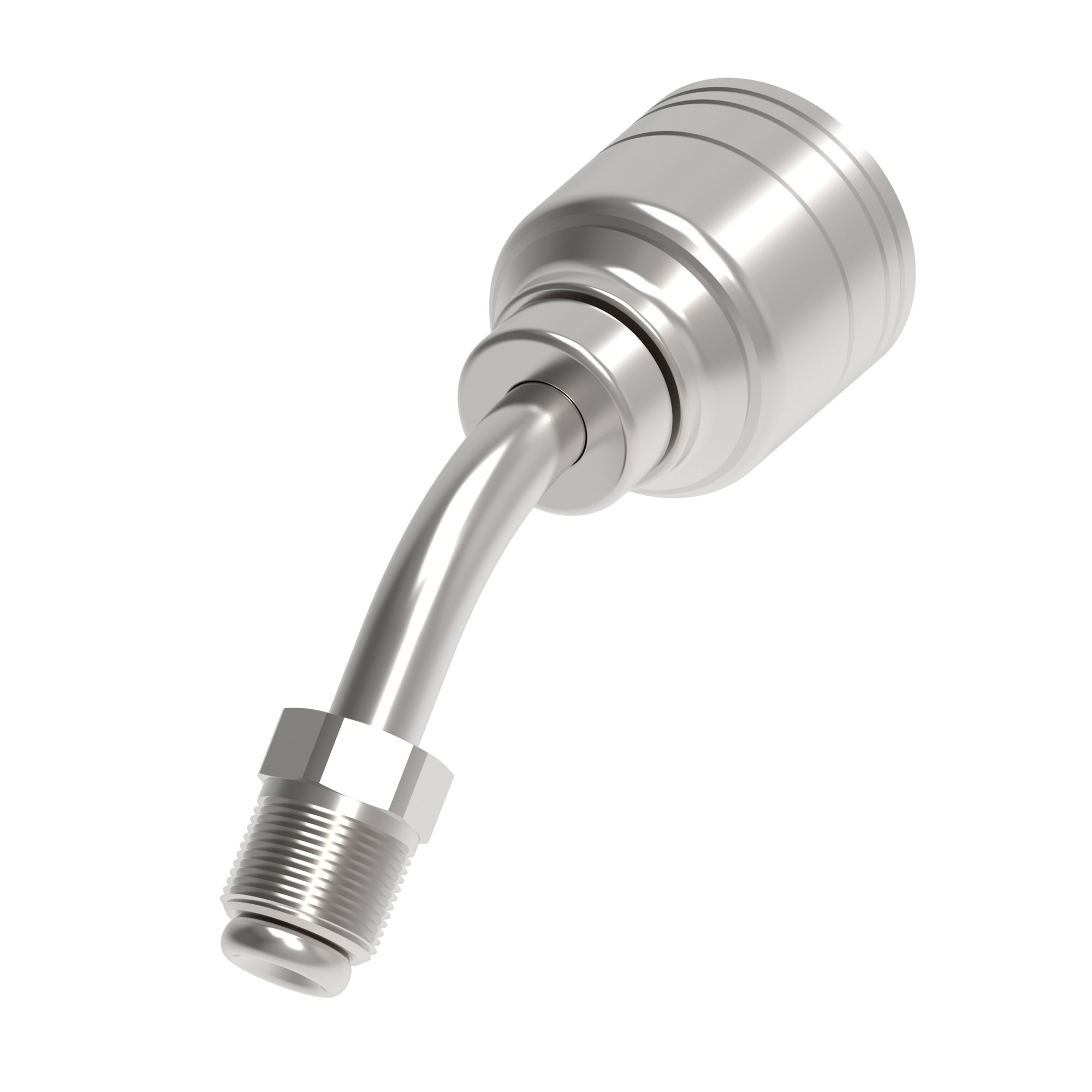

Danfoss

06Z-B45

Ftng (perm) INV FLARE, 45 DEG, STR MALE

Danfoss

06Z-B07-BG

Ftng (perm), SAE INV

Danfoss

06Z-B07

Ftng (perm), SAE INV FLARE, STR MALE

Danfoss

06Z-B06-BG

Hose End (perm) 1S/1R

Danfoss

06Z-B06

Hose End (perm) 1S/1R Str M. INVERTED

Danfoss

06Z-B05-BG

Hose End (perm) 1S/1R

Danfoss

06Z-B05

Hose End (perm) 1S/1R Str M. INVERTED

Danfoss

06Z-B04-BG

Ftng (perm), SAE INV

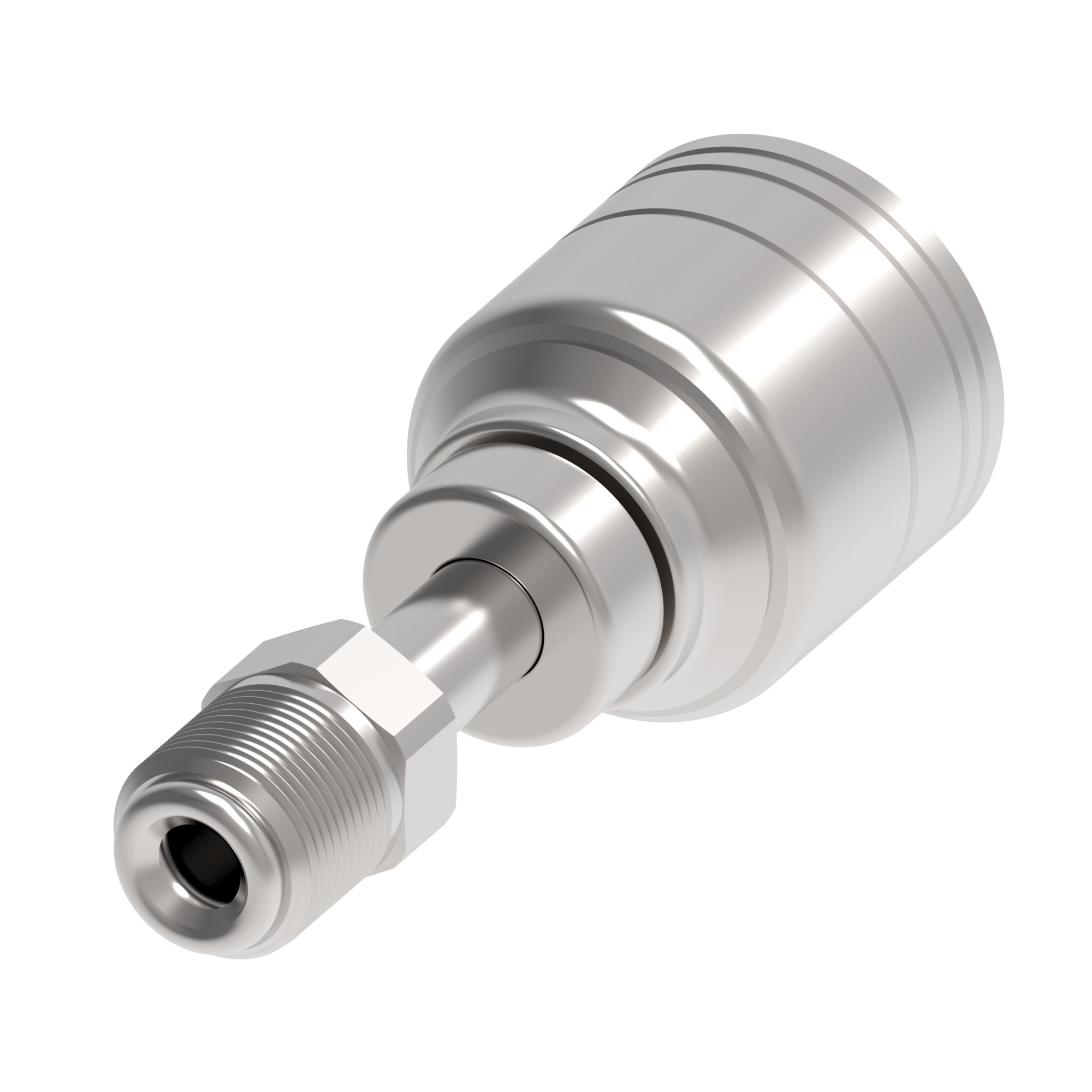

Danfoss

06Z-B04

Ftng (perm), SAE INV FLARE, STR MALE

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hose cut off factor IN	Hose cut off factor MM	Hex size 1 IN	Hex size 1 MM
06Z-BC08	639789293435	1.390	35.306	—	—
06Z-BC06-BG	—	1.190	30.226	—	—
06Z-BC06	639789293428	1.190	30.226	—	—
06Z-B67-BG	810075335958	1.610	40.894	0.690	17.500
06Z-B67	639789321756	1.610	40.894	0.690	17.500
06Z-B66-BG	810075335941	1.510	38.354	0.630	16.000
06Z-B66	639789292896	1.510	38.354	0.630	16.000
06Z-B65-BG	810075335934	1.510	38.354	0.500	12.700
06Z-B65	639789294654	1.510	38.354	0.500	12.700
06Z-B64-BG	—	1.440	36.576	0.440	11.200
06Z-B64	639789320889	1.440	36.576	0.440	11.200
06Z-B47	639789321749	1.890	48.006	0.690	17.500
06Z-B46-BG	810075335927	1.890	48.006	0.630	16.000
06Z-B46	639789292889	1.890	48.006	0.630	16.000
06Z-B45-BG	810075335910	1.890	48.006	0.500	12.700
06Z-B45	639789320216	1.890	48.006	0.500	12.700
06Z-B07-BG	810075335897	1.600	40.640	0.690	17.500
06Z-B07	639789321084	1.600	40.640	0.690	17.500
06Z-B06-BG	810075335880	1.610	40.894	0.630	16.000
06Z-B06	639789292872	1.610	40.894	0.630	16.000
06Z-B05-BG	810075335873	1.610	40.894	0.500	12.700
06Z-B05	639789294647	1.610	40.894	0.500	12.700
06Z-B04-BG	810075335866	1.530	38.862	0.440	11.200
06Z-B04	639789320902	1.530	38.862	0.440	11.200

Common to all listed parts

Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-6
Product material	Carbon steel
Thread sealant	No
