Danfoss 06Z-R66

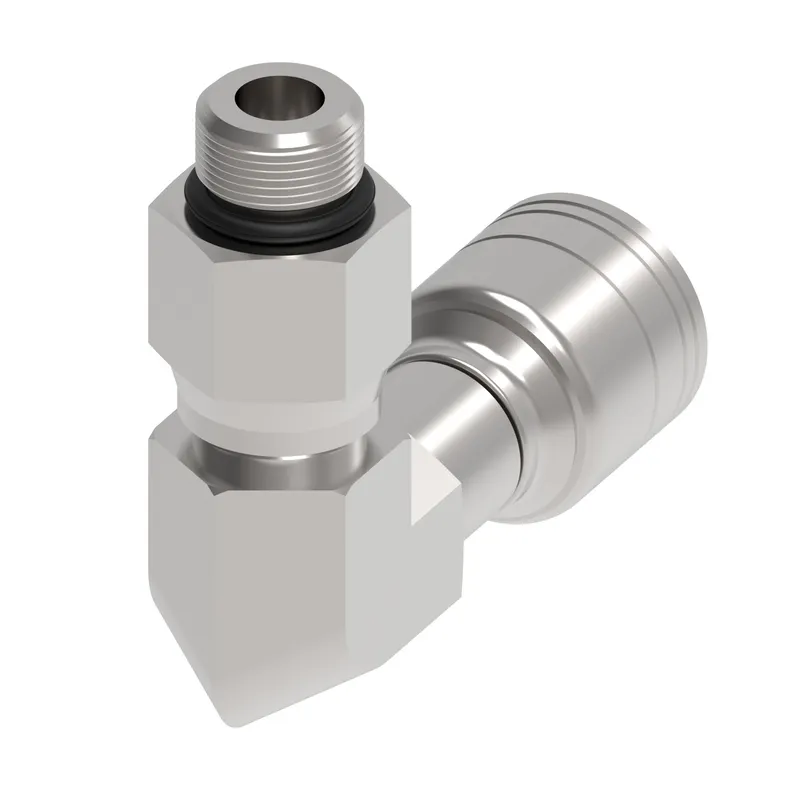

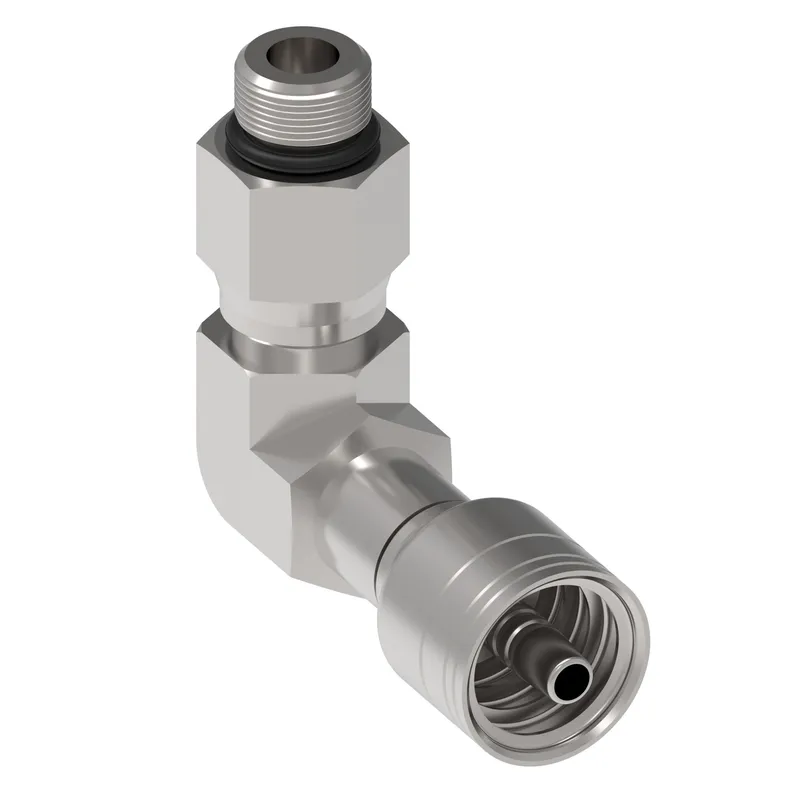

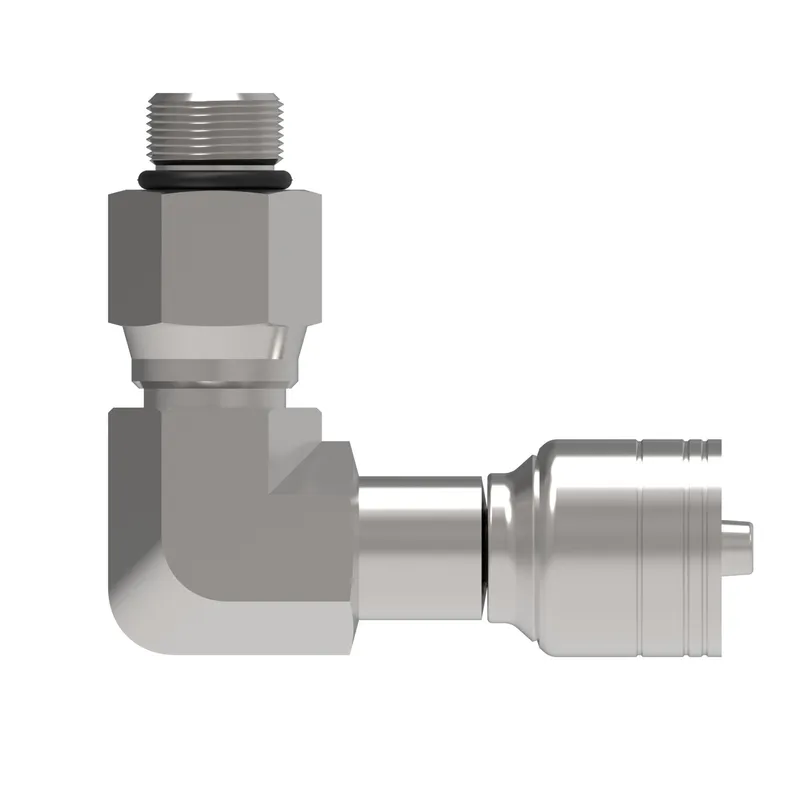

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

MPN: 06Z-R66
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-R66?

Danfoss Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL, manufacturer part number 06Z-R66. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789320964
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.370
Compatible hose ID MM	9.398
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	1.870
Drop dimension MM	47.50
End size 1	-6
End type 1	Male ORB ISO 11926-3
Finish plating	Dura-Kote
Hex size 1 IN	0.880
Hex size 1 MM	22.400
Hex size 2 IN	0.750
Hex size 2 MM	19.100
Hose cut off factor IN	1.330
Hose cut off factor MM	33.782
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
