Hose End (perm) 1S/1R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10Z-610-BG be shipped?
10Z-610-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10Z-610-BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10Z-610-BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10Z-610-BG, subject to availability and destination.

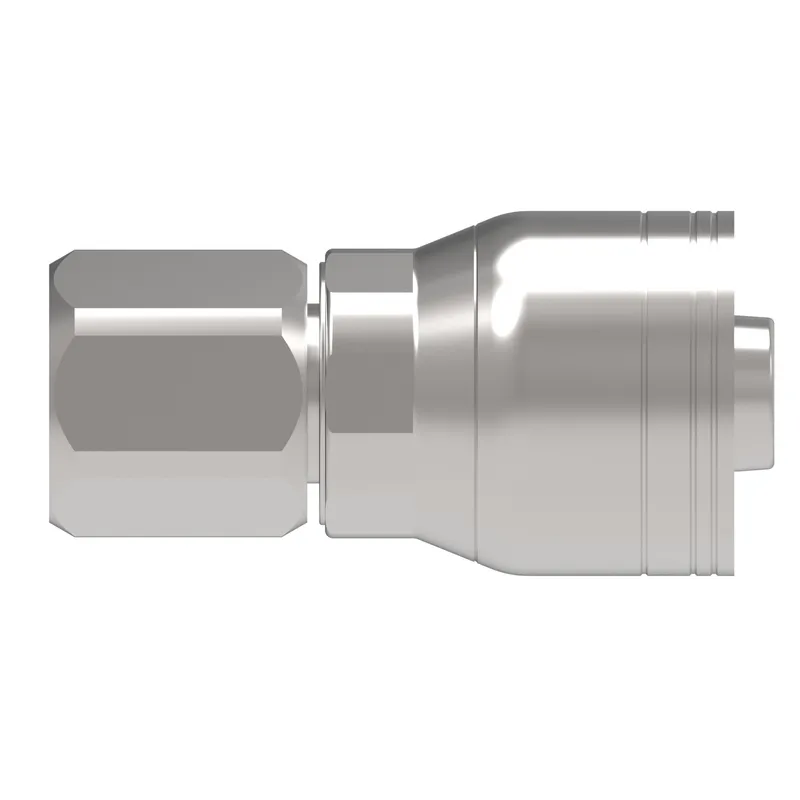

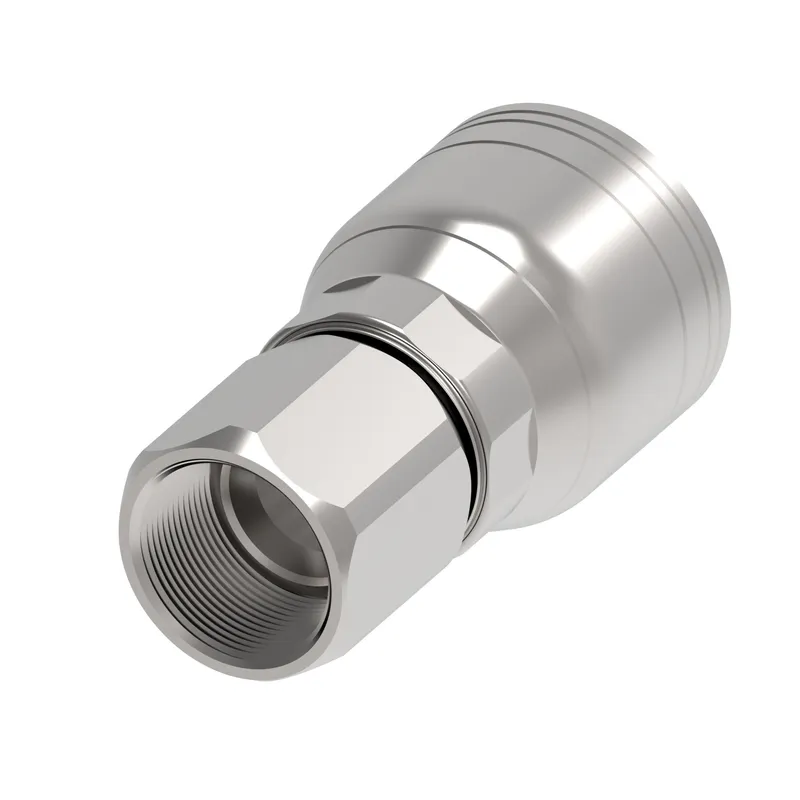

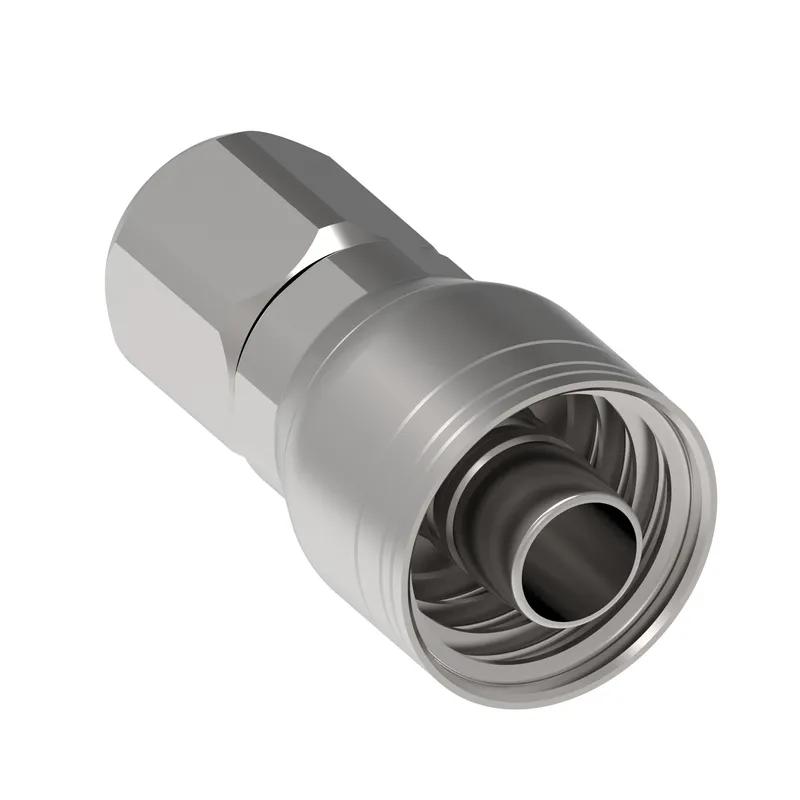

Danfoss Hose End (perm) 1S/1R, manufacturer part number 10Z-610-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 810075337044 |
| Angle shape | Straight |
| Brand | Weatherhead by Danfoss |
| Compatible hose ID IN | 0.630 |
| Compatible hose ID MM | 16.002 |
| Compatible tube OD IN | 0.63 |
| Compatible tube OD MM | 16.002 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| End size 1 | -10 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.940 |
| Hex size 1 MM | 23.9 |
| Hex size 2 IN | 1.000 |
| Hex size 2 MM | 25.4 |
| Hose cut off factor IN | 1.610 |
| Hose cut off factor MM | 40.894 |
| Hose size | -10 |
| Inside diameter IN | 0.500 |
| Inside diameter MM | 12.700 |
| Product material | Carbon steel |
| Thread sealant | No |
| Tube OD 1 IN | 0.630 |
| Tube OD 1 MM | 16.002 |
More Danfoss (Drives) parts
Available on requestHose End (perm) 1S/1R Str F SAE 37 Swi

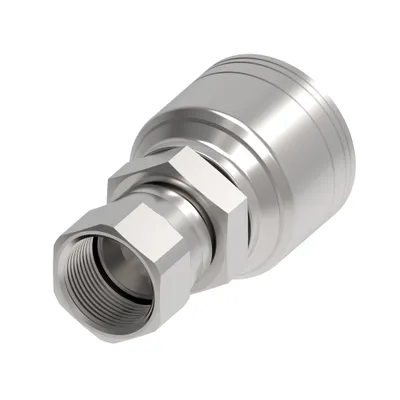

Available on requestHose End (perm) 1S/1R
Available on requestHose End (perm) 1S/1R Str F SAE 37 Swvl
Available on requestHose End (perm) 1S/1R Str F SAE 37 Swvl
Available on requestFtng (perm), SAE 37 R2 Female JIC
Available on requestHose End (perm) 1S/1R Str F SAE 37 Swi
Available on requestHose End (perm) 1S/1R

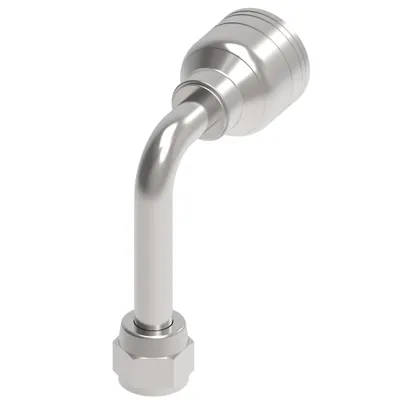

Available on requestHose End (perm) 1S/1R 90 D F SAE 37 Sw
