Braided hose and fittings Parts

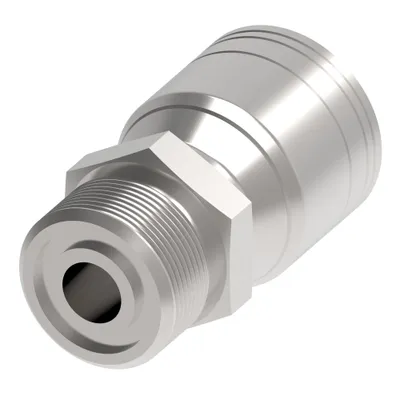

Danfoss

1A13MG6

HOSE FTG, 1A/06, GAZ-M/05, CS, STR

Danfoss

1A13MG5

HOSE FTG, 1A/05, GAZ-M/05, CS, STR

Danfoss

1A13GG6

HOSE FTG, 1A/06, GG/05, CS, STR

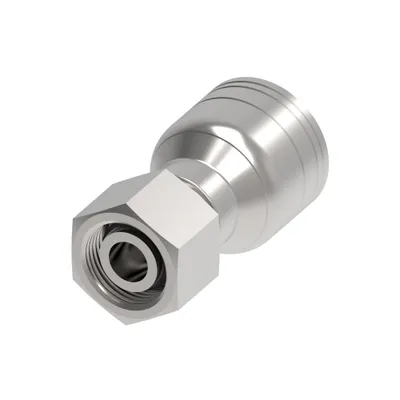

Danfoss

1A13GG5

HOSE FTG, 1A/05, GG/05, CS, STR

Danfoss

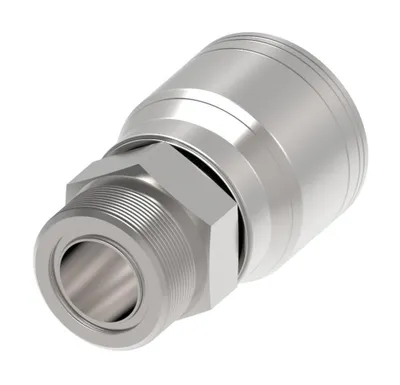

1A12MR12

HOSE FTG, 1A/12, ORS-M/12, CS, STR

Danfoss

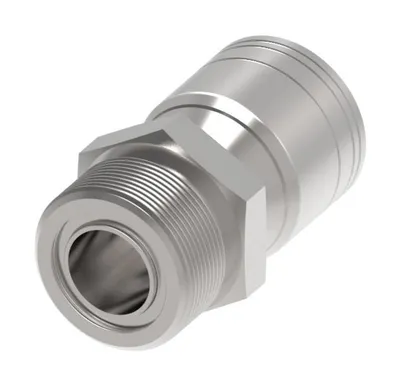

1A12MR10

HOSE FTG, 1A/10, ORS-M/12, CS, STR

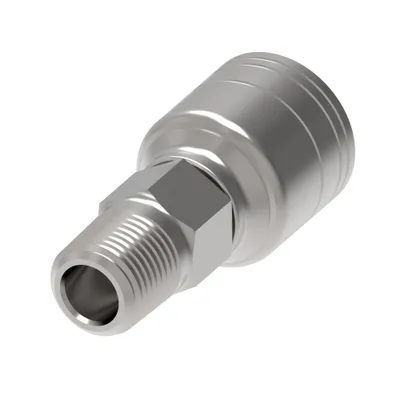

Danfoss

1A12MP8

HOSE FTG, 1A/08, NPTF-M/12, CS, STR

Danfoss

1A12MP16

HOSE FTG, 1A/16, NPTF-M/12, CS, STR

Danfoss

1A12MP12

HOSE FTG, 1A/12, NPTF-M/12, CS, STR

Danfoss

1A12MP10

HOSE FTG, 1A/10, NPTF-M/12, CS, STR

Danfoss

1A12MJ8

HOSE FTG, 1A/08, JIC-M/12, CS, STR

Danfoss

1A12MJ12

HOSE FTG, 1A/12, JIC-M/12, CS, STR

Danfoss

1A12MJ10

HOSE FTG, 1A/10, JIC-M/12, CS, STR

Danfoss

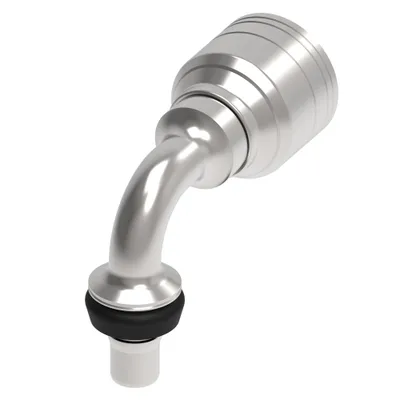

1A12MCB12

HOSE FTG, 1A/12, STC-M/12, CS, 90D

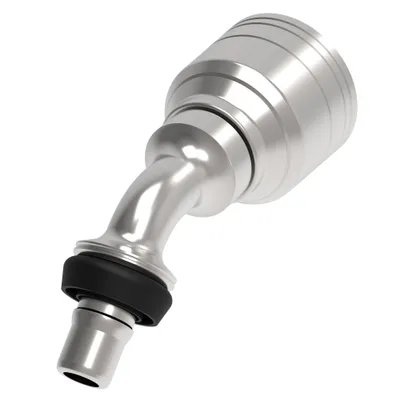

Danfoss

1A12MCA12

HOSE FTG, 1A/12, STC-M/12, CS, 45D

Danfoss

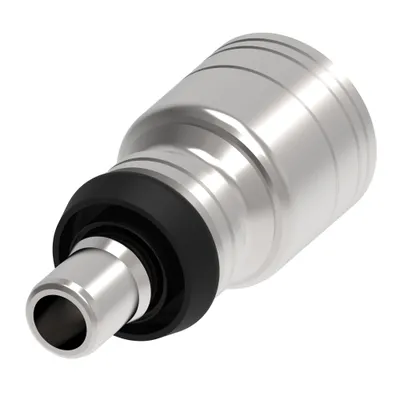

1A12MC12

HOSE FTG, 1A/12, STC-M/12, CS, STR

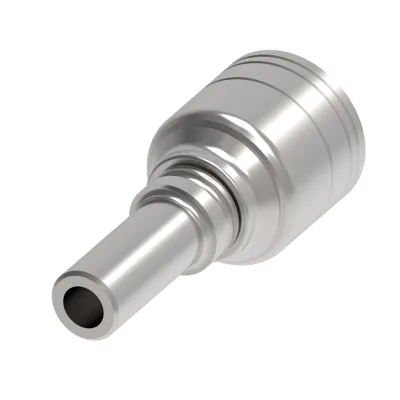

Danfoss

1A12LM6

HOSE FTG, 1A/06, STPIPE/12, CS, STR

Danfoss

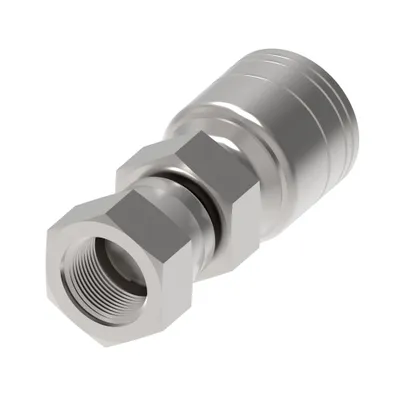

1A12KF12

HOSE FTG, 1A/12, KSF/12, CS, STR

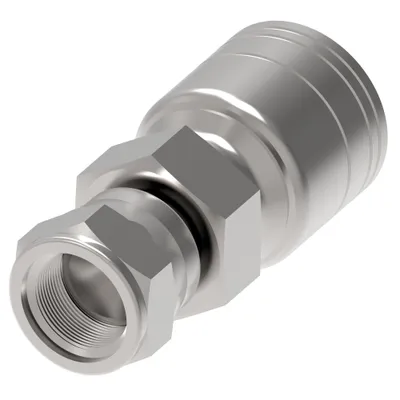

Danfoss

1A12JF12

HOSE FTG, 1A/12, KSF/12, CS, STR

Danfoss

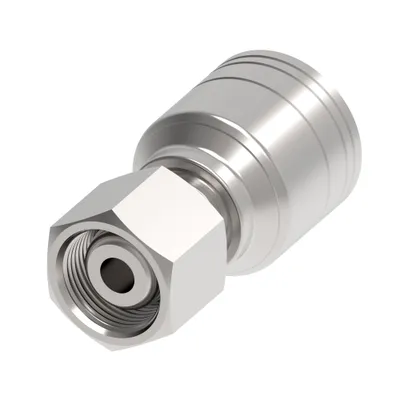

1A12GM6

HOSE FTG, 1A/06, GM/12, CS, STR

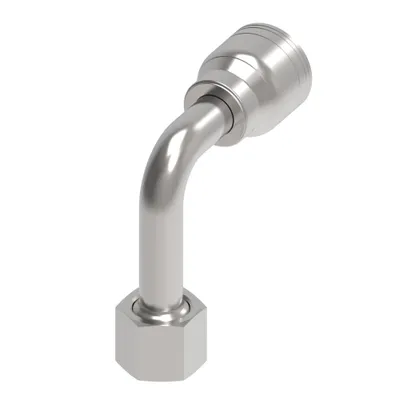

Danfoss

1A12FRC12

HOSE FTG, 1A/12, ORS-F/12, CS, 90D

Danfoss

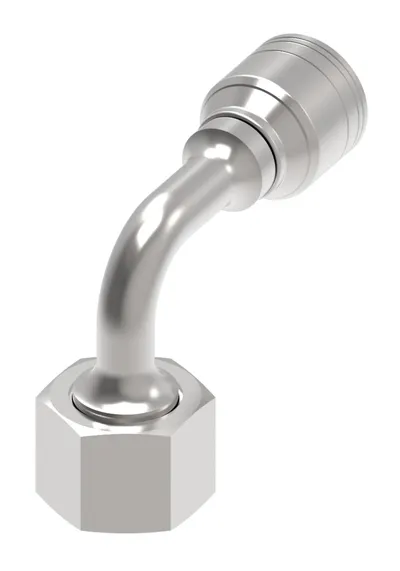

1A12FRB8

HOSE FTG, 1A/08, ORS-F/12, CS, 90D

Danfoss

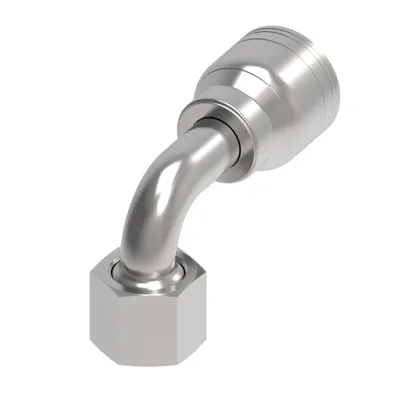

1A12FRB12

HOSE FTG, 1A/12, ORS-F/12, CS, 90D

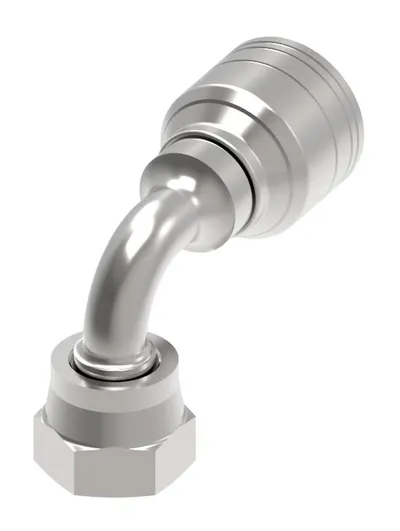

Danfoss

1A12FRB10

HOSE FTG, 1A/10, ORS-F/12, CS, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A13MG6	1.945	49.400	24.100	1.945	49.400
1A13MG5	1.854	47.100	23.200	1.854	47.100
1A13GG6	2.011	51.100	25.800	2.010	51.054
1A13GG5	1.909	48.500	24.600	2.106	53.500
1A12MR12	2.770	70.400	39.000	2.630	66.802
1A12MR10	2.390	60.800	31.400	2.394	60.800
1A12MP8	2.400	60.900	35.400	2.400	60.960
1A12MP16	3.000	76.200	42.400	3.025	76.830
1A12MP12	2.710	68.900	41.800	2.710	68.834
1A12MP10	2.430	61.700	35.600	2.430	61.722
1A12MJ8	2.430	61.600	36.200	2.590	65.786
1A12MJ12	2.960	75.300	43.900	2.935	74.550
1A12MJ10	2.460	62.400	36.400	2.589	65.750
1A12MCB12	3.370	85.600	58.500	4.070	103.378
1A12MCA12	4.220	107.100	80.000	4.780	121.412
1A12MC12	2.810	71.300	44.400	2.940	74.676
1A12LM6	2.380	60.400	35.100	2.380	60.452
1A12KF12	3.090	78.400	51.300	3.210	81.534
1A12JF12	2.760	70.200	43.100	2.880	73.152
1A12GM6	1.933	49.100	23.800	1.933	49.100
1A12FRC12	3.550	90.100	58.400	4.330	109.982
1A12FRB8	3.210	81.600	56.100	3.910	99.314
1A12FRB12	3.550	90.100	58.400	4.200	106.680
1A12FRB10	3.310	84.200	58.100	4.154	105.500

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
