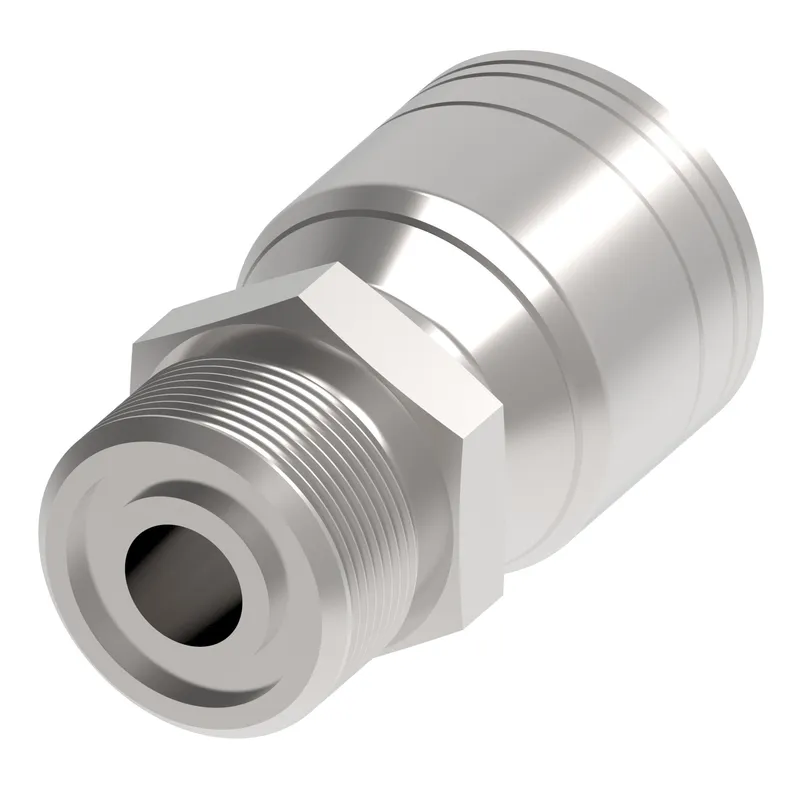

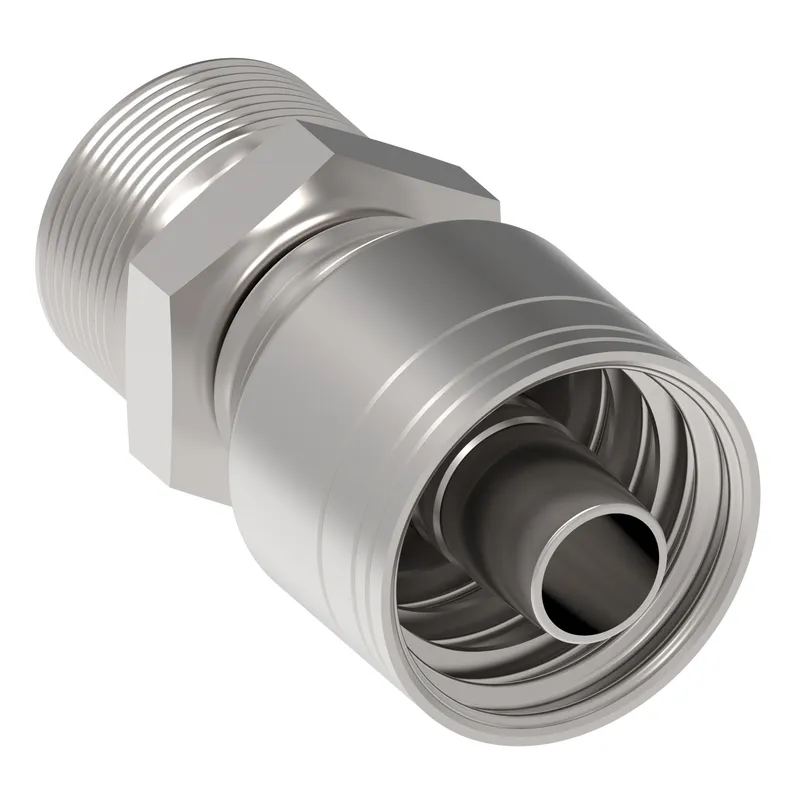

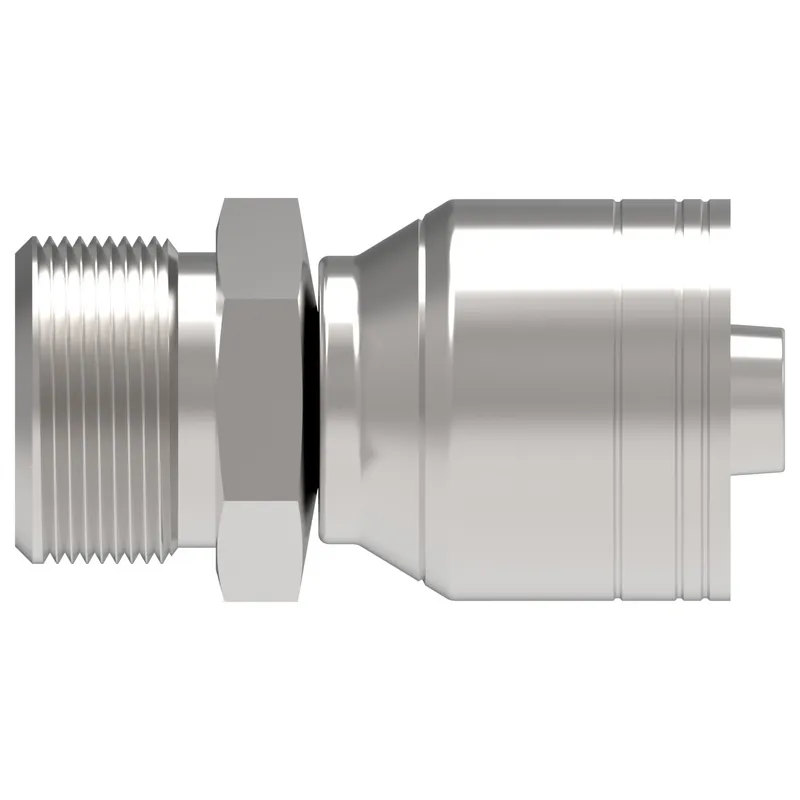

HOSE FTG, 1A/06, GAZ-M/05, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1A13MG6 be shipped?
1A13MG6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1A13MG6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1A13MG6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A13MG6, subject to availability and destination.
Danfoss HOSE FTG, 1A/06, GAZ-M/05, CS, STR, manufacturer part number 1A13MG6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.945 |
| A dimension MM | 49.400 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.380 |
| Compatible hose ID MM | 9.500 |
| Construction Style | Crimp |
| End Type 1 | 24 deg. Tube port GAZ |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.866 |
| Hex size 1 MM | 22.000 |
| Hex size 2 MM | 22.000 |
| Hose cut off factor IN | 0.949 |
| Hose cut off factor MM | 24.100 |
| Hose size | -6 |
| Inside diameter IN | 0.263 |
| Inside diameter MM | 6.700 |
| Product height in | 1.067 |
| Product height mm | 27.100 |
| Product length in | 1.945 |
| Product length mm | 49.400 |
| Product material | Carbon steel |
| Product width in | 1.067 |
| Product width mm | 27.1 |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | 1A/Z Series |
| Thread sealant | No |
| Thread size 1 | M20x1.5 |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
