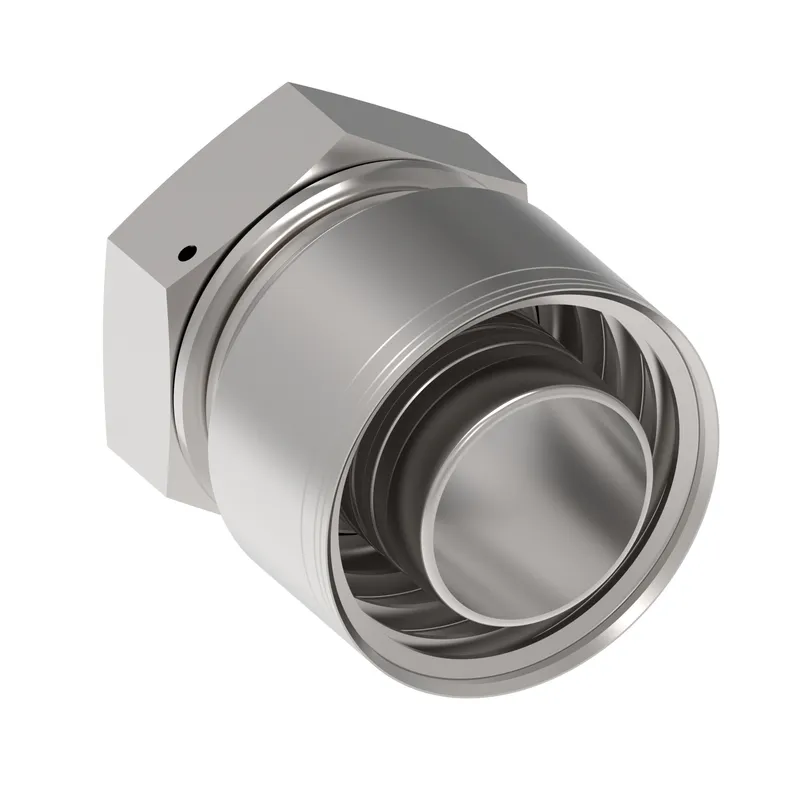

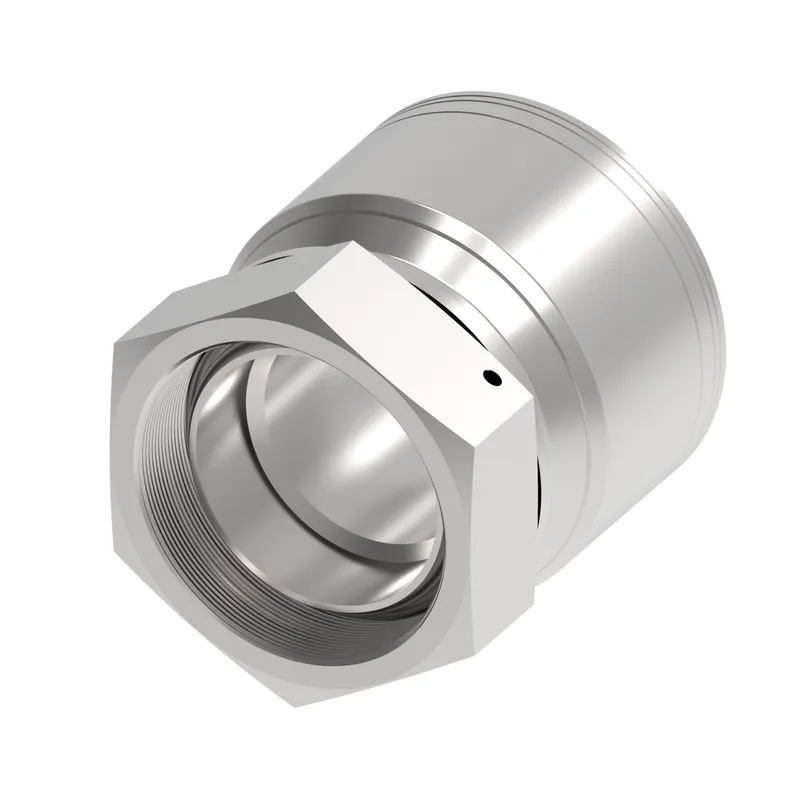

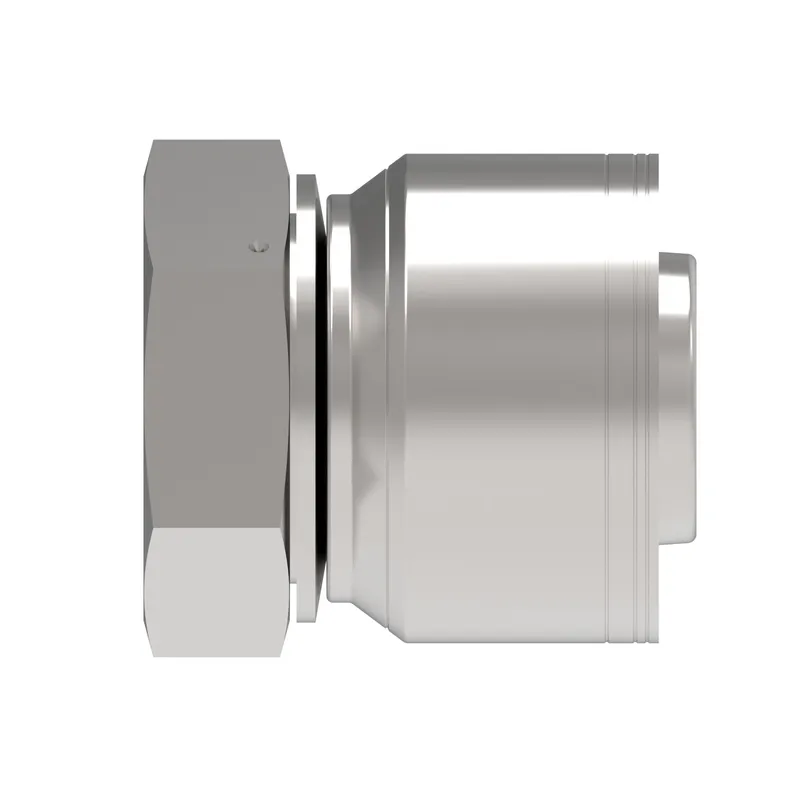

Danfoss HOSE FTG, 1A/32, AD/50, CS, STR, manufacturer part number 1A50AD32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.260 |
| A dimension MM | 82.900 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | 2661 (Size dependent), FC310, FC510, FC579, FC611, FC619 (Size dependent), FC639, FC693, FC735 (Size dependent), FC839B, GH120, GH194, GH195, GH663, GH681, GH781, GH793 |
| Construction Style | Crimp |
| End Type 1 | Female globeseal 60 swivel |
| Finish plating | Dura-Kote |
| Hex size 2 IN | 2.952 |
| Hex size 2 MM | 74.981 |
| Hose cut off factor IN | 1.210 |
| Hose cut off factor MM | 30.700 |
| Hose size | -32 |
| Inside diameter IN | 1.750 |
| Inside diameter MM | 44.400 |
| Product height in | 3.400 |
| Product height mm | 86.360 |
| Product length in | 3.795 |
| Product length mm | 96.393 |
| Product material | Carbon steel |
| Product width in | 3.224 |
| Product width mm | 81.89 |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | 1A/Z Series |
| Thread sealant | No |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -46 |
| Working temperature min F | -50 |
