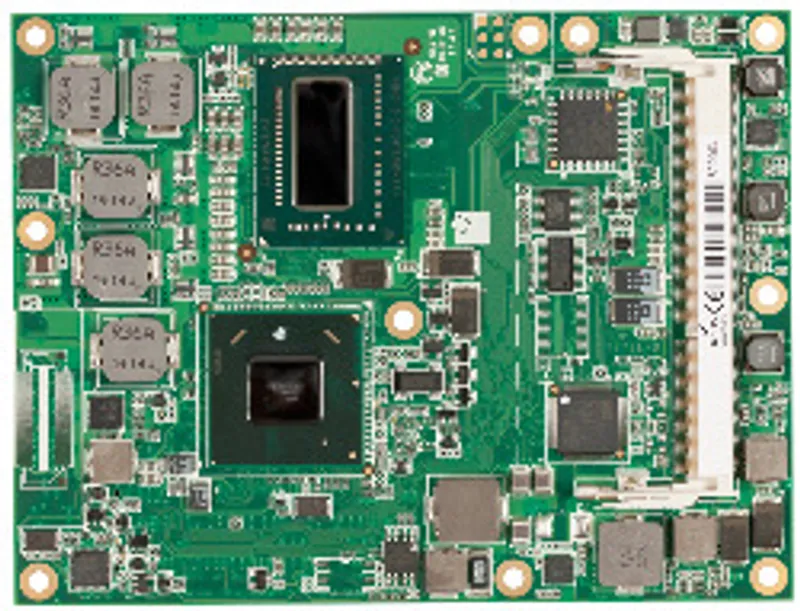

B&R 5PC900.TS77-07
Intel Celeron 847E 1.1 GHz
- MPN
- 5PC900.TS77-07
- Category
- CPU boards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC900.TS77-07?
Intel Celeron 847E 1.1 GHz
Intel HM76 chipset
2x DDR3 memory socket
Intel HD Graphics 2000
AMI BIOS (UEFI)
CPU Board Intel Celeron 847E 1.1 GHz - Dual core - HM76 chipset - For APC910 - Product discontinued, not for use with new configurations
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Controller
| Processor – Type | Intel Celeron 847E |
| Processor – Clock frequency | 1100 MHz |
| Processor – Number of cores | 2 |
| Processor – Architecture | 32 nm |
| Processor – Thermal design power (TDP) | 17 W |
| Processor – Intel Smart Cache | 2 MB |
| Processor – External bus | DMI, 5 GT/s |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Turbo Boost Technology | No |
| Processor – Intel Hyper-Threading Technology | No |
| Processor – Intel vPro Technology | No |
| Processor – Intel Virtualization Technology (VT-x) | Yes |
| Processor – Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).) |
| Real-time clock – Battery-backed | Yes |
| Memory slot – Number of memory channels | 2 |
| Memory slot – Type | DDR3 |
| Memory slot – Memory size | Max. 16 GB |
| Memory slot – Max. memory bandwidth | 21.3 GB/s |
| Graphics – DVI | Resolution up to 1920 x 1200 (WUXGA) |
| Graphics – RGB | 350 MHz RAMDAC, resolution up to 2048 x 1536 @ 75 Hz (QXGA) |
| Graphics – DisplayPort | Version 1.1 |
| Graphics – Controller | Intel HD Graphics 2000 |
| Graphics – Max. dynamic graphics frequency | 800 MHz |
| Graphics – Color depth | Max. 32-bit |
| Graphics – DirectX support | 10.1 |
| Graphics – OpenGL support | 3.1 |
| Bootloader | Embedded AMI BIOS |
| Chipset | Intel HM76 |
| Trusted Platform Module | No |
| Mass memory management | 4x SATA |
| Power management | ACPI 4.0 with battery support |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Accessories
Required accessories (order separately)
| 5AC901.HS01-00 | Heat sink — The 5AC901.HS01-00 heat sink has cooling fins and heat pipes for improved heat dissipation. It is only used together with system units that… |
| 5AC901.HS00-00 | Heat sink — The 5AC901.HS00-00 heat sink has cooling fins and heat pipes for improved heat dissipation. It is only used together with system units that… |
| 5MMDDR.8192-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 8192 MB SO-DIMM DDR3, 8192 MB |
| 5MMDDR.4096-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 4096 MB SO-DIMM DDR3, 4096 MB |
| 5MMDDR.2048-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 2048 MB SO-DIMM DDR3, 2048 MB |
| 5MMDDR.1024-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 1024 MB SO-DIMM DDR3, 1024 MB |
