Quick facts
| Availability | Confirmed on request |
| Category | CPU boards |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5PC900.TS77-10 be shipped?
5PC900.TS77-10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC900.TS77-10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC900.TS77-10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC900.TS77-10, subject to availability and destination.

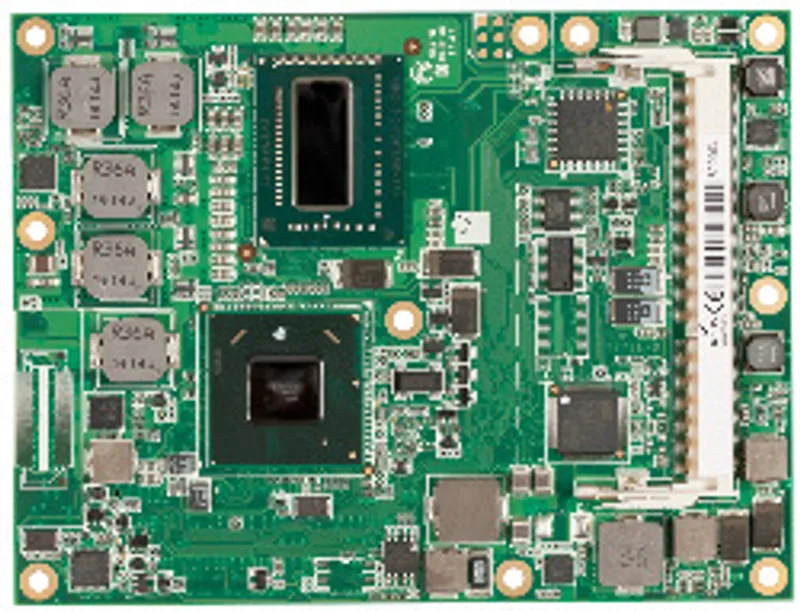

Intel Celeron 1047UE 1.4 GHzIntel HM76 chipset2x DDR3 memory slotIntel HD Graphics 2500AMI BIOS (UEFI) CPU Board Intel Celeron 1047UE 1.4 GHz - Dual core - HM76 chipset - For APC910 - Product discontinued, not for use with new configurations
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267Industrial control equipment |
| DNV | Temperature: B (0 to 55°C)Humidity: B (up to 100%)Vibration: A (0.7 g)EMC: B (bridge and open deck) |
| KR | Yes |
| Bootloader | Embedded AMI BIOS |
| Type | DDR3 |
| Clock frequency | 1400 MHz |
| Number of cores | 2 |
| Architecture | 22 nm |
| Thermal design power (TDP) | 17 W |
| Intel Smart Cache | 2 MB |
| External bus | DMI, 5 GT/s |
| Intel 64 architecture | Yes |
| Intel Turbo Boost Technology | No |
| Intel Hyper-Threading Technology | No |
| Intel vPro Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Chipset | Intel HM76 |
| Trusted Platform Module | No |
| Accuracy | At 25°C: Typ. 12 ppm (1 second) per day |
| Battery-backed | Yes |
| Number of memory channels | 2 |
| Memory size | Max. 16 GB |
| Max. memory bandwidth | 25.6 GB/s |
| Controller | Intel HD Graphics 2500 |
| Max. dynamic graphics frequency | 900 MHz |
| Color depth | Max. 32-bit |
| DirectX support | 11 |
| OpenGL support | 4.0 |
| DVI | Resolution up to 1920 x 1200 (WUXGA) |
| RGB | 350 MHz RAMDAC, resolution up to 2048 x 1536 @ 75 Hz (QXGA) |
| DisplayPort | Version 1.1 |
| Mass memory management | 4x SATA |
| Power management | ACPI 4.0 with battery support |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
