SENTRON 8WH6 iPo Plug-In Terminals Parts
Compare SENTRON 8WH6 iPo Plug-In Terminals
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | terminal contact spacing | connectable conductor cross-section stranded — maximum | height with lowest-profile installation | length | Net Weight |
|---|---|---|---|---|---|

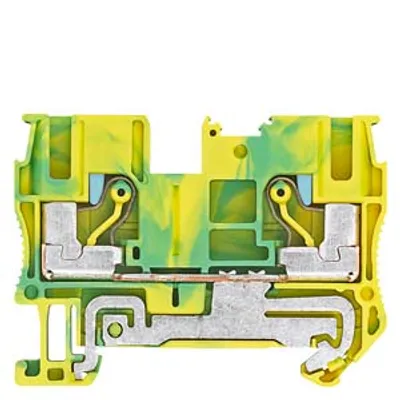

| 8WH6000-0CH07 | 8.2 mm | 0.5 mm² | 43.5 mm | 58 mm | 19 g |

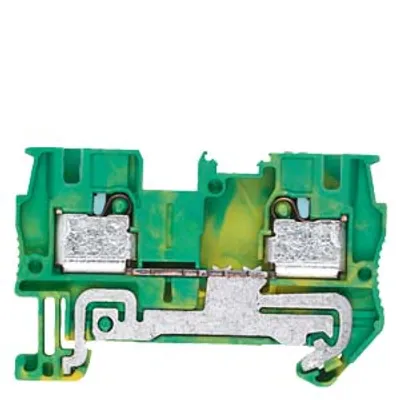

| 8WH6000-0CG07 | 6.2 mm | 0.2 mm² | 36.5 mm | 56 mm | 10 g |

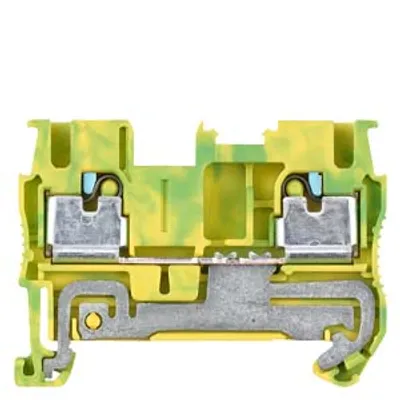

| 8WH6000-0CF07 | 5.2 mm | 0.14 mm² | 36.5 mm | 48.5 mm | 9 g |
| 8WH6000-0AS01 | 31 mm | 150 mm² | 116.5 mm | 116.4 mm | 357 g |
| 8WH6000-0AN00 | 20 mm | 70 mm² | 105 mm | 101 mm | 155 g |
| 8WH6000-0AH00 | 6 mm | 10 mm² | 43.5 mm | 58 mm | 15 g |
| 8WH6000-0AF00 | 5 mm | 0.14 mm² | 38.5 mm | 49 mm | 6.6 g |

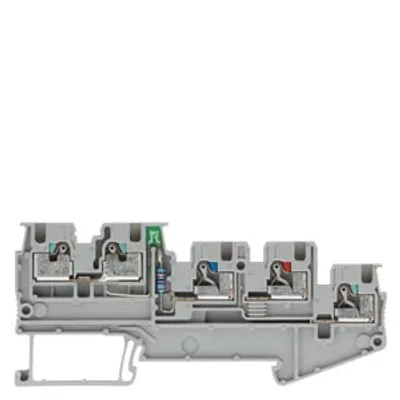

| 8WH6004-0DE00 | 3.5 mm | 1.5 mm² | 41.5 mm | 90.8 mm | 8 g |

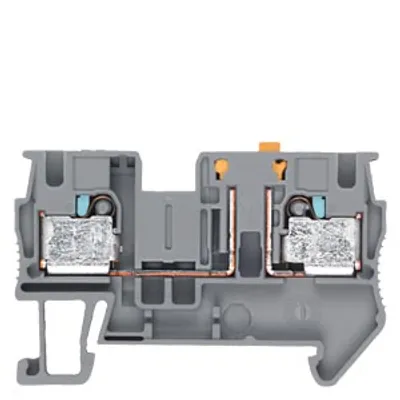

| 8WH6000-6CG00 | 6.2 mm | 4 mm² | 55.9 mm | 56 mm | 9 g |

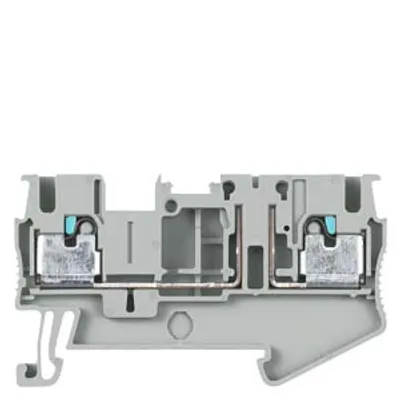

| 8WH6000-6CF00 | 5.2 mm | 2.5 mm² | 61.93 mm | 60.5 mm | 9 g |

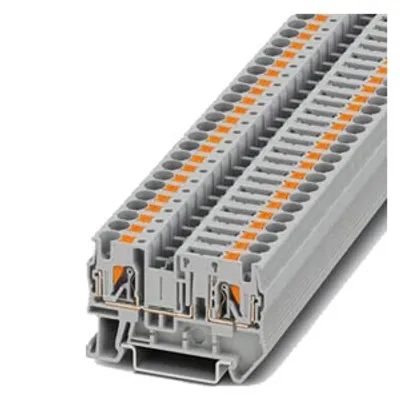

| 8WH6000-6AG00 | 6.2 mm | 4 mm² | 55.93 mm | 54 mm | 10 g |

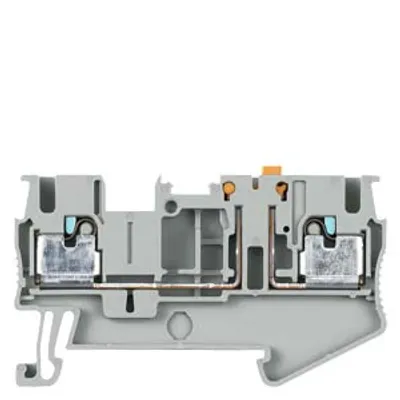

| 8WH6000-6AF00 | 5.2 mm | 2.5 mm² | 61.93 mm | 60.5 mm | 9 g |
| 8WH6000-1MG88 | 6.2 mm | 4 mm² | 55.93 mm | 56 mm | 13 g |

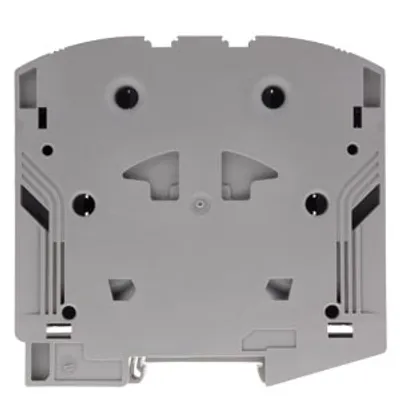

| 8WH6000-0AS00 | 31 mm | 150 mm² | 116.5 mm | 101 mm | 361 g |
| 8WH6000-0AQ01 | 25 mm | 95 mm² | 108.7 mm | 105.5 mm | 200 g |
| 8WH6000-0AQ00 | 25 mm | 95 mm² | 108.7 mm | 101 mm | 198 g |

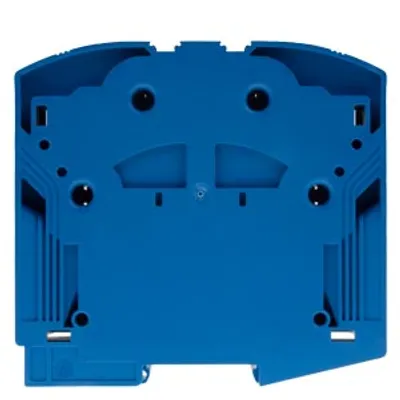

| 8WH6000-0AN01 | 20 mm | 70 mm² | 105 mm | 101 mm | 155 g |
| 8WH6000-0AJ01 | 10 mm | 16 mm² | 49.5 mm | 68 mm | 26 g |

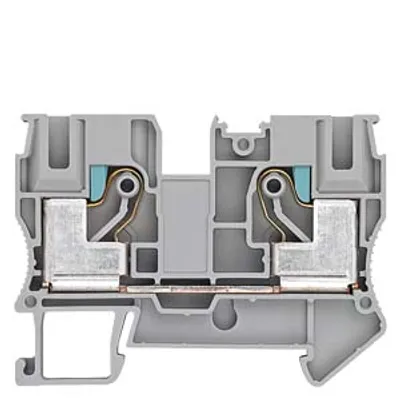

| 8WH6000-0AJ00 | 10 mm | 16 mm² | 49.5 mm | 68 mm | 28 g |
| 8WH6000-0AH01 | 6 mm | 10 mm² | 43.5 mm | 58 mm | 16 g |
| 8WH6000-0AG01 | 4 mm | 6 mm² | 36.5 mm | 56 mm | 9 g |
| 8WH6000-0AG00 | 4 mm | 6 mm² | 36.5 mm | 56 mm | 9 g |

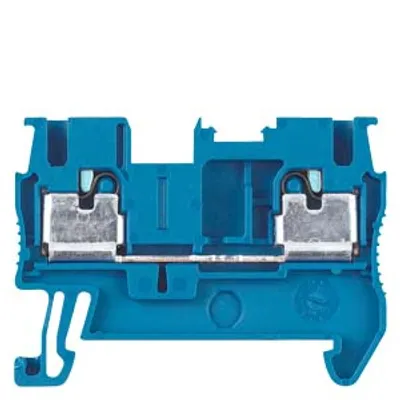

| 8WH6000-0AF01 | 5 mm | 0.14 mm² | 38.5 mm | 49 mm | 7 g |

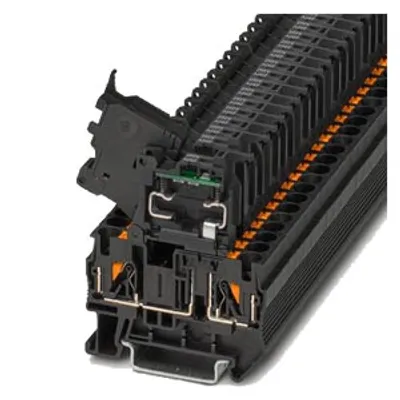

| 8WH6000-1KG38 | 6.2 mm | 4 mm² | 55.93 mm | 56 mm | 13 g |
