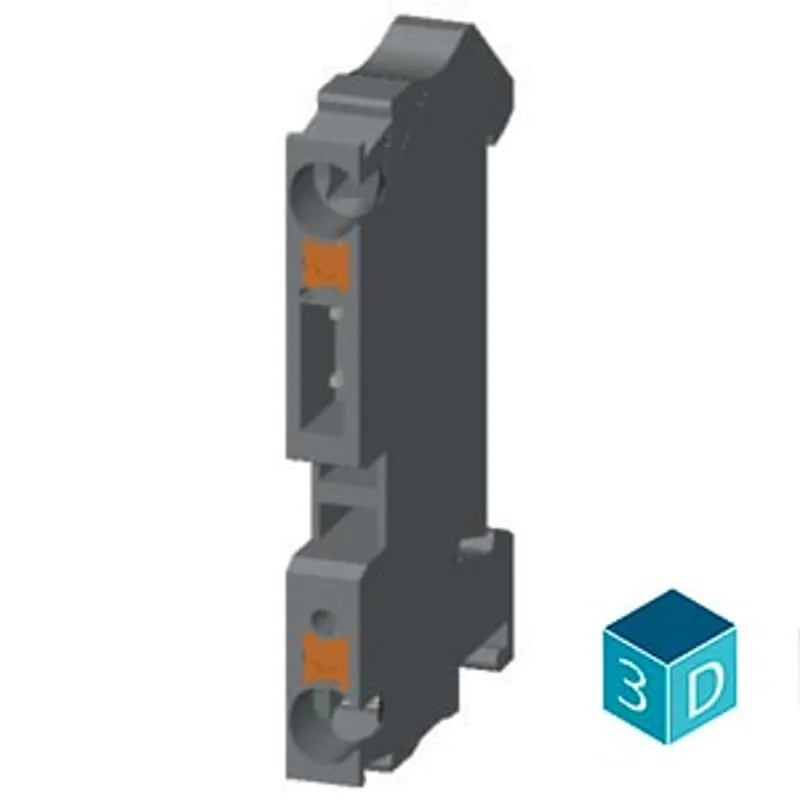

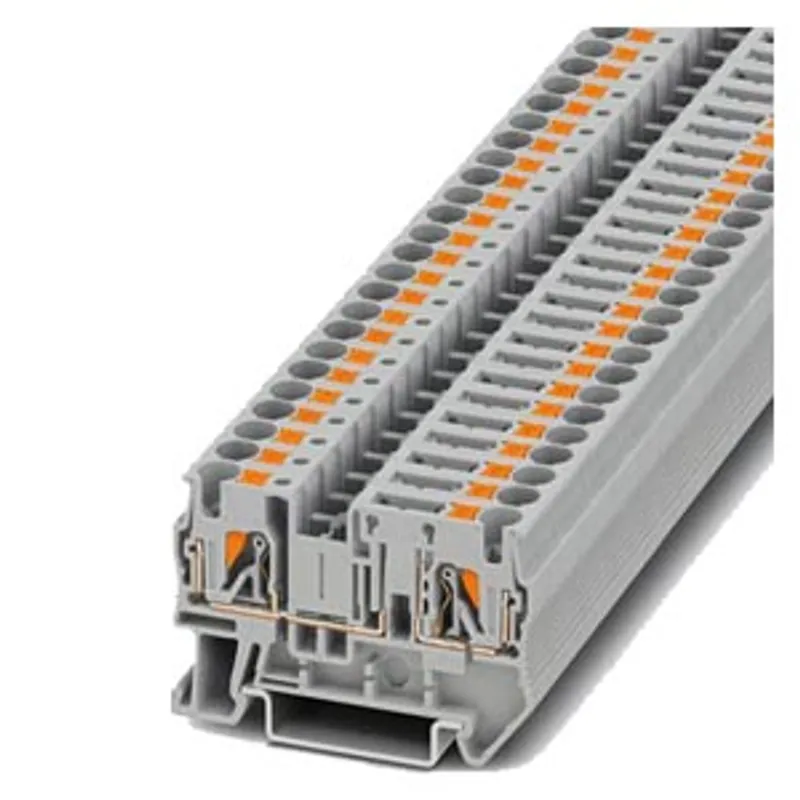

Siemens 8WH6000-6AG00
Terminal, iPo plug-in terminal, isolating terminal, 4 mm², gray
- MPN
- 8WH6000-6AG00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH6000-6AG00?
Terminal, iPo plug-in terminal, isolating terminal, 4 mm², gray
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | iPo isolating terminal |
| type of longitudinal separation | pluggable |
| type of lateral separation | without |
General technical data
| insulation material | thermoplastic |
| terminal contact spacing | 6.2 mm |
| operating voltage rated value | 500 V |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 20 A |
Appearance
| color | grey |
Product details
| product component — test socket | No |
Number
| number of terminal levels | 1 |
| number of terminal points per terminal level | 2 |
Connections
| connectable conductor cross-section solid — minimum | 0.2 mm² |
| connectable conductor cross-section solid — maximum | 6 mm² |
| connectable conductor cross-section stranded — maximum | 4 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.25 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 4 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.2 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 6 mm² |
| type of connection 1 | plug-in terminal connection |
| type of connection 2 | plug-in terminal connection |
| position of the terminal | top |

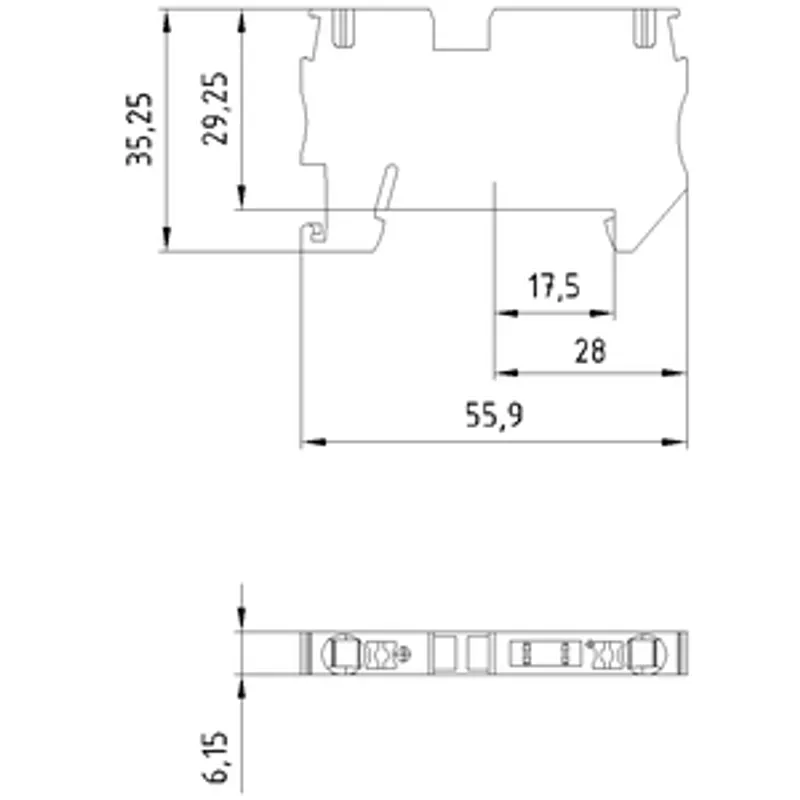

Mechanical Design
| height with lowest-profile installation | 55.93 mm |
| depth | 36.5 mm |
| length | 54 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 10 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | -60 °C |
| ambient temperature during operation — maximum | -105 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8WH6000-6AG00: frequently asked questions
When can 8WH6000-6AG00 be shipped?
8WH6000-6AG00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WH6000-6AG00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WH6000-6AG00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WH6000-6AG00, subject to availability and destination.
