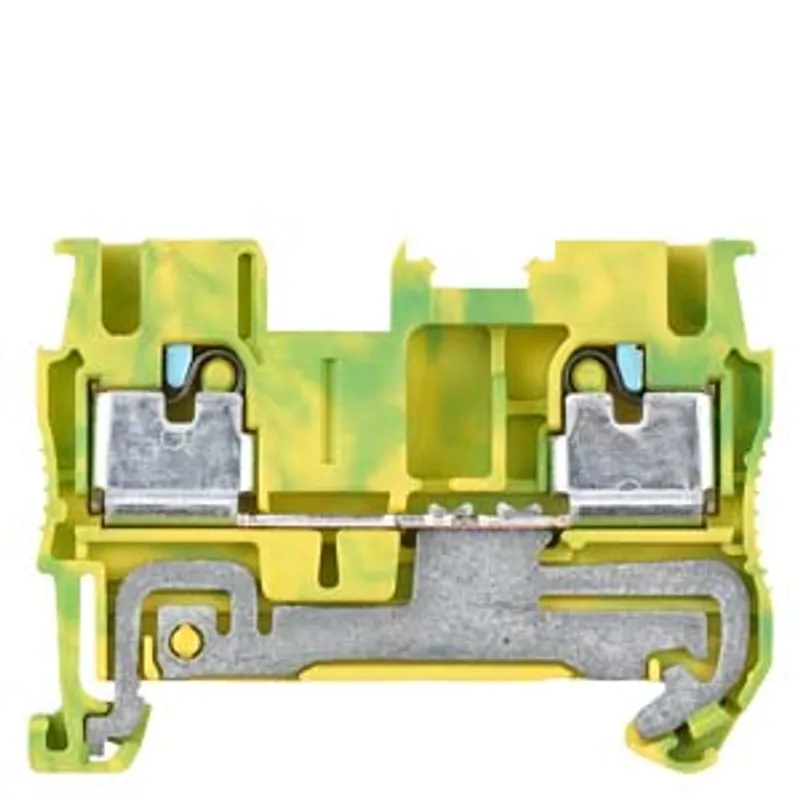

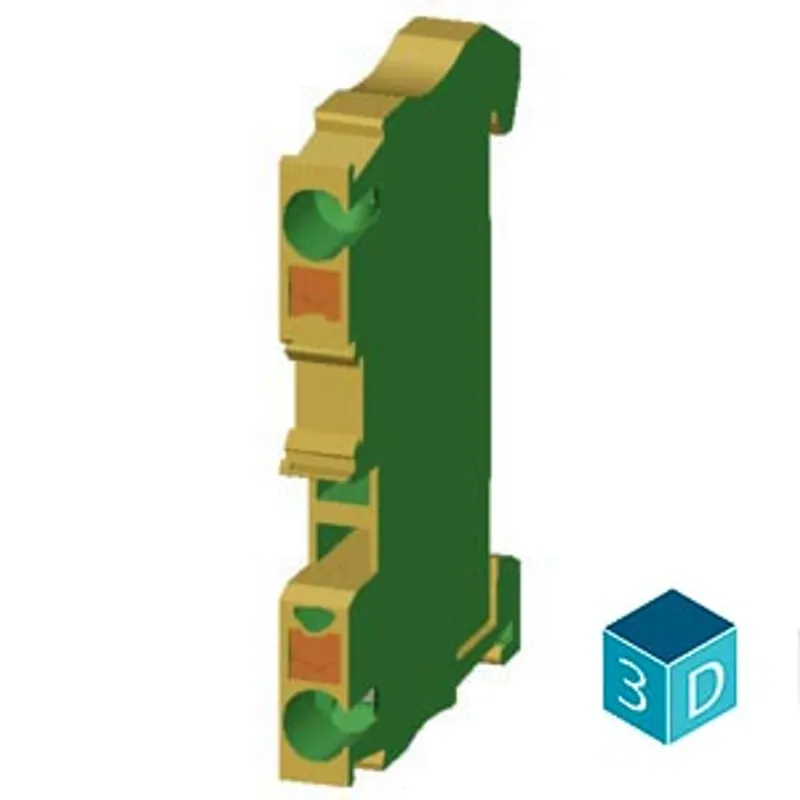

Siemens 8WH6000-0CF07
Terminal, iPo plug-in terminal, PE/PEN terminal, 2.5 mm², green-yellow
- MPN
- 8WH6000-0CF07
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH6000-0CF07?
Terminal, iPo plug-in terminal, PE/PEN terminal, 2.5 mm², green-yellow
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | PE through-type terminal |
General technical data
| insulation material | thermoplastic |
| terminal contact spacing | 5.2 mm |
Protection class
| combustibility class according to UL 94 | V0 |
Appearance
| color | green-yellow |
Product details
| product feature PEN function | No |
| product component required end cover plate | Yes |
Number
| number of terminal levels | 1 |
| number of terminal points per terminal level | 2 |
Connections
| stripped length | 9 mm |
| connectable conductor cross-section solid — minimum | 0.14 mm² |
| connectable conductor cross-section solid — maximum | 4 mm² |
| connectable conductor cross-section stranded — minimum | 4 mm² |
| connectable conductor cross-section stranded — maximum | 0.14 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.14 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.14 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 4 mm² |
| type of connection 1 | plug terminal connection |
| type of connection 2 | plug terminal connection |
| position of the terminal | top |

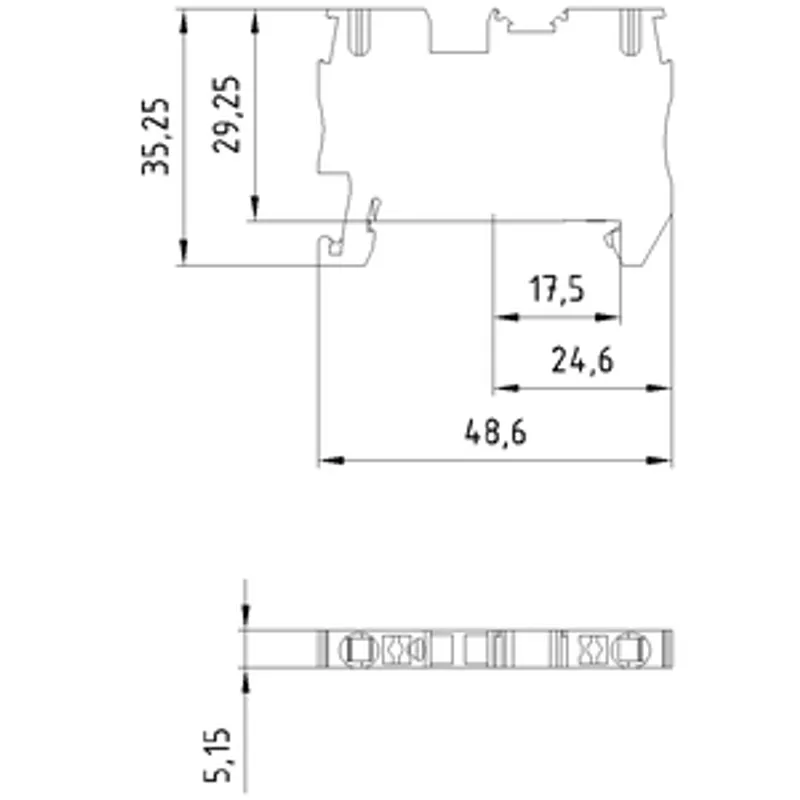

Mechanical Design
| height | 49.1 mm |
| height with lowest-profile installation | 36.5 mm |
| depth | 35.25 mm |
| length | 48.5 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 9 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | 105 °C |
| ambient temperature during operation — maximum | 105 °C |
