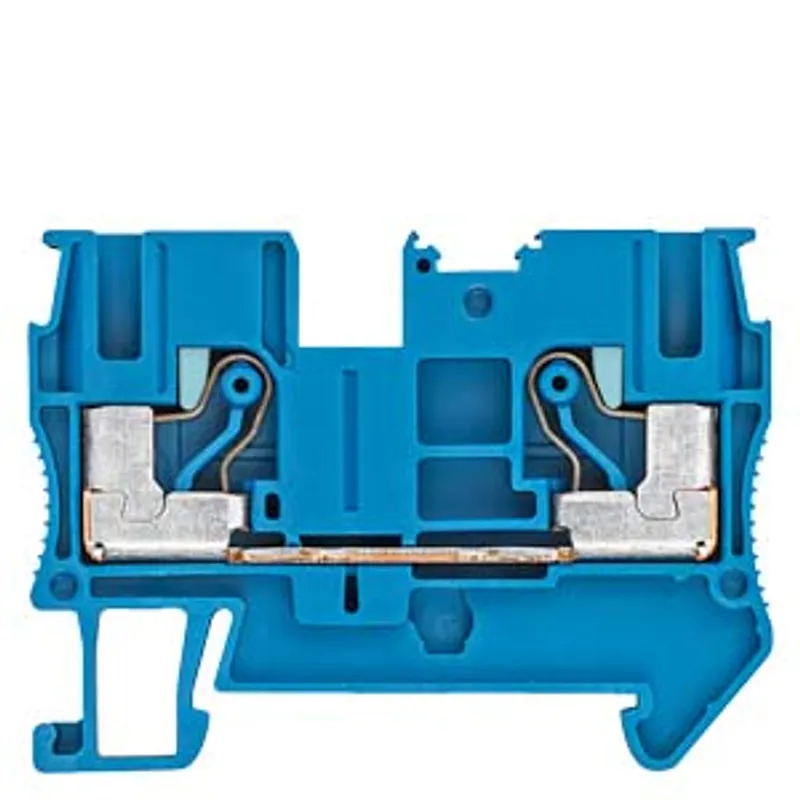

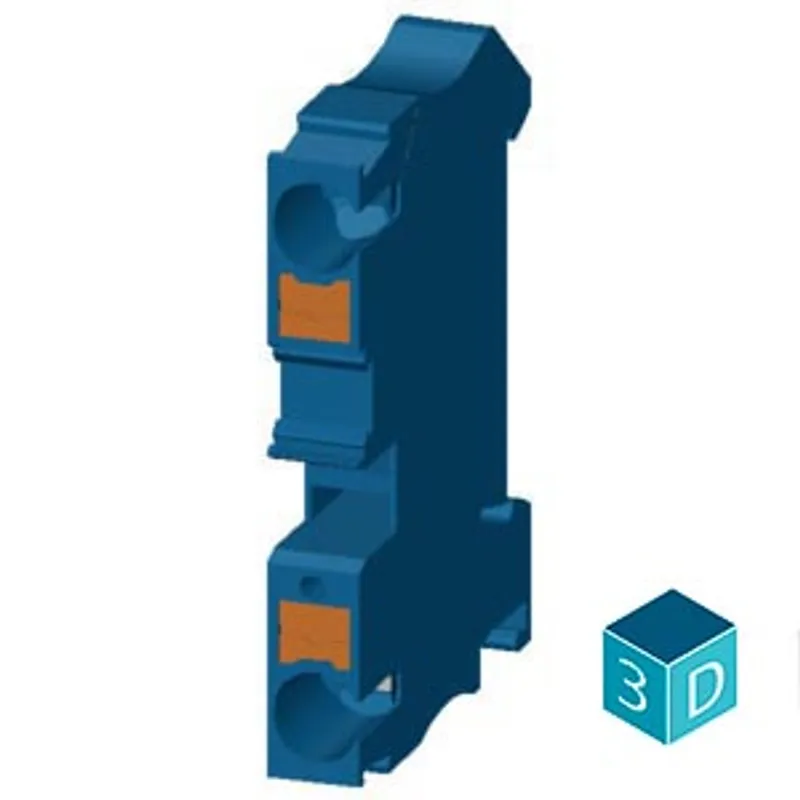

Siemens 8WH6000-0AH01
Terminal, iPo plug-in terminal, through-type terminal, 6 mm², blue
- MPN
- 8WH6000-0AH01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH6000-0AH01?
Terminal, iPo plug-in terminal, through-type terminal, 6 mm², blue
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | iPo through-type terminal |
| product version | N-through-type terminal, for mounting on mounting rail acc. to IEC 60715 |
| design of terminal terminal levels internally linked | No |
General technical data
| terminal contact spacing | 6 mm |
| operating voltage rated value | 1 000 V |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 41 A |
Appearance
| color | blue |
Product details
| product component required end cover plate | Yes |
Number
| number of terminal levels | 1 |
| number of terminal points per terminal level | 2 |
Connections
| connectable conductor cross-section solid — minimum | 0.5 mm² |
| connectable conductor cross-section solid — maximum | 10 mm² |
| connectable conductor cross-section stranded — minimum | 0.5 mm² |
| connectable conductor cross-section stranded — maximum | 10 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 6 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 10 mm² |
| type of connection 1 | plug terminal connection |
| type of connection 2 | plug terminal connection |
| position of the terminal | top |

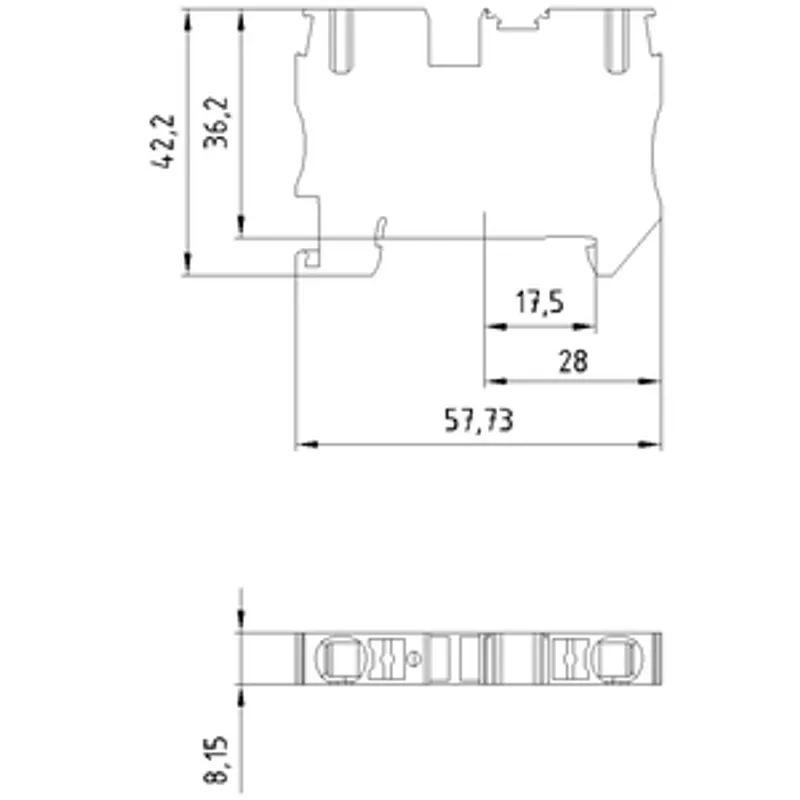

Mechanical Design
| height | 57.73 mm |
| height with lowest-profile installation | 43.5 mm |
| depth | 42.2 mm |
| length | 58 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 16 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | -60 °C |
| ambient temperature during operation — maximum | 105 °C |
