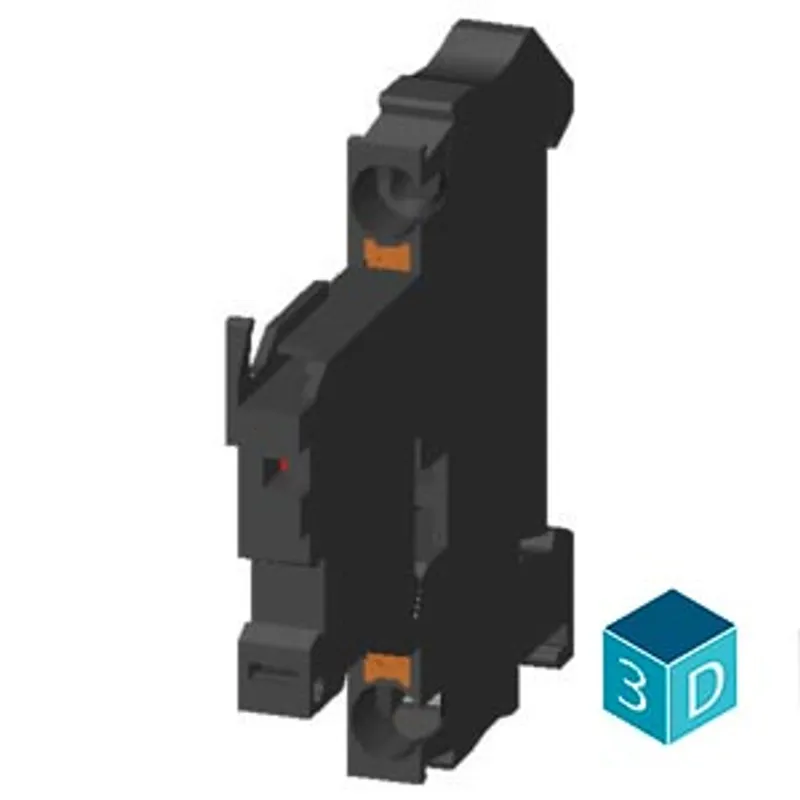

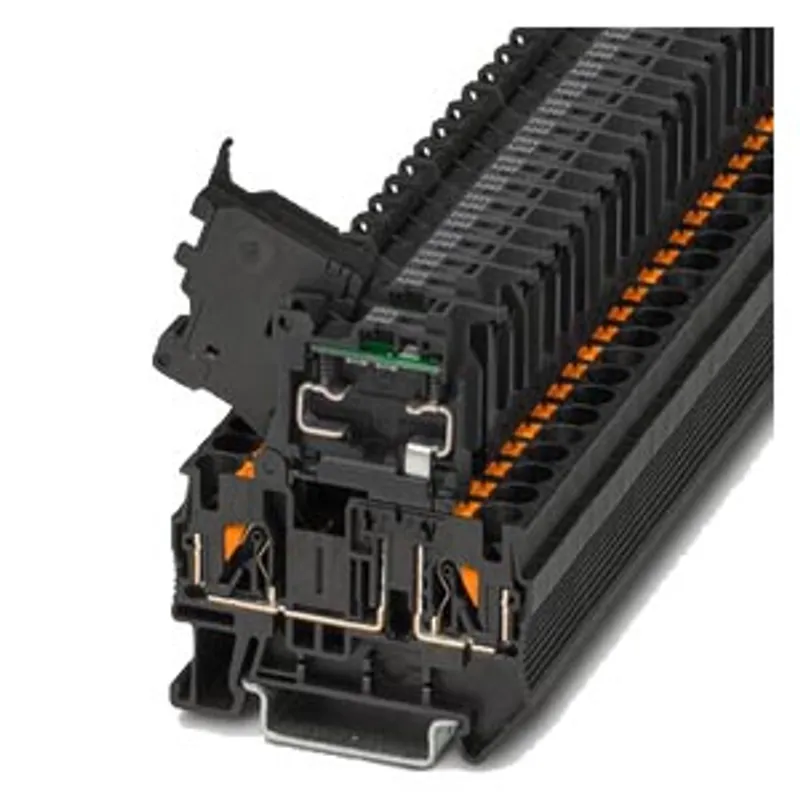

Siemens 8WH6000-1KG38
Terminal, iPo plug-in terminal, fuse terminal for G fuse, with illumin. display, 4 mm², black
- MPN
- 8WH6000-1KG38
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH6000-1KG38?
Terminal, iPo plug-in terminal, fuse terminal for G fuse, with illumin. display, 4 mm², black
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | iPo fuse terminal |
| type of light source as defect indicator | LED |
| design of the fuse link | glass fuse 5x20 mm |
| design of fuse holder | swivel |
General technical data
| insulation material | thermoplastic |
| terminal contact spacing | 6.2 mm |
Supply voltage
| operating voltage rated value | 500 V |
| type of voltage for supply of the defect indicator | AC/DC |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 6.3 A |
Appearance
| color | black |
Product details
| product component required end cover plate | Yes |
Number
| number of terminal levels | 1 |
Connections
| connectable conductor cross-section solid — minimum | 0.2 mm² |
| connectable conductor cross-section solid — maximum | 0.2 mm² |
| connectable conductor cross-section stranded — maximum | 4 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 6 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 6 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.2 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 6 mm² |
| type of connection 1 | plug-in terminal connection |
| type of connection 2 | Plug-in terminal connection |
| position of the terminal | top |

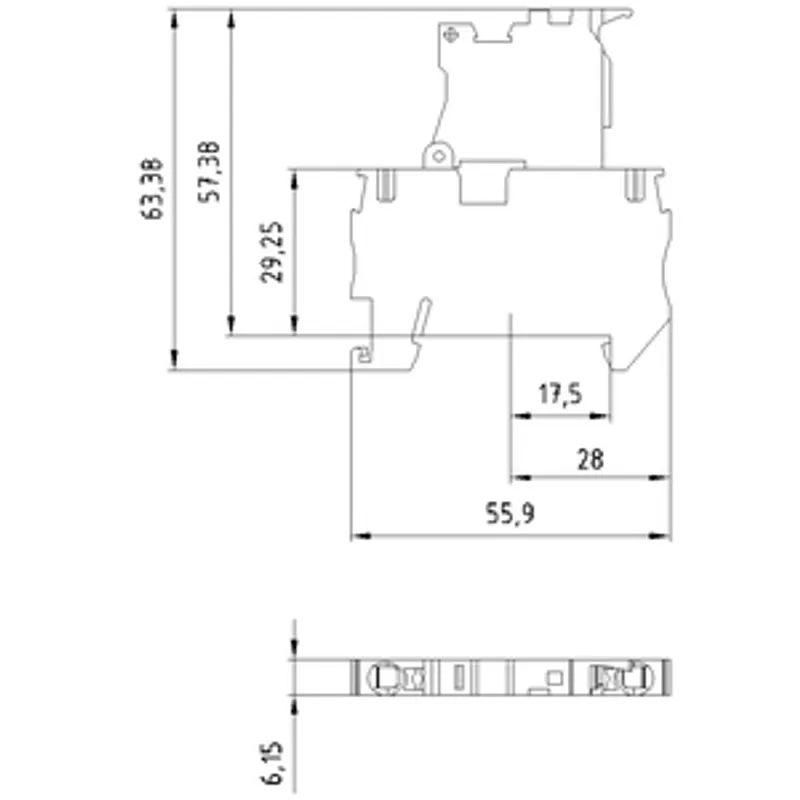

Mechanical Design
| height with lowest-profile installation | 55.93 mm |
| depth | 63.38 mm |
| length | 56 mm |
| fastening method | DIN rail 35 mm |
| Net Weight | 13 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | 105 °C |
| ambient temperature during operation — maximum | 105 °C |
