3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 40 °C | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA1340-4EF32-0AA0 | 92.1 W | 4.841 kg | 400 A | 280 A | 2 000 A |
| 3VA1225-5FF42-0AA0 | 57 W | 2.11 kg | 250 A | 175 A | 1 250 A |
| 3VA1340-5EF32-0AA0 | 92.1 W | 4.852 kg | 400 A | 280 A | 2 000 A |
| 3VA1450-6MH32-0AA0 | 122.7 W | 4.928 kg | 500 A | — | 2 500 A |
| 3VA1440-6MH32-0AA0 | 76.8 W | 4.913 kg | 400 A | — | 2 400 A |
| 3VA1340-5FF42-0AA0 | 92.1 W | 6.363 kg | 400 A | 280 A | 2 000 A |

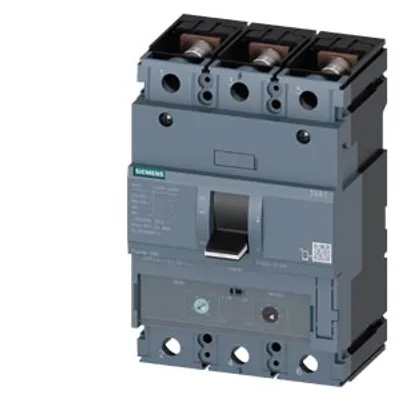

| 3VA1220-5EF32-0AA0 | 42 W | 1.581 kg | 200 A | 140 A | 1 000 A |
| 3VA1196-4GE42-0AA0 | 10.6 W | 1.251 kg | 16 A | 11 A | 320 A |
| 3VA1196-4GD46-0AA0 | 10.6 W | 1.293 kg | 16 A | 16 A | 320 A |
| 3VA1196-4EF36-0AA0 | 10.6 W | 989 g | 16 A | 11 A | 160 A |
| 3VA1150-4EF42-0AA0 | 14.6 W | 1.205 kg | 50 A | 35 A | 250 A |
| 3VA1150-5GE42-0AA0 | 14.6 W | 1.235 kg | 50 A | 35 A | 500 A |
| 3VA1150-5GD46-0AA0 | 14.6 W | 1.319 kg | 50 A | 50 A | 500 A |
| 3VA1140-5GD46-0AA0 | 10.8 W | 1.316 kg | 40 A | 40 A | 400 A |
| 3VA1125-6GD42-0AA0 | 8.5 W | 1.21 kg | 25 A | 25 A | 320 A |
| 3VA1125-4EF42-0AA0 | 8.5 W | 1.2 kg | 25 A | 17 A | 160 A |
| 3VA1125-4EF36-0AA0 | 8.5 W | 1.002 kg | 25 A | 17 A | 160 A |

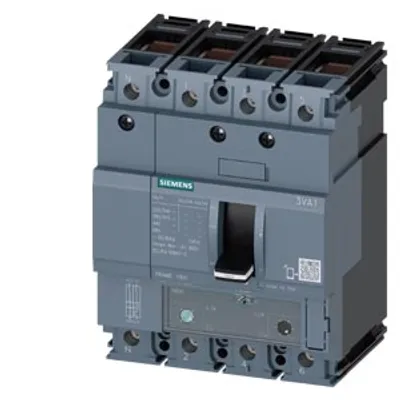

| 3VA1120-6EF46-0AA0 | 12 W | 1.17 kg | 20 A | 14 A | 160 A |
| 3VA1140-4ED32-0AA0 | 10.8 W | 915 g | 40 A | 40 A | 400 A |
| 3VA1140-4ED26-0AA0 | 7.2 W | 702 g | 40 A | 40 A | 400 A |
| 3VA1140-4ED22-0AA0 | 7.2 W | 652 g | 40 A | 40 A | 400 A |
| 3VA1140-4ED16-0AA0 | 3.6 W | 385 g | 40 A | 40 A | 400 A |
| 3VA1140-3GD42-0AA0 | 10.8 W | 1.232 kg | 40 A | 40 A | 400 A |
| 3VA1140-3EF46-0AA0 | 10.8 W | 1.283 kg | 40 A | 28 A | 200 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| mechanical service life (operating cycles) / typical | 20 000 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
| product function / grounding protection | No |
| product component — undervoltage release | No |
