3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum | adjustable response value setting current (Ii) / for I-tripping — maximum |
|---|---|---|---|---|---|

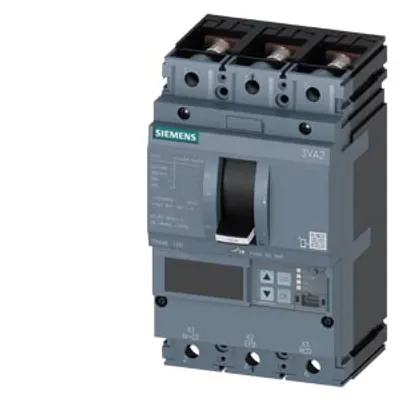

| 3VA2110-7JQ32-0AA0 | ETU560 | 10 W | 2.133 kg | 150 A | 1 200 A |

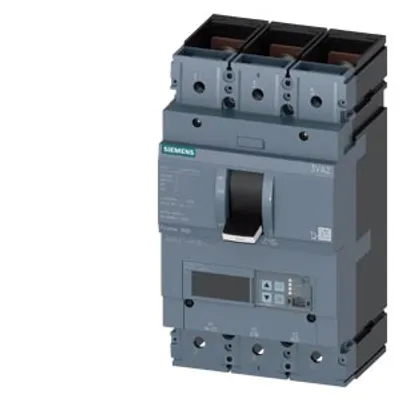

| 3VA2325-7KP32-0AA0 | ETU850 | 37.5 W | 4.5 kg | 375 A | 3 000 A |
| 3VA2325-7HN42-0AA0 | ETU350 | 37.5 W | 5.7 kg | 3 000 A | 3 000 A |

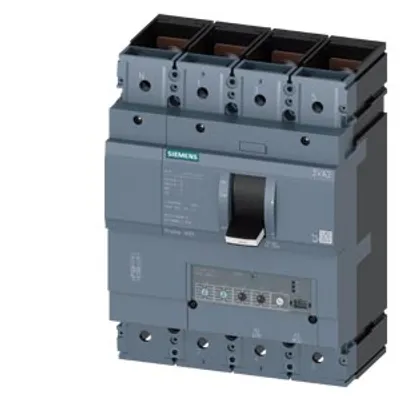

| 3VA2325-7HM42-0AA0 | ETU330 | 37.5 W | 5.7 kg | 375 A | 3 000 A |
| 3VA1110-4EF32-0AA0 | TM240 | 25 W | 917 g | 500 A | 1 000 A |
| 3VA2140-5MP32-0AA0 | ETU550M | 1.6 W | 2.13 kg | 120 A | 600 A |
| 3VA2216-7MP32-0AA0 | ETU550M | 19.7 W | 2.24 kg | 480 A | 2 400 A |
| 3VA2220-7MN32-0AA0 | ETU350M | 46 W | 2.117 kg | 3 000 A | 3 000 A |
| 3VA2110-0HN46-0AA0 | ETU350 | 7.7 W | 3.3 kg | 1 200 A | 1 200 A |
| 3VA2110-0HN42-0AA0 | ETU350 | 7.7 W | 3.3 kg | 1 200 A | 1 200 A |
| 3VA2063-8JP46-0AA0 | ETU550 | 3 W | 3.2 kg | 94 A | 756 A |
| 3VA2063-8JP36-0AA0 | ETU550 | 3 W | 2.5 kg | 94 A | 756 A |
| 3VA2063-8JP32-0AA0 | ETU550 | 3 W | 2.5 kg | 94 A | 756 A |
| 3VA2063-8HN46-0AA0 | ETU350 | 3 W | 3.2 kg | 756 A | 756 A |

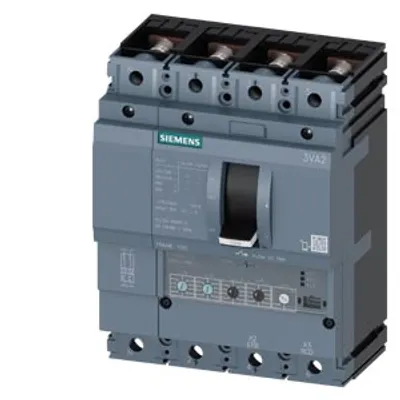

| 3VA2063-8HN42-0AA0 | ETU350 | 3 W | 3.2 kg | 756 A | 756 A |
| 3VA2110-7MN36-0AA0 | ETU350M | 10 W | 2.266 kg | 1 500 A | 1 500 A |
| 3VA2163-6HN36-0AA0 | ETU350 | 4 W | 2.291 kg | 756 A | 756 A |
| 3VA2163-6HL42-0AA0 | ETU320 | 4 W | 2.769 kg | 94 A | 756 A |
| 3VA2125-7MN36-0AA0 | ETU350M | 0.6 W | 2.301 kg | 375 A | 375 A |
| 3VA2163-7MN36-0AA0 | ETU350M | 4 W | 2.245 kg | 945 A | 945 A |
| 3VA2163-6HK42-0AA0 | ETU340 | 4 W | 3.2 kg | 945 A | 945 A |
| 3VA2163-6HK36-0AA0 | ETU340 | 4 W | 2.5 kg | 945 A | 945 A |

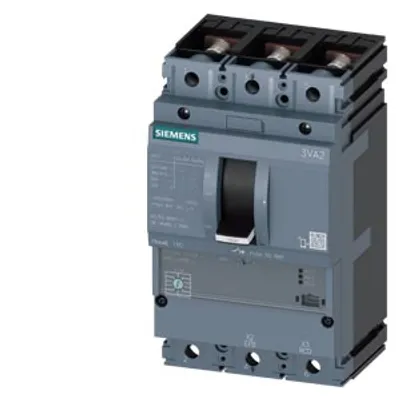

| 3VA2163-6HK32-0AA0 | ETU340 | 4 W | 2.5 kg | 945 A | 945 A |
| 3VA2040-7HM36-0AA0 | ETU330 | 1.2 W | 2.5 kg | 60 A | 480 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product feature / for L-tripping / can be switched on/off | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
