3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

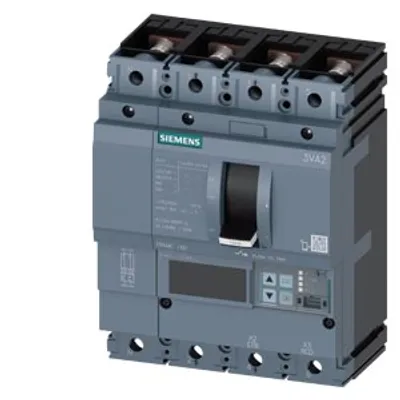

| 3VA2110-7KQ42-0AA0 | ETU860 | 10 W | 3.33 W | 2.731 kg | 150 A |
| 3VA2325-7JP42-0AA0 | ETU550 | 37.5 W | 12.5 W | 5.7 kg | 375 A |
| 3VA2450-6JQ42-0AA0 | ETU560 | 99 W | 33 W | 6.348 kg | 750 A |
| 3VA2450-6HK42-0AA0 | ETU340 | 99 W | 33 W | 6.159 kg | 7 000 A |
| 3VA1110-4EE32-0AA0 | TM220 | 25 W | — | 926 g | 1 000 A |

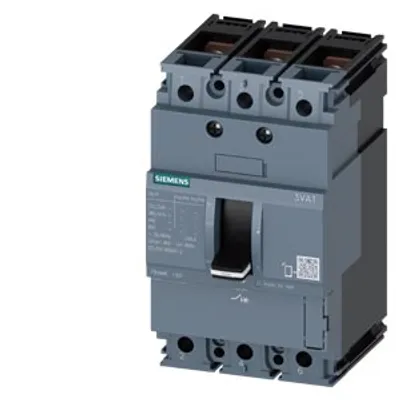

| 3VA1110-4ED32-0AA0 | TM210 | 25 W | — | 919 g | 1 000 A |
| 3VA1110-4ED26-0AA0 | TM210 | 16.66 W | — | 0.679 kg | 1 000 A |
| 3VA2010-8KQ42-0AA0 | ETU860 | 7.7 W | 2.57 W | 3.2 kg | 150 A |
| 3VA2025-8KP32-0AA0 | ETU850 | 0.5 W | 0.17 W | 2.5 kg | 37 A |
| 3VA2025-8JQ46-0AA0 | ETU560 | 0.5 W | 0.17 W | 3.2 kg | 37 A |
| 3VA2025-8JP46-0AA0 | ETU550 | 0.5 W | 0.17 W | 3.2 kg | 37 A |
| 3VA2110-6HL42-0AA0 | ETU320 | 10 W | 3.33 W | 2.733 kg | 150 A |

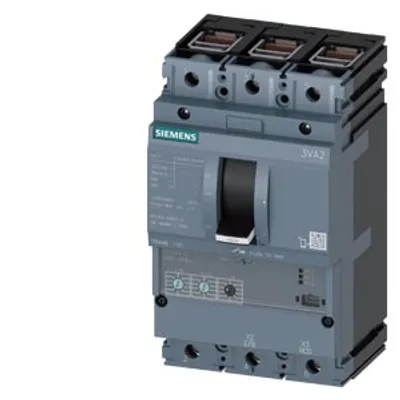

| 3VA2110-6HL36-0AA0 | ETU320 | 10 W | 3.33 W | 2.257 kg | 150 A |
| 3VA2110-5HM36-0AA0 | ETU330 | 10 W | 3.33 W | 2.269 kg | 150 A |
| 3VA2110-6JQ42-0AA0 | ETU560 | 10 W | 3.33 W | 2.718 kg | 150 A |
| 3VA2110-6JQ36-0AA0 | ETU560 | 10 W | 3.33 W | 2.5 kg | 150 A |
| 3VA2125-7MS36-0AA0 | ETU310M | 0.6 W | 0.2 W | 2.5 kg | 75 A |

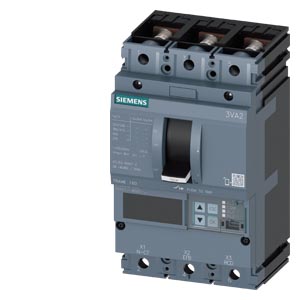

| 3VA2125-7MQ32-0AA0 | ETU860M | 0.6 W | 0.2 W | 2.15 kg | 75 A |

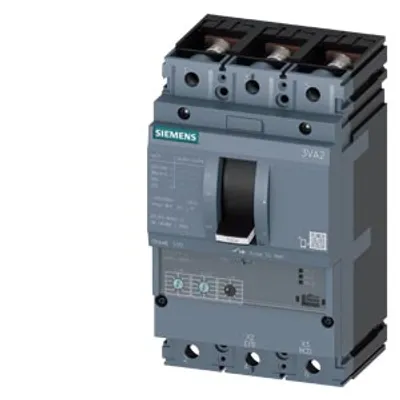

| 3VA2040-6HL32-0AA0 | ETU320 | 2.2 W | 0.73 W | 2.128 kg | 60 A |
| 3VA2010-5KP36-0AA0 | ETU850 | 13.5 W | 4.5 W | 2.437 kg | 150 A |
| 3VA2010-5HL42-0AA0 | ETU320 | 13.5 W | 4.5 W | 2.651 kg | 150 A |
| 3VA2010-6HN32-0AA0 | ETU350 | 13.5 W | 4.5 W | 2.063 kg | 1 200 A |
| 3VA1563-7EF42-0AA0 | TM240 | 180 W | 60 W | 12.921 kg | 3 150 A |
| 3VA1563-7EF32-0AA0 | TM240 | 180 W | 60 W | 12.921 kg | 3 150 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
