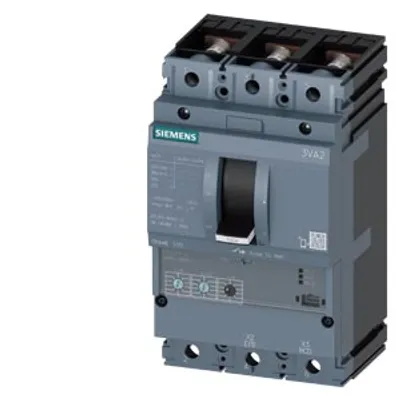

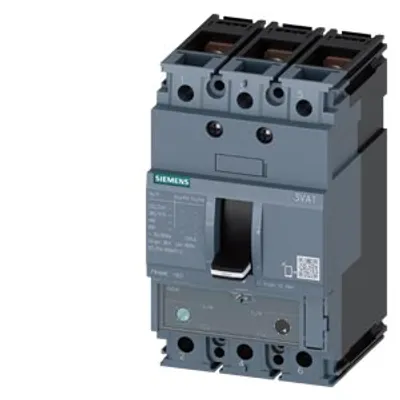

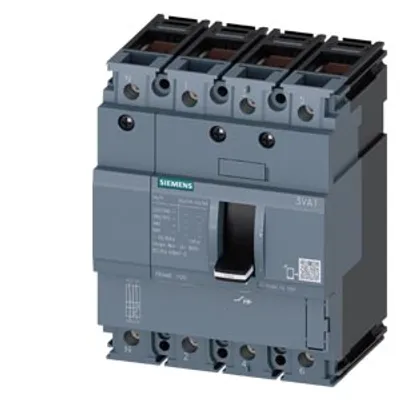

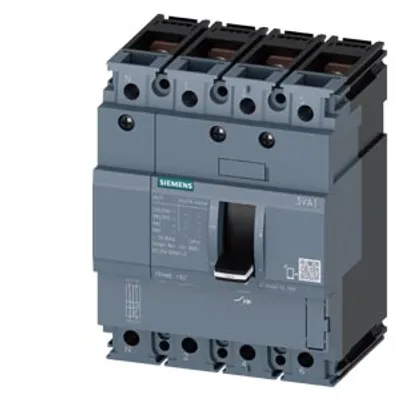

3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 55 °C | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA1110-6GF42-0AA0 | 25 W | 1.215 kg | 98 A | 70 A | 500 A |
| 3VA1110-6EF42-0AA0 | 25 W | 1.162 kg | 98 A | 70 A | 500 A |
| 3VA1080-2ED32-0AA0 | 19.2 W | 917 g | 78 A | 80 A | 800 A |
| 3VA1063-4ED46-0AA0 | 17.3 W | 1.292 kg | 62 A | 63 A | 630 A |
| 3VA1110-3EF32-0AA0 | 25 W | 919 g | 98 A | 70 A | 500 A |
| 3VA1112-4EE32-0AA0 | 28.1 W | 960 g | 122 A | 87 A | 1 250 A |
| 3VA1112-4ED46-0AA0 | 28.1 W | 1.313 kg | 122 A | 125 A | 1 250 A |
| 3VA1110-5ED26-0AA0 | 16.66 W | 0.669 kg | 98 A | 100 A | 1 000 A |
| 3VA1110-5ED22-0AA0 | 16.66 W | 0.669 kg | 98 A | 100 A | 1 000 A |
| 3VA1110-4GD46-0AA0 | 25 W | 1.17 kg | 98 A | 100 A | 1 000 A |
| 3VA1116-4EE32-0AA0 | 38 W | 968 g | 158 A | 112 A | 1 600 A |
| 3VA1116-4ED32-0AA0 | 38 W | 962 g | 158 A | 160 A | 1 600 A |
| 3VA1116-4ED26-0AA0 | 25.34 W | 731 g | 158 A | 160 A | 1 600 A |
| 3VA1120-5ED42-0AA0 | 12 W | 1.196 kg | 20 A | 20 A | 320 A |
| 3VA1120-5ED36-0AA0 | 12 W | 974 g | 20 A | 20 A | 320 A |
| 3VA1125-3EE32-0AA0 | 8.5 W | 929 g | 24 A | 17 A | 320 A |
| 3VA1125-3ED16-0AA0 | 2.83 W | 404 g | 24 A | 25 A | 320 A |
| 3VA2125-7HM32-0AA0 | 0.6 W | 2.5 kg | 25 A | 10 A | 37 A |
| 3VA2125-7HL46-0AA0 | 0.6 W | 3.2 kg | 25 A | 10 A | 37 A |
| 3VA2040-7HN36-0AA0 | 1.2 W | 2.266 kg | 40 A | 16 A | 480 A |
| 3VA2040-7HL42-0AA0 | 1.2 W | 2.677 kg | 40 A | 16 A | 60 A |
| 3VA2040-7HL32-0AA0 | 1.2 W | 2.137 kg | 40 A | 16 A | 60 A |
| 3VA2110-7KP42-0AA0 | 10 W | 3.2 kg | 100 A | 40 A | 150 A |
| 3VA2110-7JQ42-0AA0 | 10 W | 2.744 kg | 100 A | 40 A | 150 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| product feature / for L-tripping / can be switched on/off | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
