3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum | adjustable setting current (InN) / for N-tripping — minimum | adjustable setting current (InN) / for N-tripping — maximum |
|---|---|---|---|---|---|
| 3VA1116-6EE42-0AA0 | 1.263 kg | 112 A | 1 600 A | 0 A | 0 A |
| 3VA1116-6EE36-0AA0 | 1.066 kg | 112 A | 1 600 A | 0 A | 0 A |
| 3VA1116-6ED32-0AA0 | 1.003 kg | 160 A | 1 600 A | 0 A | 0 A |

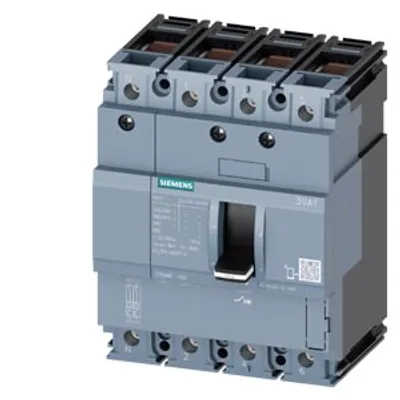

| 3VA1112-3GD46-0AA0 | 1.372 kg | 125 A | 1 250 A | 125 A | 125 A |
| 3VA1112-3EF36-0AA0 | 1.026 kg | 87 A | 625 A | 0 A | 0 A |

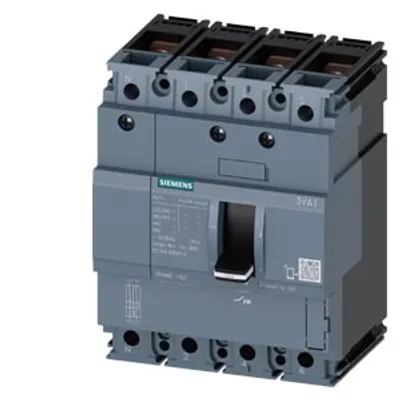

| 3VA1116-3ED42-0AA0 | 1.22 kg | 160 A | 1 600 A | 0 A | 0 A |
| 3VA1116-3ED36-0AA0 | 1.026 kg | 160 A | 1 600 A | 0 A | 0 A |
| 3VA1112-6GF42-0AA0 | 1.293 kg | 87 A | 625 A | 125 A | 125 A |
| 3VA1112-6GE46-0AA0 | 1.17 kg | 87 A | 1 250 A | 125 A | 125 A |
| 3VA1116-3FD46-0AA0 | 1.17 kg | 160 A | 1 600 A | 80 A | 80 A |
| 3VA1116-3FD42-0AA0 | 1.2 kg | 160 A | 1 600 A | 80 A | 80 A |
| 3VA1116-3EF46-0AA0 | 1.315 kg | 112 A | 800 A | 0 A | 0 A |
| 3VA1120-3ED22-0AA0 | 657 g | 20 A | 320 A | 0 A | 0 A |
| 3VA1120-3ED16-0AA0 | 404 g | 20 A | 320 A | 0 A | 0 A |
| 3VA1120-3ED12-0AA0 | 368 g | 20 A | 320 A | 0 A | 0 A |

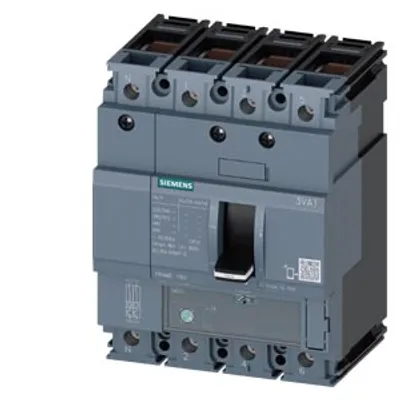

| 3VA1116-6GE46-0AA0 | 1.17 kg | 112 A | 1 600 A | 160 A | 160 A |
| 3VA1110-6ED36-0AA0 | 1.024 kg | 100 A | 1 000 A | 0 A | 0 A |
| 3VA1112-4FF46-0AA0 | 1.17 kg | 87 A | 625 A | 62 A | 62 A |

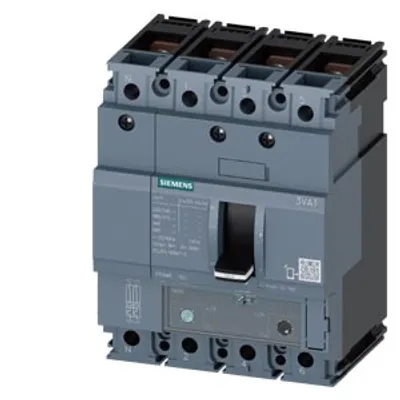

| 3VA1112-4FF42-0AA0 | 1.2 kg | 87 A | 625 A | 62 A | 62 A |
| 3VA1112-4FE46-0AA0 | 1.17 kg | 87 A | 1 250 A | 62 A | 62 A |
| 3VA1112-4FE42-0AA0 | 1.2 kg | 87 A | 1 250 A | 62 A | 62 A |
| 3VA1112-4FD46-0AA0 | 1.17 kg | 125 A | 1 250 A | 62 A | 62 A |
| 3VA1112-4EF42-0AA0 | 1.229 kg | 87 A | 625 A | 0 A | 0 A |
| 3VA1110-6GF46-0AA0 | 1.318 kg | 70 A | 500 A | 100 A | 100 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| protection function of the overcurrent release | LI |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
