3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 40 °C | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA1163-3EE36-0AA0 | 17.3 W | 981 g | 63 A | 44 A | 630 A |
| 3VA1140-4GD42-0AA0 | 10.8 W | 1.21 kg | 40 A | 40 A | 400 A |
| 3VA1125-3GD42-0AA0 | 8.5 W | 1.231 kg | 25 A | 25 A | 320 A |
| 3VA1140-5EF32-0AA0 | 10.8 W | 923 g | 40 A | 28 A | 200 A |
| 3VA1140-5EE46-0AA0 | 10.8 W | 1.27 kg | 40 A | 28 A | 400 A |
| 3VA1132-6GE42-0AA0 | 10.6 W | 1.251 kg | 32 A | 22 A | 320 A |
| 3VA1132-6GD46-0AA0 | 10.6 W | 1.301 kg | 32 A | 32 A | 320 A |
| 3VA1132-6EF46-0AA0 | 10.6 W | 1.284 kg | 32 A | 22 A | 160 A |
| 3VA1150-4EE32-0AA0 | 14.6 W | 921 g | 50 A | 35 A | 500 A |
| 3VA1150-4ED32-0AA0 | 14.6 W | 953 g | 50 A | 50 A | 500 A |
| 3VA1150-4ED12-0AA0 | 4.87 W | 0.376 kg | 50 A | 50 A | 500 A |
| 3VA1150-3GF46-0AA0 | 14.6 W | 1.307 kg | 50 A | 35 A | 250 A |
| 3VA1120-5EF36-0AA0 | 12 W | 1.032 kg | 20 A | 14 A | 160 A |
| 3VA1132-5EE42-0AA0 | 10.6 W | 1.201 kg | 32 A | 22 A | 320 A |
| 3VA1132-5ED42-0AA0 | 10.6 W | 1.198 kg | 32 A | 32 A | 320 A |
| 3VA1140-6EE42-0AA0 | 10.8 W | 1.213 kg | 40 A | 28 A | 400 A |
| 3VA1140-6EE36-0AA0 | 10.8 W | 1.028 kg | 40 A | 28 A | 400 A |
| 3VA1140-5GF42-0AA0 | 10.8 W | 1.18 kg | 40 A | 28 A | 200 A |
| 3VA1140-5GE46-0AA0 | 10.8 W | 1.344 kg | 40 A | 28 A | 400 A |

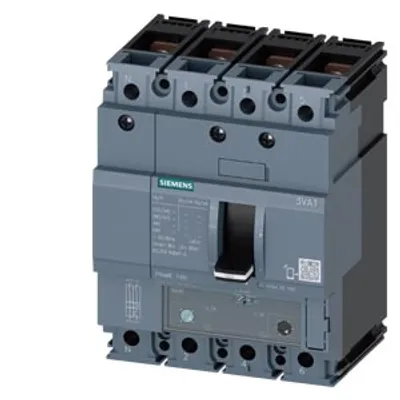

| 3VA1116-4EF42-0AA0 | 38 W | 1.227 kg | 160 A | 112 A | 800 A |
| 3VA1116-5ED36-0AA0 | 38 W | 1.04 kg | 160 A | 160 A | 1 600 A |
| 3VA1116-3EE42-0AA0 | 38 W | 1.289 kg | 160 A | 112 A | 1 600 A |
| 3VA1116-3EE36-0AA0 | 38 W | 1.029 kg | 160 A | 112 A | 1 600 A |
| 3VA1112-5MH36-0AA0 | 28.1 W | 1.058 kg | 125 A | — | 875 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
