3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 40 °C | operational current — at 45 °C | operational current — at 50 °C | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum |
|---|---|---|---|---|---|
| 3VA1196-4EF42-0AA0 | 1.185 kg | 16 A | 16 A | 16 A | 11 A |
| 3VA1216-5EF32-0AA0 | 1.59 kg | 160 A | 160 A | 160 A | 112 A |
| 3VA1196-6EE32-0AA0 | 924 g | 16 A | 16 A | 16 A | 11 A |
| 3VA1196-6ED46-0AA0 | 1.262 kg | 16 A | 16 A | 16 A | 16 A |

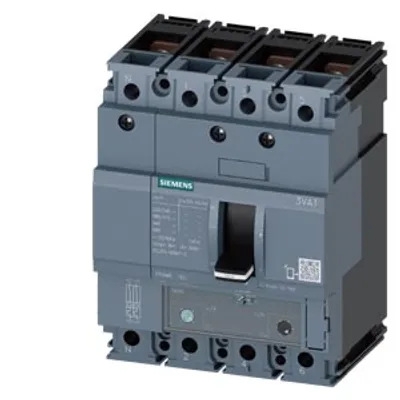

| 3VA1196-5GF42-0AA0 | 1.223 kg | 16 A | 16 A | 16 A | 11 A |
| 3VA1196-5EE42-0AA0 | 1.225 kg | 16 A | 16 A | 16 A | 11 A |
| 3VA1196-5EE36-0AA0 | 988 g | 16 A | 16 A | 16 A | 11 A |
| 3VA1163-6ED46-0AA0 | 1.267 kg | 63 A | 63 A | 63 A | 63 A |
| 3VA1196-3EE32-0AA0 | 950 g | 16 A | 16 A | 16 A | 11 A |
| 3VA1196-3ED46-0AA0 | 1.262 kg | 16 A | 16 A | 16 A | 16 A |
| 3VA1180-5ED36-0AA0 | 996 g | 80 A | 80 A | 80 A | 80 A |
| 3VA1180-3EF32-0AA0 | 921 g | 80 A | 80 A | 80 A | 56 A |

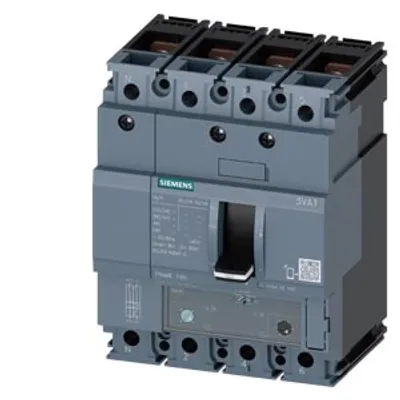

| 3VA1150-3EF42-0AA0 | 1.181 kg | 50 A | 50 A | 50 A | 35 A |
| 3VA1180-6EF32-0AA0 | 922 g | 80 A | 80 A | 80 A | 56 A |
| 3VA1180-6EE46-0AA0 | 1.291 kg | 80 A | 80 A | 80 A | 56 A |
| 3VA1180-6ED32-0AA0 | 919 g | 80 A | 80 A | 80 A | 80 A |

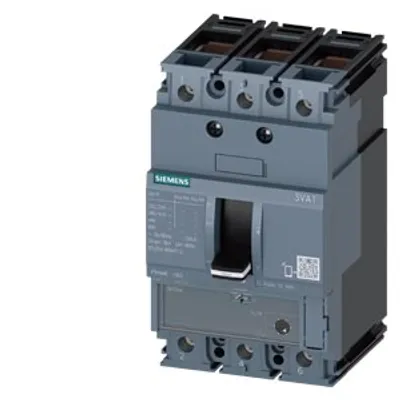

| 3VA1180-5MH36-0AA0 | 965 g | 80 A | 80 A | 80 A | — |
| 3VA1140-3EF36-0AA0 | 980 g | 40 A | 40 A | 40 A | 28 A |
| 3VA1150-3EF32-0AA0 | 921 g | 50 A | 50 A | 50 A | 35 A |
| 3VA1125-4GF42-0AA0 | 1.202 kg | 25 A | 25 A | 25 A | 17 A |
| 3VA1125-4GE46-0AA0 | 1.17 kg | 25 A | 25 A | 25 A | 17 A |
| 3VA1132-4GD42-0AA0 | 1.235 kg | 32 A | 32 A | 32 A | 32 A |
| 3VA1132-4EF46-0AA0 | 1.297 kg | 32 A | 32 A | 32 A | 22 A |
| 3VA1163-3EE42-0AA0 | 1.18 kg | 63 A | 63 A | 63 A | 44 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| mechanical service life (operating cycles) / typical | 20 000 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
