EPP3xxx | Analog input Parts
Beckhoff
EPP3744-1041EtherCAT P Box, 4-channel analog input + 8-channel digital combi, pressure, 0…7000 hPa (0…+7 bar), M8
Beckhoff
EPP4314-1002EtherCAT P Box, 2-channel analog input + 2-channel analog output, multi-function, ±20 mA, 16 bit, differential, M12
Beckhoff
EPP4374-0002EtherCAT P Box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12
Beckhoff
EPP3744-0041EtherCAT P Box, 4-channel analog input + 8-channel digital combi, pressure, 0…1000 hPa (0…+1 bar), M8
Beckhoff
EPP3174-0002EtherCAT P Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12
Beckhoff

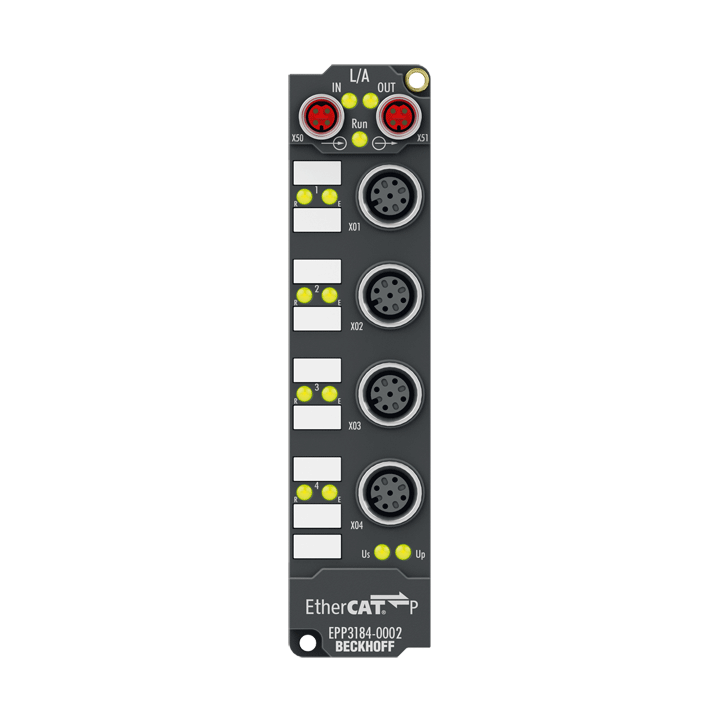

EPP3184-0002EtherCAT P Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12
Beckhoff
EPP3184-0802EtherCAT P Box, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, HART
Beckhoff

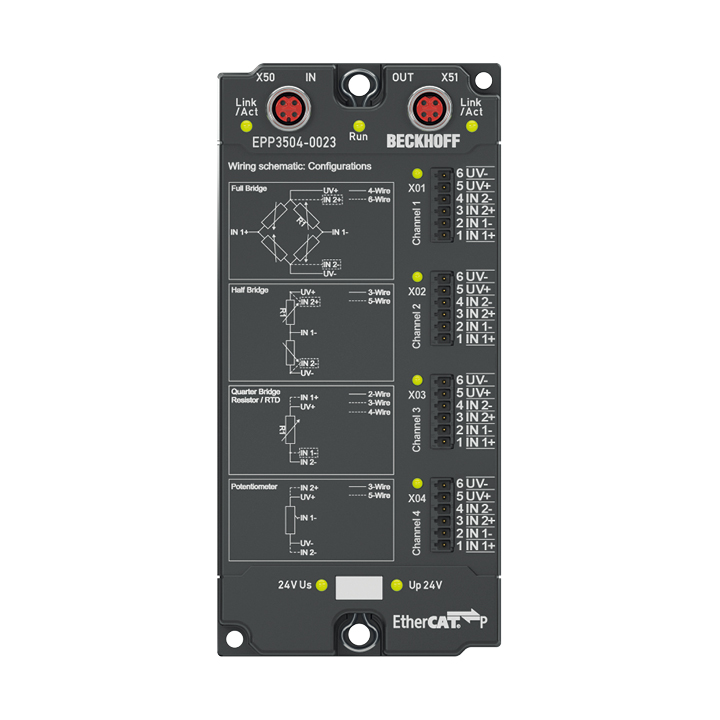

EPP3504-0023EtherCAT P Box, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps, IP20 connector
Beckhoff
EPP3356-0022EtherCAT P Box, 1-channel analog input, measuring bridge, full bridge, 24 bit, M12
Beckhoff

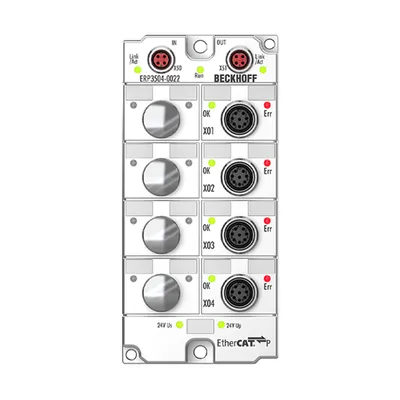

ERP3504-0022EtherCAT P Box, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps
Beckhoff

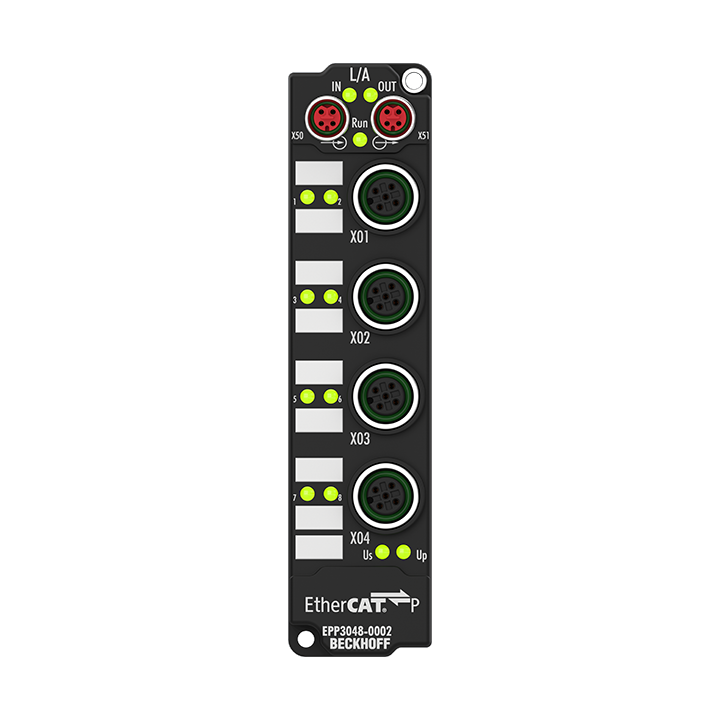

EPP3048-0002EtherCAT P Box, 8-channel analog input, current, ±20 mA, 16 bit, single-ended, 2 ksps, M12
Compare EPP3xxx | Analog input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Distributed clocks | Current consumption from US | Weight | Approvals/markings | Dimensions (W x H x D) |
|---|---|---|---|---|---|
| EPP3754-0002 | no | ~ 120 mA | approx. 200 g | CE, UL (in preparation) | 30 mm x 126 mm x 26.5 mm |
| EPP3632-0001 | yes | — | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3744-1041 | yes | — | — | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP4314-1002 | — | 120 mA | — | CE | 30 mm x 126 mm x 26.5 mm |
| EPP4374-0002 | — | typ. 100 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3744-0041 | yes | typ. 100 mA | — | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3314-0002 | – | typ. 100 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3174-0002 | yes | typ. 100 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3184-0002 | yes | typ. 100 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3204-0002 | – | typ. 100 mA | approx. 165 g | CE, UL | 30 mm x 126 mm x 26.5 mm |
| EPP3752-0000 | – | 120 mA | — | CE, UL (in preparation) | 30 mm x 126 mm x 26.5 mm |
| EPP3184-0802 | yes | typ. 100 mA | approx. 165 g | CE, UL (in preparation) | 30 mm x 126 mm x 26.5 mm |
| EPP3504-0023 | yes, accuracy 1 µs | typ. 150 mA | approx. 250 g | CE, UL (in preparation) | 60 mm x 126 mm x 26.5 mm |
| EPP3356-0022 | yes | typ. 100 mA | approx. 250 g | CE, UL (in preparation) | 60 mm x 126 mm x 26.5 mm |
| ERP3504-0022 | yes, accuracy 1 µs | typ. 150 mA | approx. 250 g | CE, UL (in preparation) | 60 mm x 126 mm x 26.5 mm |
| EPP3048-0002 | – | — | approx. 165 g | CE, UL (in preparation) | 30 mm x 126 mm x 26.5 mm |
| EPP3754-0702 | no | 120 mA | approx. 200 g | CE, UL (in preparation) | 30 mm x 155 mm x 26.5 mm |
Common to all listed parts
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
