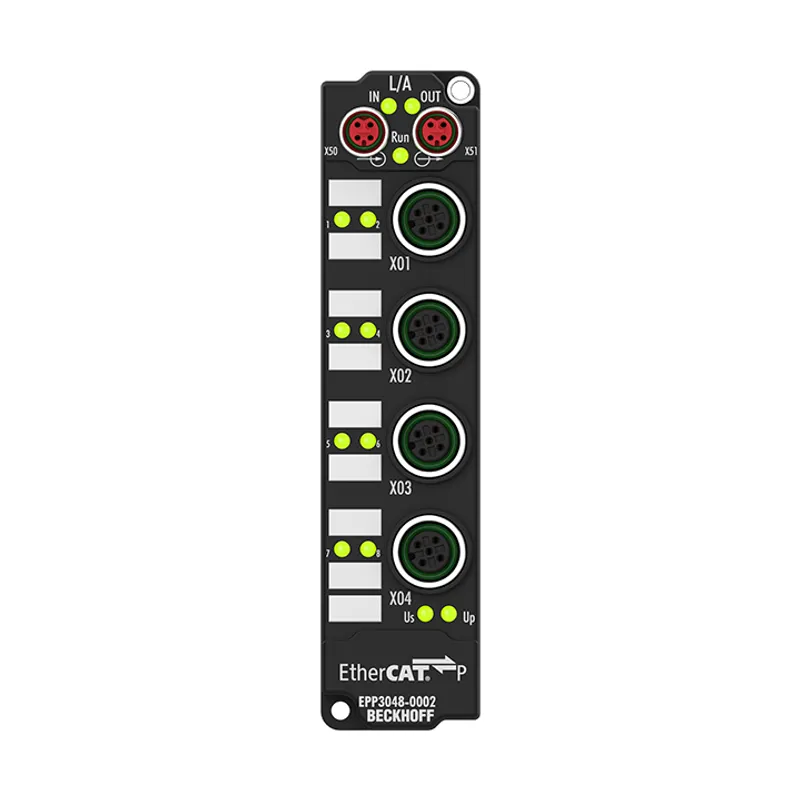

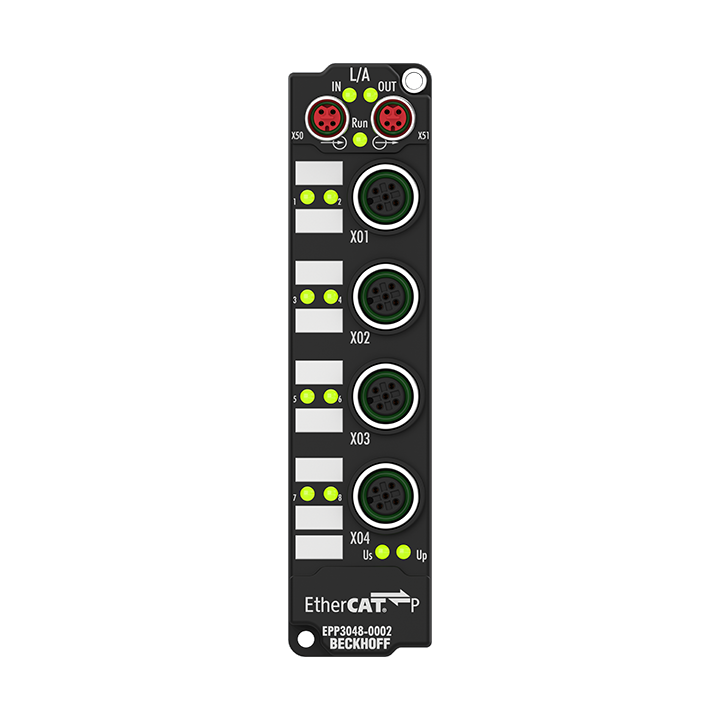

Beckhoff EPP3048-0002

EtherCAT P Box, 8-channel analog input, current, ±20 mA, 16 bit, single-ended, 2 ksps, M12

MPN: EPP3048-0002
Category: EPP3xxx | Analog input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP3048-0002?

The EPP3048-0002 EtherCAT P Box has eight channels and processes 20 mA standard signals with 16-bit resolution and up to 2000 measured values per second. Each channel can be parameterized individually via the controller/TwinCAT; signals in the range of

Specifications

Function	power measurement
Ground reference (input)	single-ended
Max. sampling rate	min. 500 µs (max. 2 ksps) per channel
Sampling type	multiplex, approx. 60 µs delay between channels
Internal resistance	typ. 100 Ω
Sensor supply	from load supply voltage, max. 0.5 A, short-circuit proof in total
Input filter limit frequency	1.2 kHz
Rise time	3 ms typ. (0…90%)
Dielectric strength	max. 30 V (voltage and current measurement)
Overcurrent protection	typ. 50 mA
Measuring range, nominal	-20/0/+4…+20 mA
Measuring range, technical	-21.47…+21.47 mA
Resolution	16 bit (incl. sign)
Measurement error/uncertainty	±0.3% (relative to full scale value)
Electrical isolation channel/channel	no
Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of inputs	8
Input connections	M12 x 1, 5-pin, a-coded
Distributed clocks	–
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
