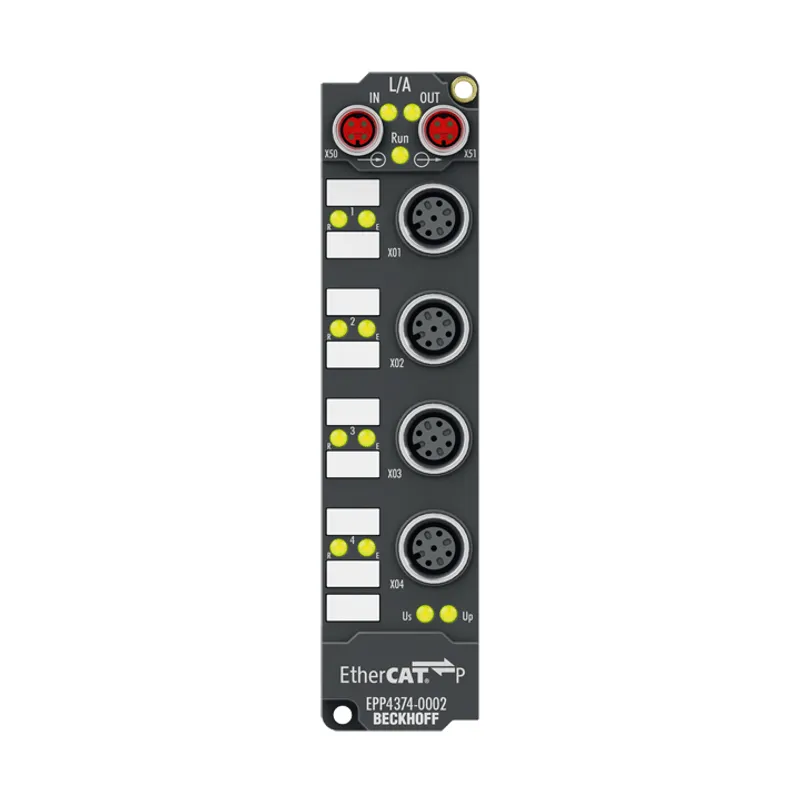

Beckhoff EPP4374-0002
EtherCAT P Box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12
- MPN
- EPP4374-0002
- Category
- EPP3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EPP4374-0002?
The EPP4374-0002 EtherCAT P Box combines two analog inputs and two analog outputs which can be individually parameterized, so that they process/generate signals either in the -10…+10 V or the 0/4…20 mA range. The resolution of the current signals is
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Number of channels | 2 analog outputs + 2 analog inputs |
| Number of outputs | 2 |
| Number of inputs | 2 |
| Input/output connections | M12 x 1, 5-pin, a-coded |
| Signal type | -10/0…+10 V | 0/4…20 mA, parameterizable per channel |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load | output: > 5 kΩ | 500 Ω |
| Internal resistance | input: > 200 kΩ | typ. 85 Ω + diode voltage |
| Resolution | 16 bit |
| Conversion time | input: ~ 100 µs, output: ~ 40 µs |
| Measurement error/uncertainty | input: 0.3%, output: 0.1% (each relative to full scale value) |
| Actuator supply | from the auxiliary voltage UP |
| Electrical isolation | 500 V |
| Current consumption from US | typ. 100 mA |
| Special features | combi module, current or voltage parameterizable per channel |
| Weight | approx. 165 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
EPP4374-0002: frequently asked questions
When can EPP4374-0002 be shipped?
EPP4374-0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EPP4374-0002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EPP4374-0002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPP4374-0002, subject to availability and destination.
