Beckhoff EPP3314-0002
EtherCAT P Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12
- MPN
- EPP3314-0002
- Category
- EPP3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EPP3314-0002?

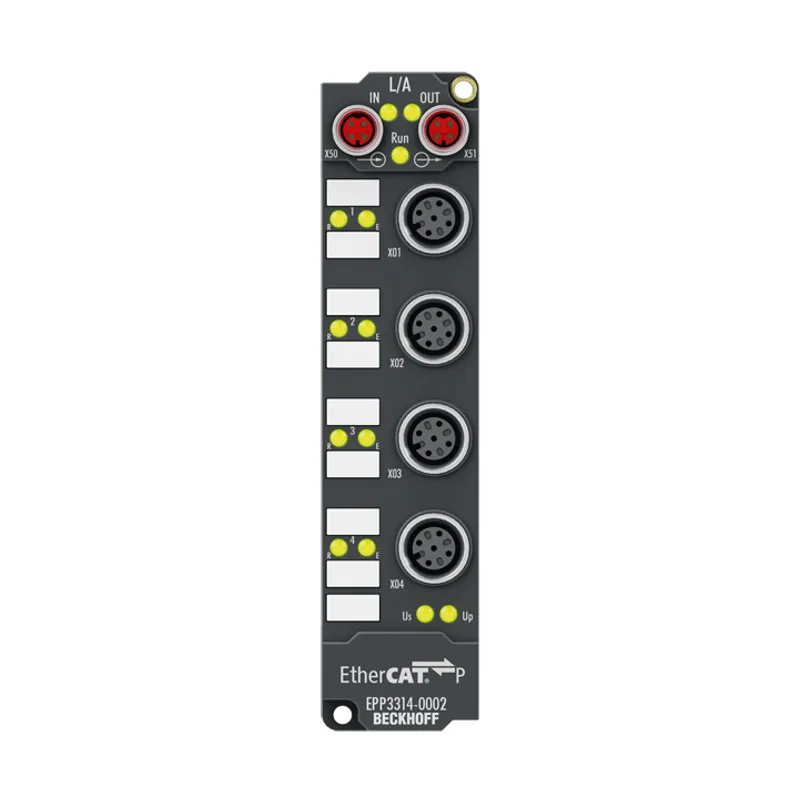

The EPP3314-0002 EtherCAT P Box with analog inputs permits four thermocouples to be directly connected. The module’s circuit can operate thermocouple sensors using the 2-wire technique. Linearization over the full temperature range is realized with the
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Number of inputs | 4 |
| Connection method | M12 socket, 2-wire connection for thermocouple |
| Conversion time | approx. 2.5 s up to 20 ms, depending on configuration and filter setting, see documentation, default: approx. 250 ms |
| Voltage measurement | ±30/±60/±75 mV |
| Resolution | 16 bit, representation adjustable: 0.1/0.01°C or 1/2/4 µV per digit |
| Sensor types | types B, C, E, J, K, L, N, R, S, T, U (default setting type K), mV measurement |
| Signal type | thermocouple |
| Measuring range | depending on sensor type; preset value is type K, -100…+1370°C |
| Measurement error/uncertainty | ±0.3% for type K (relative to full scale value; further types see documentation) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | – |
| Input filter | 5 variations, configurable |
| Sensor supply | – |
| Current consumption from US | typ. 100 mA |
| Electrical isolation | 500 V |
| Special features | open-circuit recognition |
| Weight | approx. 165 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
