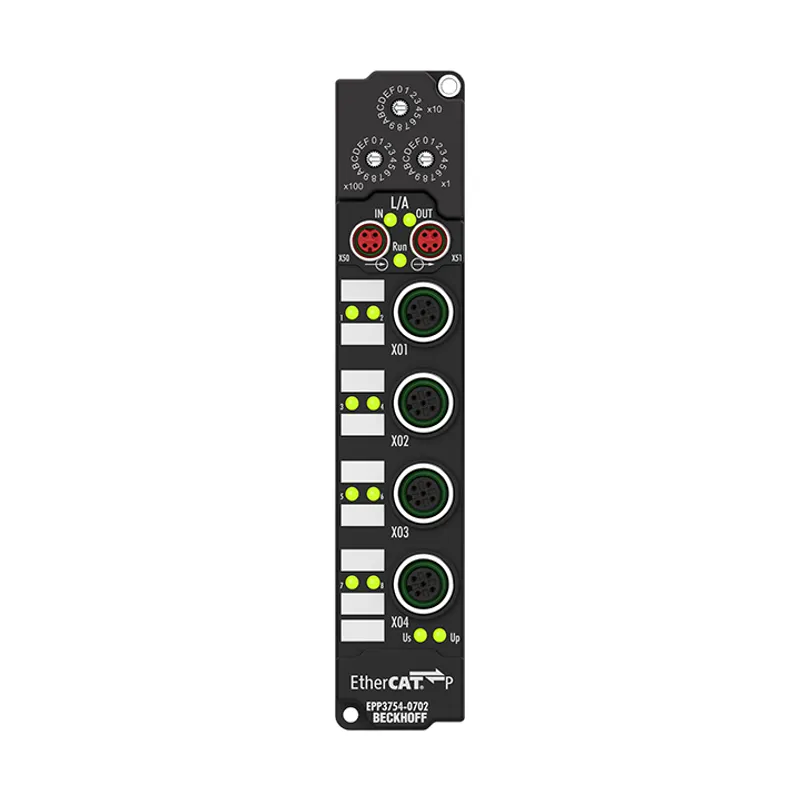

Beckhoff EPP3754-0702
EtherCAT P Box, 4-channel analog input, ID switch, multi-function, M12
- MPN
- EPP3754-0702
- Category
- EPP3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EPP3754-0702?
The EPP3754-0702 EtherCAT P Box has four analog multi-functional inputs, which can be parameterized individually and extensively: – voltage measurement: ±10 V, 0...10 V, 0...5 V – current measurement: ±20 mA, 4...20 mA, 0...20 mA – resistance
Specifications
Specifications
| Conversion time | ~ 100 µs |
| Resolution | 16 bit (incl. sign) |
| Sensor types | analog sensors, thermocouple: type B, C, E, J, K, L, N, R, S, T, U, mV measurement, temperature: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1.2/4 kΩ) |
| Signal type | -10/0...+10 V | -20mA/0/4...20 mA, RTD/Pt100/Pt1000, ±30/±60/±75 mV (thermocouple), parameterizable per channel |
| Common-mode voltage UCM | max. 15 V |
| Internal resistance | > 200 kΩ | typ. 85 Ω + diode voltage |
| Measurement error/uncertainty | ±0.3% (relative to full scale value) |
| Input filter limit frequency | 5 kHz |
| Input filter | configurable |
| Sensor supply | from load supply voltage, max. 0.5 A, short-circuit proof in total |
| Operating temperature | -25…+60°C |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Number of configurable IDs | 4096 |
| Number of inputs | 4 |
| Input connections | M12 x 1, 5-pin, a-coded |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | no |
| Current consumption from US | 120 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Weight | approx. 200 g |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL (in preparation) |
| Dimensions (W x H x D) | 30 mm x 155 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
EPP3754-0702: frequently asked questions
When can EPP3754-0702 be shipped?
EPP3754-0702 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EPP3754-0702 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EPP3754-0702 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPP3754-0702, subject to availability and destination.
