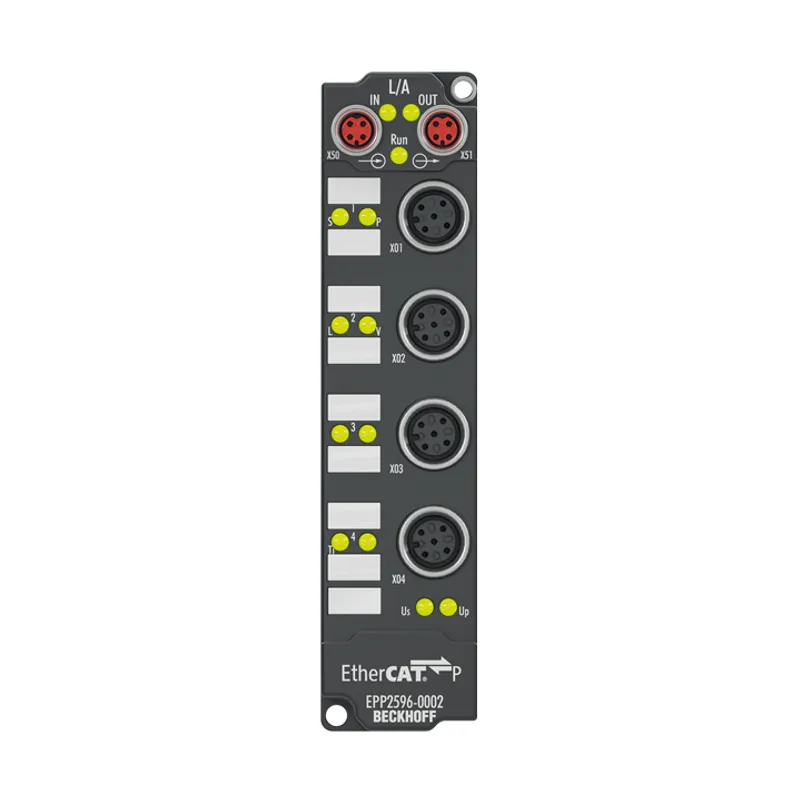

Beckhoff EPP2596-0002

EtherCAT P Box, 1-channel LED output, 0…24 V DC, 3 A, M12

MPN: EPP2596-0002
Category: EPP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP2596-0002?

The EPP2596-0002 LED strobe control box contains a flexible power supply unit that supplies the LED with the required current and voltage. Applications from continuous light to short light pulses in the kHz range are thus possible. Each individual flash

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of outputs	1
Output connections	M12 x 1, 5-pin, a-coded
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0…3 A in pulsed mode (depending on output voltage and duty cycle) 0…1.2 A in continuous mode
Trigger output (to camera)	24 V DC
Trigger input (from camera)	24 V DC
Switching times	typ. TON: 1 µs, typ. TOFF: 1 µs, pulses from 25 µs…10 s
Distributed clocks	yes
Distributed clock precision	1 µs
Output voltage	continuous light mode : 0…UIN continuous light operation PWM: 0…(UIN - 0.5 V) pulsed operation (0…2 A): 0…(UIN - 2 V) pulsed operation (3 A): 0…(UIN - 3 V) linear behavior of the maximum output voltage between 2 A and 3 A
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Special features	constant voltage, constant current and PWM as available operating modes, extensive real-time diagnostics, continuous LED operation, RGB/common anode operation
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
