Beckhoff EPP2839-0022

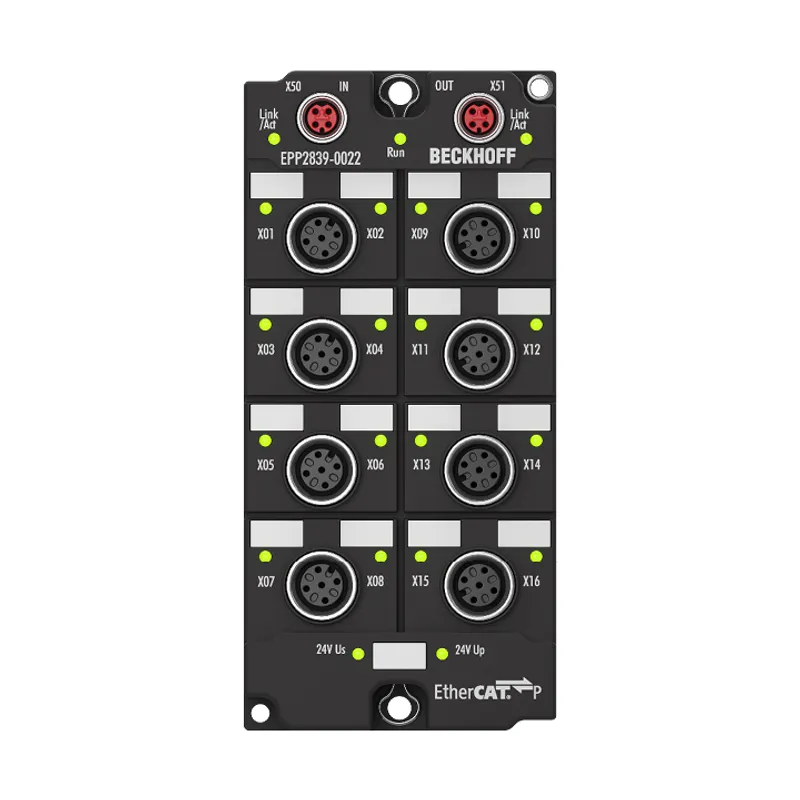

EtherCAT P Box, 16-channel digital output, 24 V DC, 0.5 A, M12, with extended diagnostics

MPN: EPP2839-0022
Category: EPP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP2839-0022?

The EPP2839-0022 EtherCAT P Box module is intended for processing digital/binary signals. It connects the binary control signals of the automation device to the actuators at process level. The outputs each process an output current of up to 0.5 A.

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of outputs	16
Output connections	M12 x 1, 5-pin, a-coded
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 3 A from UP
Switching times	typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current	max. 1.5 A
Distributed clocks	yes
Current consumption from US	typ. 100 mA
Auxiliary power current	typ. 20 mA + load
Diagnostics	short circuit, open load detection, undervoltage
Electrical isolation	500 V
Weight	approx. 250 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
