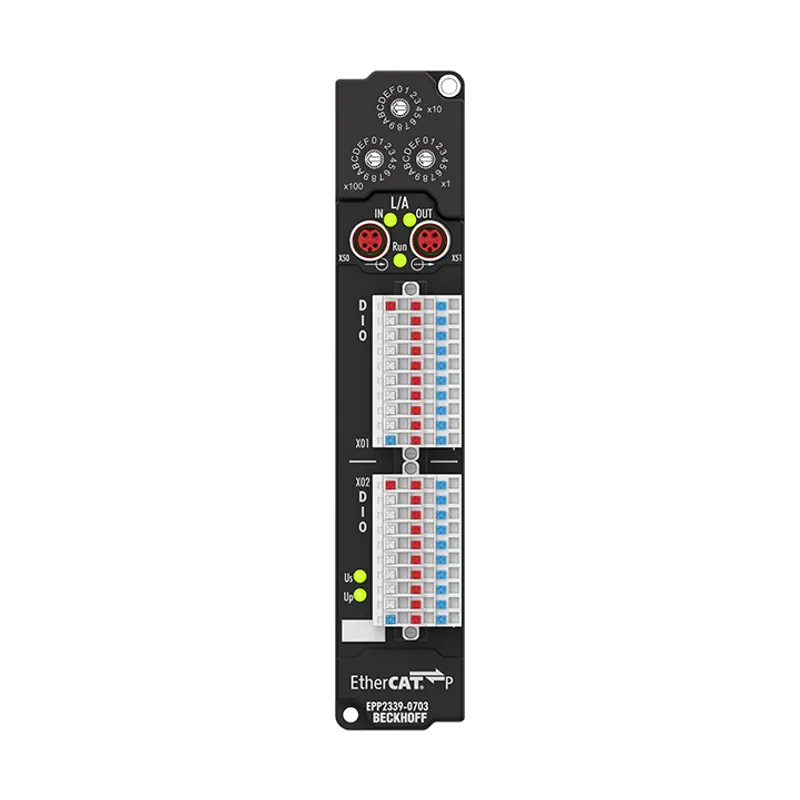

Beckhoff EPP2339-0703

EtherCAT P Box, 16-channel digital combi, ID switch, 24 V DC, 3 ms, 0.5 A, IP20 connector

MPN: EPP2339-0703
Category: EPP2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP2339-0703?

The EPP2339-0703 EtherCAT P Box has 16 digital channels, each of which can be operated as input or output. It is not necessary to configure whether a channel is to be used as input or output. The input circuit is permanently connected to the output

Specifications

Specification	EN 61131-2, type 1/3
Input filter	3.0 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA
Sensor supply	from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 3 A
Switching times	typ. TON: 25 µs, typ. TOFF: 75 µs
Short-circuit current	typ. 1.5 A
Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of configurable IDs	4096
Number of channels	16 digital inputs or outputs
Input/output connections	connector with spring-loaded system
Auxiliary power current	typ. 20 mA
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Weight	approx. 200 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	30 mm x 155 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
