EP6xxx | Communication Parts

Beckhoff EP6228-3034 – EtherCAT Box, 8-channel communication interface, IO-Link, master, Class B, M12, L-coded

Beckhoff

EtherCAT Box, 8-channel communication interface, IO-Link, master, Class B, M12, L-coded

Beckhoff EP6228-0044 – EtherCAT Box, 8-channel communication interface + 8-channel digital combi, IO-Link, master, Class A, M12, L-coded

Beckhoff

EtherCAT Box, 8-channel communication interface + 8-channel digital combi, IO-Link, master, Class A, M12, L-coded

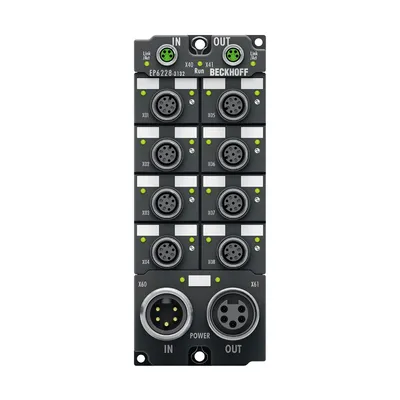

Beckhoff EP6228-3132 – EtherCAT Box, 8-channel communication interface + 4-channel digital input, IO-Link, master, Class A, Class B, M12

Beckhoff

EtherCAT Box, 8-channel communication interface + 4-channel digital input, IO-Link, master, Class A, Class B, M12

Beckhoff EP6224-2022 – EtherCAT Box, 4-channel communication interface, IO-Link, master, Class A, M12

Beckhoff

EtherCAT Box, 4-channel communication interface, IO-Link, master, Class A, M12

Beckhoff EP6224-3022 – EtherCAT Box, 4-channel communication interface, IO-Link, master, Class B, M12

Beckhoff

EtherCAT Box, 4-channel communication interface, IO-Link, master, Class B, M12

Beckhoff EP6228-0022 – EtherCAT Box, 8-channel communication interface, IO-Link, master, Class A, M12

Beckhoff

EtherCAT Box, 8-channel communication interface, IO-Link, master, Class A, M12

Beckhoff EP6228-3032 – EtherCAT Box, 8-channel communication interface, IO-Link, master, Class B, M12

Beckhoff

EtherCAT Box, 8-channel communication interface, IO-Link, master, Class B, M12

Beckhoff EP6001-0002 – EtherCAT Box, 1-channel communication interface, serial, RS232/RS422/RS485, M12

Beckhoff

EtherCAT Box, 1-channel communication interface, serial, RS232/RS422/RS485, M12

Beckhoff EP6002-0002 – EtherCAT Box, 2-channel communication interface, serial, RS232/RS422/RS485, M12

Beckhoff

EtherCAT Box, 2-channel communication interface, serial, RS232/RS422/RS485, M12

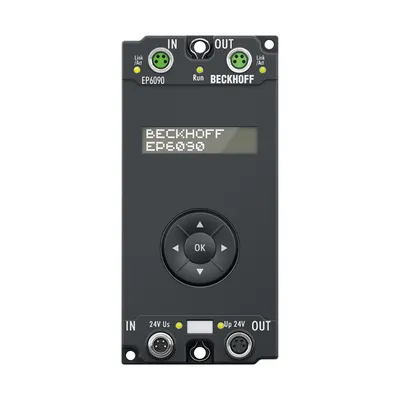

Beckhoff EP6090-0000 – EtherCAT Box, display with navigation switch, operating hours counter

Beckhoff

EtherCAT Box, display with navigation switch, operating hours counter

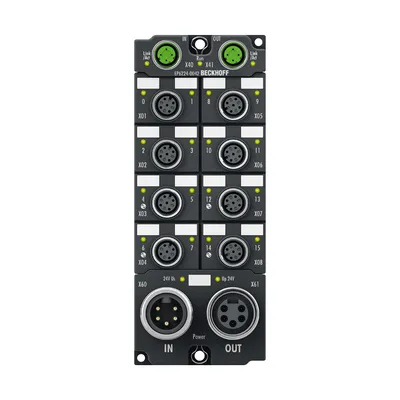

Beckhoff EP6224-0042 – EtherCAT Box, 4-channel communication interface + 8-channel digital input, IO-Link, master, Class A, M12

Beckhoff

EtherCAT Box, 4-channel communication interface + 8-channel digital input, IO-Link, master, Class A, M12

Beckhoff EP6228-0042 – EtherCAT Box, 8-channel communication interface + 8-channel digital input, IO-Link, master, Class A, M12

Beckhoff

EtherCAT Box, 8-channel communication interface + 8-channel digital input, IO-Link, master, Class A, M12

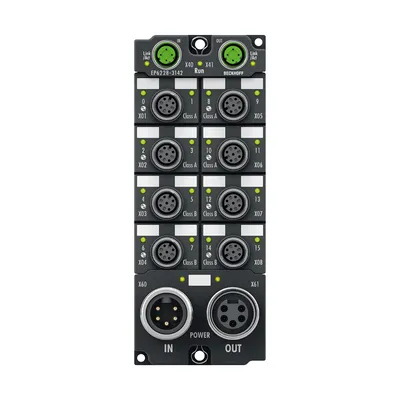

Beckhoff EP6228-3142 – EtherCAT Box, 8-channel communication interface + 4-channel digital input, IO-Link, master, Class A, Class B, M12

Beckhoff

EtherCAT Box, 8-channel communication interface + 4-channel digital input, IO-Link, master, Class A, Class B, M12

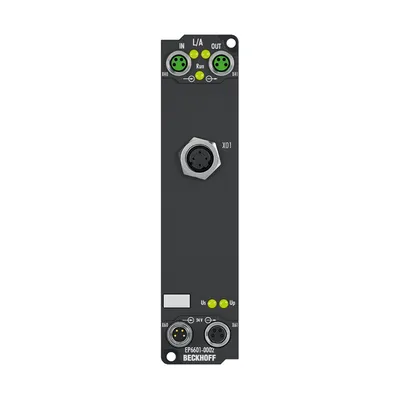

Beckhoff EP6601-0002 – EtherCAT Box, 1-port communication interface, Ethernet switch port

Beckhoff

EtherCAT Box, 1-port communication interface, Ethernet switch port

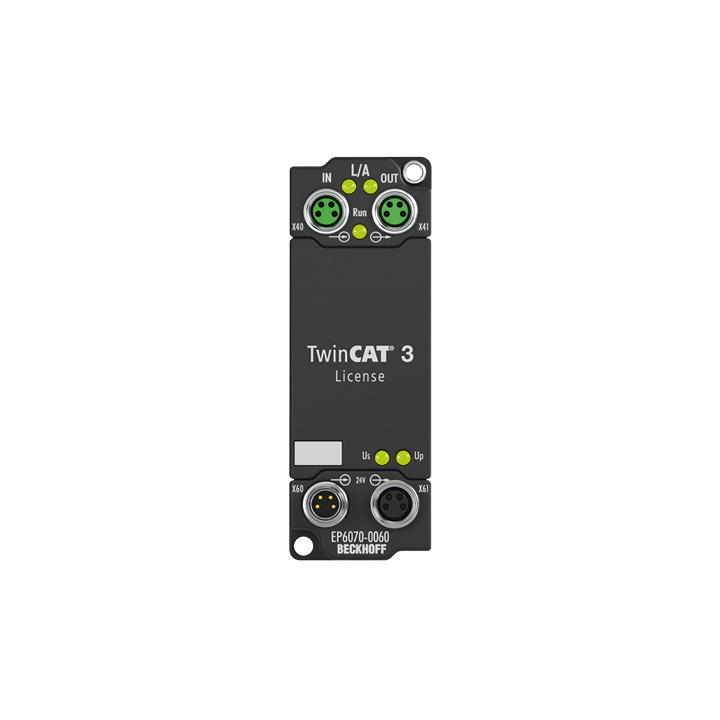

Beckhoff EP6070-0060 – EtherCAT Box, license key for TwinCAT 3.1

Beckhoff

EtherCAT Box, license key for TwinCAT 3.1

Beckhoff EP6224-0002 – EtherCAT Box, 4-channel communication interface + 4-channel digital input, IO-Link, master, Class A, M12

Beckhoff

EtherCAT Box, 4-channel communication interface + 4-channel digital input, IO-Link, master, Class A, M12

Beckhoff EP6224-3002 – EtherCAT Box, 4-channel communication interface, IO-Link, master, Class B, M12

Beckhoff

EtherCAT Box, 4-channel communication interface, IO-Link, master, Class B, M12

Beckhoff EP6080-0000 – EtherCAT Box, 1-channel communication interface, memory, 128 kByte, NOVRAM

Beckhoff

EtherCAT Box, 1-channel communication interface, memory, 128 kByte, NOVRAM

Beckhoff EP6224-0092 – EtherCAT Box, 4-channel communication interface + 4-channel digital input, IO-Link, master, Class A, M12, TwinSAFE SC

Beckhoff

EtherCAT Box, 4-channel communication interface + 4-channel digital input, IO-Link, master, Class A, M12, TwinSAFE SC

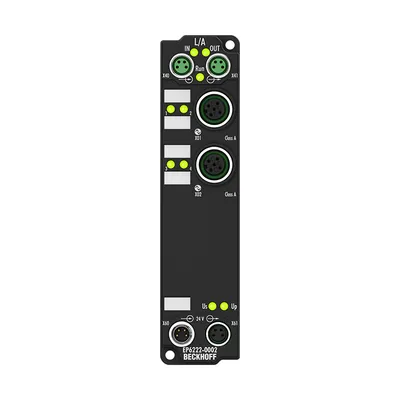

Beckhoff EP6222-0002 – EtherCAT Box, 2-channel communication interface + 2-channel digital input, IO-Link, master, Class A, M12

Beckhoff

EtherCAT Box, 2-channel communication interface + 2-channel digital input, IO-Link, master, Class A, M12

Compare EP6xxx | Communication

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Bus interface	Current consumption from US	Weight	Approvals/markings	Dimensions (W x H x D)
EP6228-3034	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6228-0044	2 x M12 socket, 4-pin, D-coded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6228-3132	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6224-2022	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + load	approx. 250 g	CE, UL	60 mm x 126 mm x 26.5 mm
EP6224-3022	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + load	approx. 250 g	CE, UL	60 mm x 126 mm x 26.5 mm
EP6228-0022	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + load	approx. 250 g	CE, UL	60 mm x 126 mm x 26.5 mm
EP6228-3032	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6001-0002	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + sensor supply	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EP6002-0002	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + sensor supply	approx. 165 g	CE, UL, ATEX, IECEx	30 mm x 126 mm x 26.5 mm
EP6090-0000	2 x M8 socket, 4-pin, a-coded, shielded	typ. 130 mA + sensor supply	approx. 230 g	CE, UL	60 mm x 126 mm x 26.5 mm
EP6224-0042	2 x M12 socket, 4-pin, D-coded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6228-0042	2 x M12 socket, 4-pin, D-coded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6228-3142	2 x M12 socket, 4-pin, D-coded	typ. 130 mA + load	approx. 440 g	CE, UL (in preparation)	60 mm x 150 mm x 26.5 mm
EP6601-0002	2 x M8 socket, 4-pin, a-coded, shielded	typ. 120 mA	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EP6070-0060	2 x M8 socket, 4-pin, a-coded, shielded	typ. 120 mA	approx. 95 g	CE, UL	30 mm x 86 mm x 22 mm
EP6224-0002	2 x M8 socket, 4-pin, a-coded, shielded	typ. 100 mA	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EP6224-3002	2 x M8 socket, 4-pin, a-coded, shielded	typ. 100 mA	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EP6080-0000	2 x M8, shielded	typ. 120 mA	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EP6224-0092	2 x M8 socket, 4-pin, a-coded, shielded	typ. 100 mA	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm
EP6222-0002	2 x M8 socket, 4-pin, a-coded, shielded	typ. 100 mA	approx. 165 g	CE, UL	30 mm x 126 mm x 26.5 mm

Common to all listed parts

Protocol	EtherCAT
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Material	PA6 (polyamide)
