Beckhoff EP6224-0092

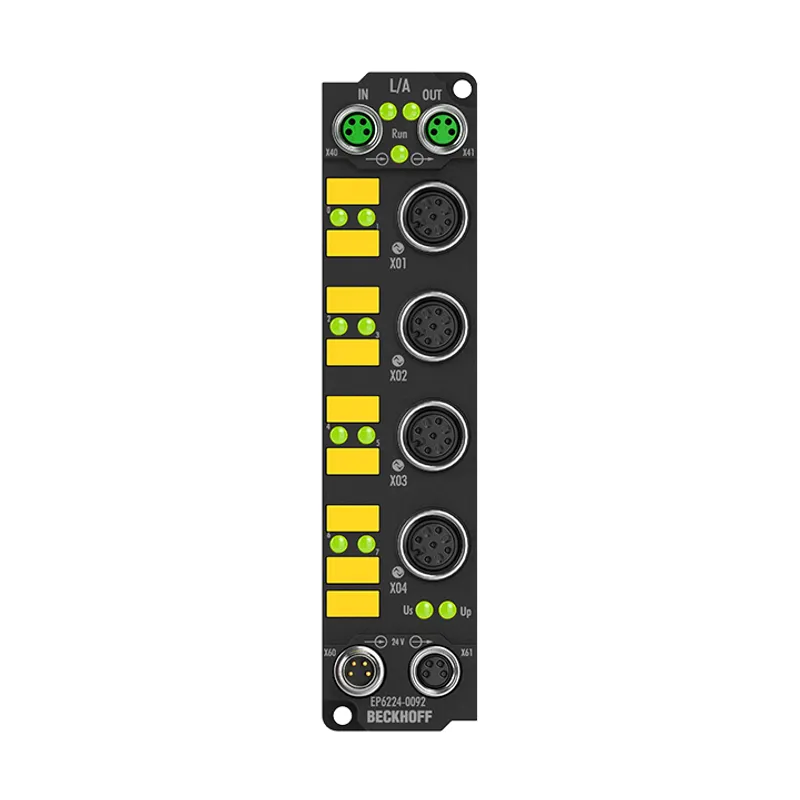

EtherCAT Box, 4-channel communication interface + 4-channel digital input, IO-Link, master, Class A, M12, TwinSAFE SC

MPN: EP6224-0092
Category: EP6xxx | Communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP6224-0092?

The EP6224-0092 IO-Link module enables up to four IO-Link devices to be connected. These can be actuators, sensors, or a combination of both. In addition, the EP6224-0092 offers four further digital inputs on the free pins of the M12 ports. The

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Connection method	M12 socket, 5-pin, a-coded
Number of inputs	4 digital inputs
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 6 mA input current (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Specification version	IO-Link V1.1, Class A, Data transfer rates: 4.8 kbaud, 38.4 kbaud and 230.4
IO-Link interfaces	4
Nominal voltage	24 V DC (-15%/+20%)
Distributed clocks	yes
IO-Link sensor supply L+	24 V DC, 1.4 A per port, ∑ 4 A
IO-Link extra power P24	–
Current consumption from US	typ. 100 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	TwinSAFE SC, each channel parameterizable in TwinCAT
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
