EP6224-0002EtherCAT Box, 4-channel communication interface + 4-channel digital input, IO-Link, master, Class A, M12

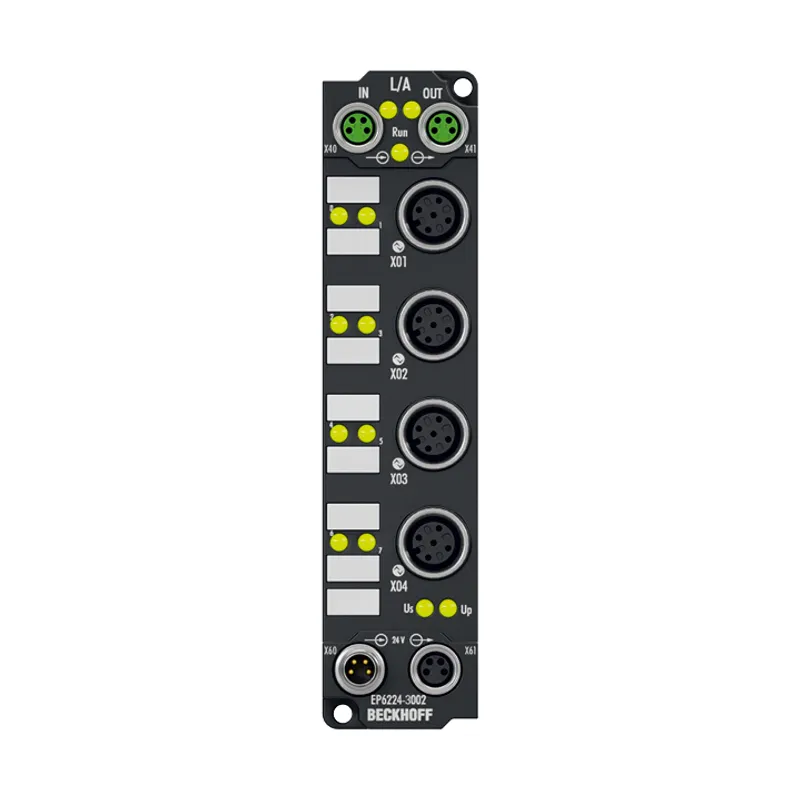

Beckhoff EP6224-3002
EtherCAT Box, 4-channel communication interface, IO-Link, master, Class B, M12
- MPN
- EP6224-3002
- Category
- EP6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP6224-3002?
The EP6224-3002 IO-Link module enables the connection of up to four IO-Link devices. These can be actuators, sensors or a combination of both. An additional supply voltage is available on the Class B ports for IO-Link devices with higher power
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Data transfer rates | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| Connection method | M12 socket, 5-pin, a-coded |
| Specification version | IO-Link V1.1, Class B |
| IO-Link interfaces | 4 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Distributed clocks | yes |
| IO-Link sensor supply L+ | 24 V DC, 1.4 A per port, ∑ 4.0 A for 4 ports |
| IO-Link extra power P24 | 24 V DC, 2.0 A per port, ∑ 4.0 A for 4 ports |
| Current consumption from US | typ. 100 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | IO-Link master, Class B, in slim housing |
| Weight | approx. 165 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
