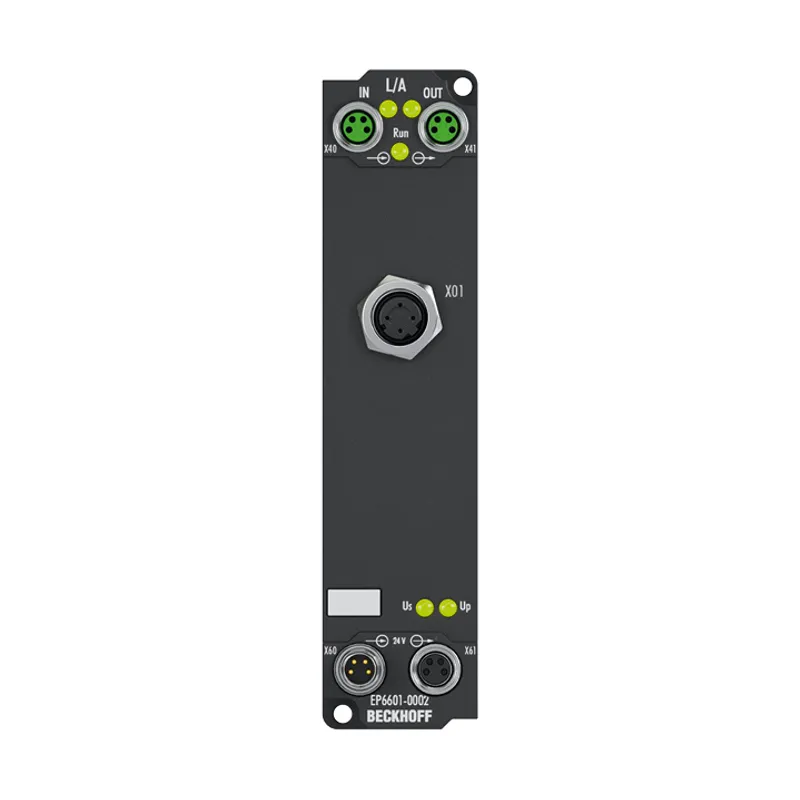

Beckhoff EP6601-0002
EtherCAT Box, 1-port communication interface, Ethernet switch port
- MPN
- EP6601-0002
- Category
- EP6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP6601-0002?
The EP6601-0002 Ethernet switch port module is used for the decentralized connection of Ethernet devices to the EtherCAT Box network. The EtherCAT system relays the Ethernet communication of the connected devices fully transparent and collision-free. The
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Bus system | all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode |
| Ethernet interface | 10BASE-T/100BASE-TX Ethernet, M12, D-coded, 4-pin |
| Data transfer rates | 10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings |
| Cable length | up to 100 m twisted pair |
| Number of ports | 1 |
| Hardware diagnostics | status LEDs |
| Nominal voltage | 24 V (-15%/+20%) |
| Distributed clocks | – |
| Current consumption from US | typ. 120 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Configuration | no |
| Special features | support of RT Ethernet, publisher/subscriber, DHCP/BootP server |
| Weight | approx. 165 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
EP6601-0002: frequently asked questions
When can EP6601-0002 be shipped?
EP6601-0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EP6601-0002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EP6601-0002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EP6601-0002, subject to availability and destination.
