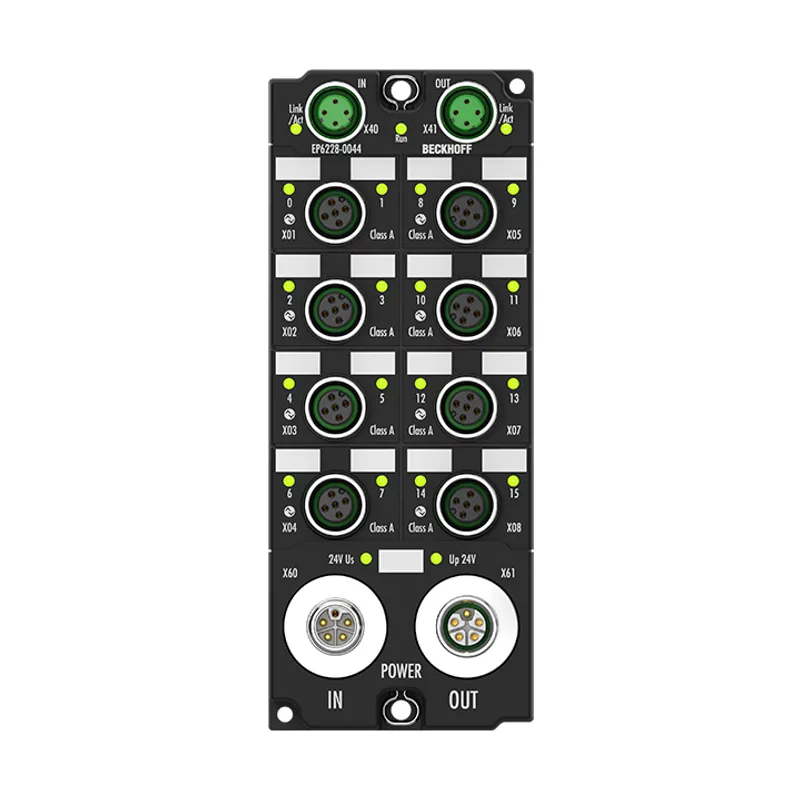

Beckhoff EP6228-0044

EtherCAT Box, 8-channel communication interface + 8-channel digital combi, IO-Link, master, Class A, M12, L-coded

MPN: EP6228-0044
Category: EP6xxx | Communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP6228-0044?

The EP6224-0044 IO-Link master module enables connection of up to eight IO-Link devices. These can be IO-Link box modules, actuators, sensors or combinations of both. In addition, the EP6224-0044 offers eight further digital inputs or outputs on the

Specifications

Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Load type	ohmic, inductive, lamp load
Switching times	typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current	typ. 1.9 A
Data transfer rates	4.8 kbaud, 38.4 kbaud and 230.4 kbaud
Specification version	IO-Link V1.1, Class A
IO-Link interfaces	8
IO-Link sensor supply L+	24 V DC, 1.6 A per port, ∑ 16 A for 8 ports
IO-Link extra power P24	–
IO-Link (C/Q)	max. 500 mA in DO mode
Protocol	EtherCAT
Bus interface	2 x M12 socket, 4-pin, D-coded
Connection method	M12 socket, 5-pin, a-coded
Number of inputs	8 additional digital inputs or outputs
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 16 A
Nominal voltage	24 V DC (-15%/+20%)
Distributed clocks	yes
Current consumption from US	typ. 130 mA + load
Power supply connection	feed: 1 x M12 plug, L-coded, 4 + FE, downstream connection: 1 x M12 socket, L-coded, 4+ FE
Electrical isolation	500 V
Weight	approx. 440 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
