ELM3002-0405EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V/±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

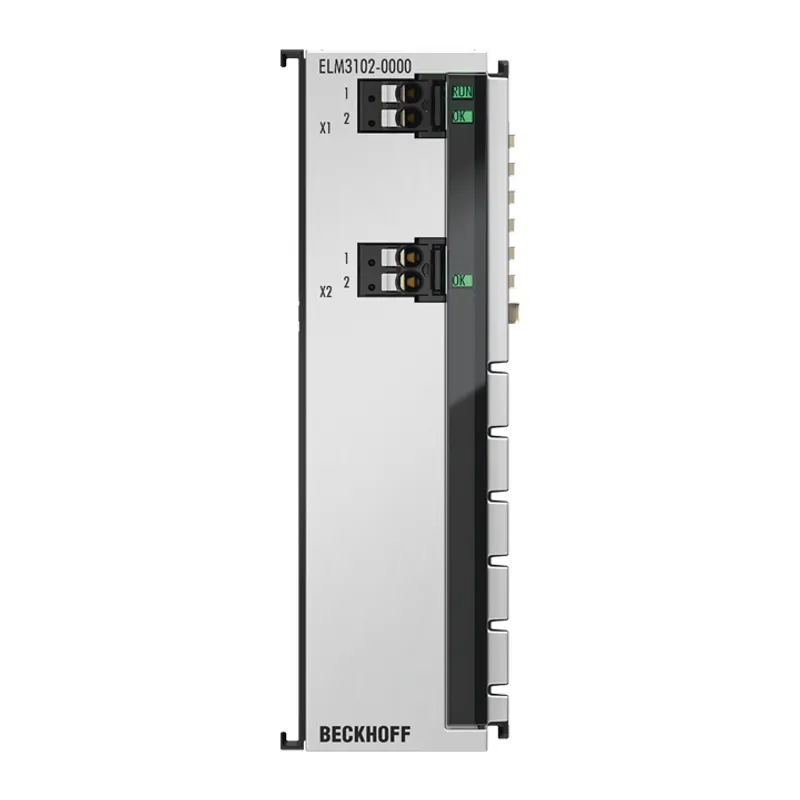

Beckhoff ELM3102-0000
EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 24 bit, 20 ksps
- MPN
- ELM3102-0000
- Category
- EL3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ELM3102-0000?
The ELM310x EtherCAT Terminals are designed for flexible current measurement in the range from -20 to +20 mA. They offer selectable measuring ranges of -20/0/4 to ±20 mA as well as current measurement according to NAMUR NE43. The measuring range is
Specifications
Specifications
| Current measurement | ±20 mA, 0/4…20 mA, NAMUR NE43 (2-wire connection) |
| Number of channels | 2 |
| Technology | current measurement |
| Signal type | differential |
| Connection technology | 2-wire |
| Connection type | push-in, service plug 2-pin |
| Max. sampling rate | max. 50 µs/20 ksps (per channel, simultaneously) |
| Oversampling factor | n = 1…100 selectable (max. 20 ksamples/s) |
| Internal resistance | 150 Ω (current) |
| Measurement error/uncertainty | typ. ±100 ppm/±0.01% in some measuring ranges, relative to the respective full scale value, see documentation |
| Temperature coefficient | typ. 10 ppm/K |
| Connection diagnostics | recommendation: 4…20 mA mode |
| Functional diagnostics | yes |
| Distributed clocks | yes, accuracy 1 µs |
| Resolution | 24 bit (incl. sign) |
| Electrical isolation | Channel/channel | no |
| Electrical isolation | Channel/bus | 707 V DC (type test) |
| Electrical isolation | Channel/SGND | 707 V DC (type test) |
| Current consumption E-bus | typ. 340 mA |
| Current consumption power contacts | – |
| Weight | approx. 350 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Thermal dissipation | typ. 3 W |
| Special features | ExtendedRange 107%, free numeric filter, TrueRMS, integrator/differentiator, non-linear scaling, PeakHold |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | metal housing with signal LEDs |
| Material | zinc die-cast |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | – |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.2…1.5 mm², st*: 0.2…1.5 mm², f*: 0.25…0.75 mm² |
| Connection cross-section AWG | s*: AWG24…14, st*: AWG24…14, f*: AWG24…14 |
| Stripping length | 8…9 mm |
| Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
