Manifold directional control valves Parts

Danfoss

02-402401

KDG4V-3S-33C22A-M-KU-G7- 60-EN721, KDG4V3S33C22AMKUG760EN721

Danfoss

02-402323

KDG5V-5-M-33C80N-M-KUP5- -H1-10, KDG5V5M33C80NMKUP5H110

Danfoss

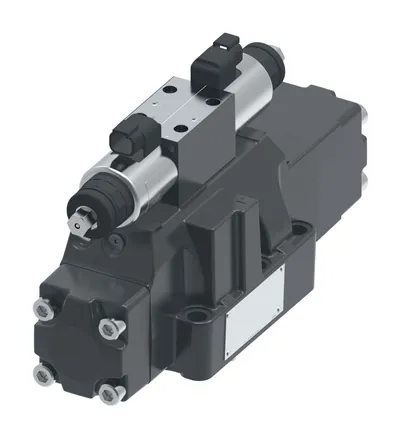

02-402322

KDG5V-8-M-33C330N-M-KUP5 -H1-20, KDG5V8M33C330NMKUP5H120

Danfoss

02-402321

KDG5V-8-M-33C330N200-M-K UP5-H1-20, KDG5V8M33C330N200MKUP5H120

Danfoss

02-402046

DG4V-3-24A-M-U-H7-60-EN2 1, DG4V324AMUH760EN21

Danfoss

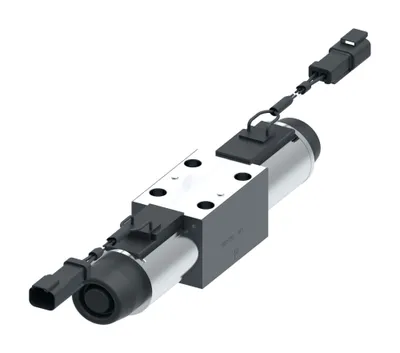

02-401709

KDG4V-3S-33C22A-M-KUP6-H 5-60-EN711, KDG4V3S33C22AMKUP6H560EN711

Danfoss

02-401479

KDG4V-3S-2C08N-M-KU-GP5- 60-EN704, KDG4V3S2C08NMKUGP560EN704

Danfoss

02-401477

KDG4V-3S-33C22A-H-M-KUP5 -GP5-60, KDG4V3S33C22AHMKUP5GP560

Danfoss

02-401403

DG4V-3-2N-M-KUPM4L-D7-H7-60, DG4V32NMKUPM4LD7H760

Danfoss

02-401401

DG4V-3-2A-M-KUPM4L-D7-H7-60, DG4V32AMKUPM4LD7H760

Danfoss

02-401388

DG4V-3-6C-M-KUPM4L-D7-H7-60, DG4V36CMKUPM4LD7H760

Danfoss

02-401272

DG4V-3-2A208-VM-KUPM4L-D7-HH7-60, DG4V32A208VMKUPM4LD7HH760

Danfoss

02-401107

DG4V-3-6C-M-FPM4WL-H7-60 -EN623, DG4V36CMFPM4WLH760EN623

Danfoss

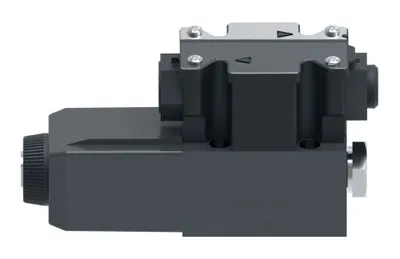

02-401078

DG4V-3-22A-M-FWL-B6-60-E N75, DG4V322AMFWLB660EN75

Danfoss

02-400631

DG4V-3-6C-VM-KUPM4L-D7-H7-60, DG4V36CVMKUPM4LD7H760

Danfoss

02-400628

DG4V-3-2N-VM-KUPM4L-D7-H7-60, DG4V32NVMKUPM4LD7H760

Danfoss

02-400625

DG4V-3-2A-VM-KUPM4L-D7-H7-60, DG4V32AVMKUPM4LD7H760

Danfoss

02-400589

DG4V-3-2A-M-S3-FW-B2-60-EN404, DG4V32AMS3FWB260EN404

Danfoss

02-400464

KDG3V-10-33C550N-11, KDG3V1033C550N11

Danfoss

02-400431

F6-DG4V-3-6C-M-KUPM4L-D7-H7-60, F6DG4V36CMKUPM4LD7H760

Danfoss

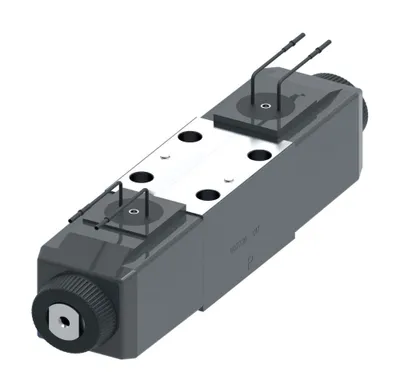

02-400248

KDG4V-3S-2C19N-VM-KU-GP7-60-EN648, KDG4V3S2C19NVMKUGP760EN648

Danfoss

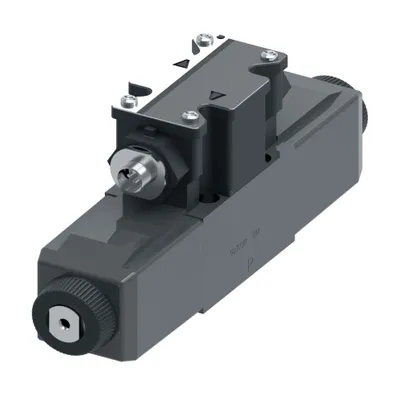

02-399984

DG4V-3-2C-M-FPM4WL-H7-60 -EN623, DG4V32CMFPM4WLH760

Danfoss

02-399884

DG4V-3-6C-M-KU-G7-60-EN6 96, DG4V36CMKUG760EN696

Danfoss

02-399557

KDG4V-3S-2C15N-M-KU-H7-6 0-EN648, KDG4V3S2C15NMKUH760EN648

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Electrical Connection	Model Code 1	Product height in	Product width in	Product width mm
02-402401	Top exit flying lead	KDG4V3S33C22AMKUG760EN721	3.400	1.900	48.26
02-402323	Moulded Deutsch connector	KDG5V5M33C80NMKUP5H110	6.900	2.770	70.358
02-402322	Moulded Deutsch connector	KDG5V8M33C330NMKUP5H120	8.470	4.520	114.808
02-402321	Moulded Deutsch connector	KDG5V8M33C330N200MKUP5H120	8.470	4.520	114.808
02-402046	ISO 4400 (Din 43650) connector	DG4V324AMUH760EN21	3.420	1.880	47.752
02-401709	Flying lead Deutsch connector	KDG4V3S33C22AMKUP6H560EN711	3.580	1.810	45.974
02-401479	Top exit flying lead	KDG4V3S2C08NMKUGP560EN704	3.580	1.810	45.974
02-401477	Moulded Deutsch connector	KDG4V3S33C22AHMKUP5GP560	3.580	1.810	45.974
02-401403	M12 connector	DG4V32NMKUPM4LD7H760	3.570	1.880	47.752
02-401401	M12 connector	DG4V32AMKUPM4LD7H760	3.570	1.880	47.752
02-401388	M12 connector	DG4V36CMKUPM4LD7H760	3.570	2.840	72.136
02-401272	M12 connector	—	3.420	2.000	50.8
02-401107	4-Pin Brad Harrison connector	DG4V36CMFPM4WLH760EN623	3.570	1.880	47.752
02-401078	Flying lead 1/2" NPT housing	DG4V322AMFWLB660EN75	3.570	2.000	50.8
02-400631	M12 connector	DG4V36CVMKUPM4LD7H760	3.570	2.000	50.8
02-400628	M12 connector	DG4V32NVMKUPM4LD7H760	3.570	2.000	50.8
02-400625	M12 connector	DG4V32AVMKUPM4LD7H760	3.570	1.880	47.752
02-400589	Flying lead 1/2" NPT housing	DG4V32AMS3FWB260EN404	3.570	1.880	47.752
02-400464	None	KDG3V1033C550N11	7.450	5.400	137.16
02-400431	M12 connector	F6DG4V36CMKUPM4LD7H760	3.570	2.000	50.8
02-400248	Top exit flying lead	KDG4V3S2C19NVMKUGP760EN648	3.580	1.810	45.974
02-399984	4-pin connector	DG4V32CMFPM4WLH760	3.570	1.880	47.752
02-399884	Top exit flying lead	DG4V36CMKUG760EN696	3.420	1.880	47.752
02-399557	Top exit flying lead	KDG4V3S2C15NMKUH760EN648	3.580	1.810	45.974

Common to all listed parts

Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
