Manifold directional control valves Parts
Compare Manifold directional control valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product length in | Product length mm | Spool Type | Spring Arrangement |
|---|---|---|---|---|---|

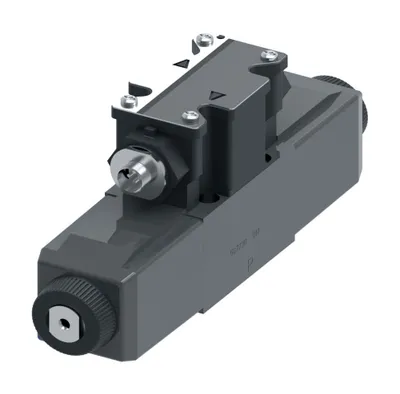

| 02-396170 | DG4V32NMFPM4WLD7H760EN654 | 6.140 | 155.956 | Spool 2 | No spring detented |
| 02-396152 | DG4V32AMFPM4WLD7H760EN654 | 6.140 | 155.956 | Spool 2 | Spring offset end to end |
| 02-396151 | DG4V32CMFPM4WLD7H760EN654 | 8.660 | 219.964 | Spool 2 | Spring centred |
| 02-396150 | DG4V36CMFPM4WLD7H760EN654 | 8.660 | 219.964 | Spool 6 | Spring centred |
| 02-395901 | DG4V322AMUHL760EN594 | 6.140 | 155.956 | Spool 22 | Spring offset end to end |
| 02-395407 | DG4V32CMKUP8D2G760EN652P15 | 8.660 | 219.964 | Spool 2 | Spring centred |
| 02-395405 | DG4V36CMKUP8D2G760EN652 | 8.660 | 219.964 | Spool 6 | Spring centred |
| 02-395404 | DG4V36CMKUP8D2G760EN652A15 | 8.660 | 219.964 | Spool 6 | Spring centred |
| 02-395259 | DG4V32ALMUHL760EN594 | 6.140 | 155.956 | Spool 2 | Spring offset end to end LH |
| 02-395258 | DG4V32AMUHL760EN594 | 6.140 | 155.956 | Spool 2 | Spring offset end to end |

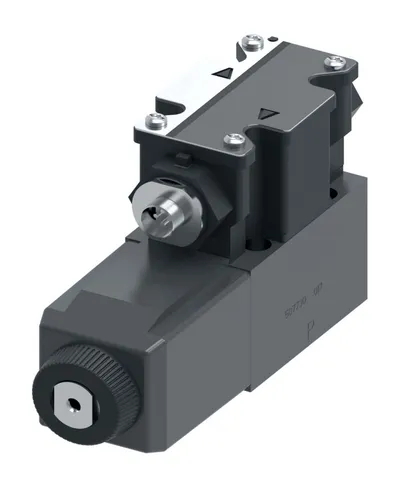

| 02-394980 | DG4V32AMFPM4WLD7H760EN623 | 6.140 | 155.956 | Spool 2 | Spring offset end to end |
| 02-394938 | DG4V32BMFPM4WLD7HL760EN623 | 5.750 | 146.050 | Spool 2 | Spring offset end to centre |
| 02-394916 | DG4V36CMFPM4WLD7H760EN623 | 8.660 | 219.964 | Spool 6 | Spring centred |
| 02-394872 | DG4V32ALMFPM4WLD7HL760EN623 | 5.750 | 146.050 | Spool 2 | Spring offset end to end LH |

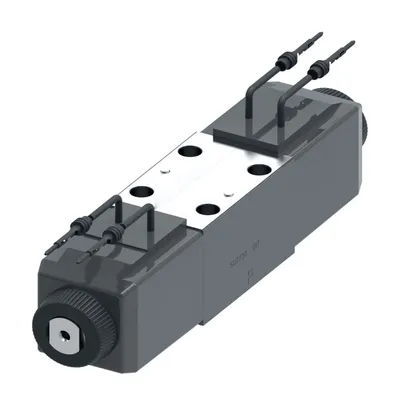

| 02-394838 | DG4V36CMKUP7D2G760EN534 | 5.750 | 146.050 | Spool 6 | Spring centred |
| 02-394781 | DG4V36NMFPM4WLD7H760EN623 | 6.140 | 155.956 | Spool 6 | No spring detented |
| 02-394774 | DG4V32AMFPA4WLD7HL760EN476 | 7.870 | 199.898 | Spool 2 | Spring offset end to end |
| 02-394758 | DG4V37CMFPM4WLD7H760EN623 | 8.660 | 219.964 | Spool 7 | Spring centred |

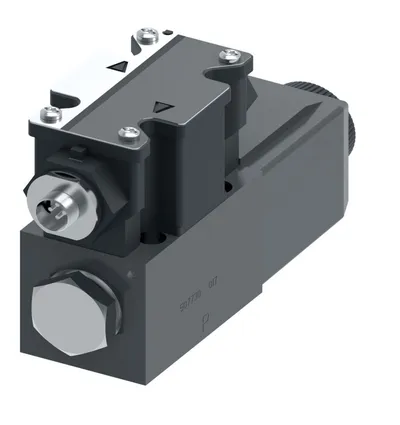

| 02-394757 | DG4V30BLMFPM4WLD7H760EN623 | 7.870 | 199.898 | Spool 0 | Spring offset end to centre LH |
| 02-394751 | DG4V32CMFPM4WLD7HL760EN623 | 6.140 | 155.956 | Spool 2 | Spring centred |
| 02-394750 | DG4V32NMFPM4WLD7HL760EN623 | 7.870 | 199.898 | Spool 2 | No spring detented |
| 02-394720 | DG4V36CMKUP8D2G760EN652P15 | 8.660 | 219.964 | Spool 6 | Spring centred |

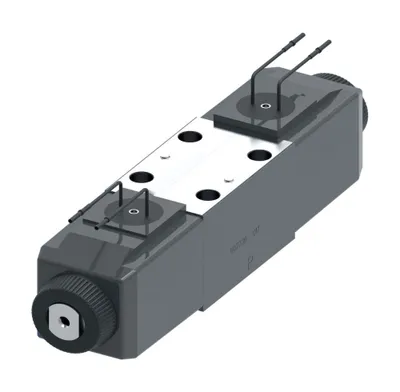

| 02-394447 | KDG4V3S2C19NVMKUH760EN648 | 8.640 | 219.456 | CLOSED CENTER | — |
| 02-394374 | DG4V32AMFPM4WLD7HL760EN623 | 8.660 | 219.964 | Spool 2 | Spring offset end to end |
Common to all listed parts
| Design Series | 60 Series |
| Manual override | Plain |
| Stage | Single stage |
| Tank port rating BAR | 210.0 |
| Tank port rating PSI | 3000 |
