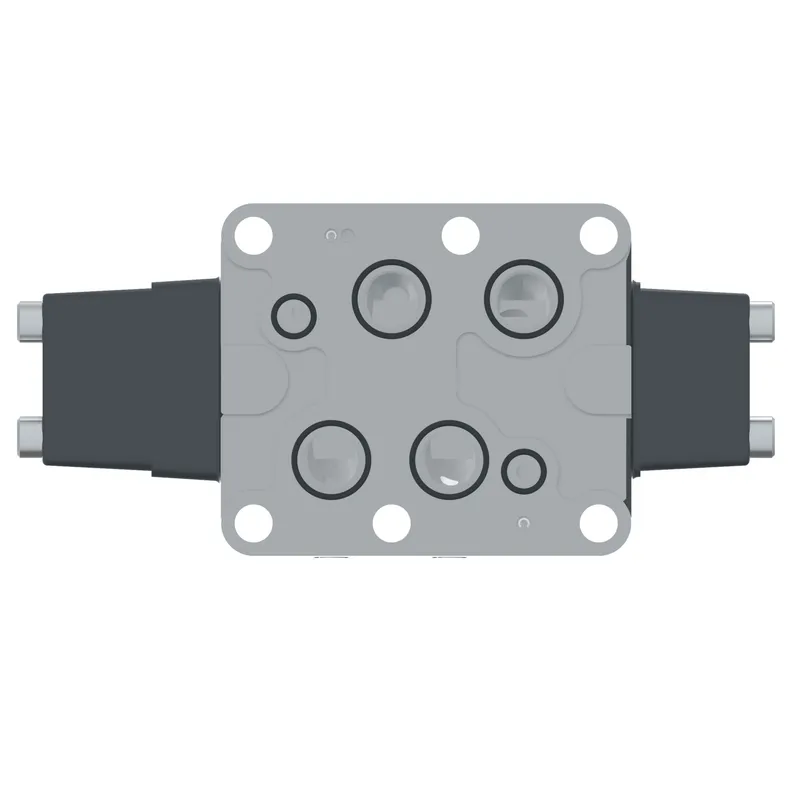

Danfoss 02-400464

KDG3V-10-33C550N-11, KDG3V1033C550N11

MPN: 02-400464
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-400464?

Danfoss KDG3V-10-33C550N-11, KDG3V1033C550N11, manufacturer part number 02-400464. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	550.00
A Port flow USGPM	145.00
Actuation Type	Hydraulic pilot operated
B Port flow LPM	550.00
B Port flow USGPM	145.00
Brand	Vickers by Danfoss
Build orientation	None
Build type	Spring centered
Coil voltage	None
Command input	None
Communication protocol	None
Design Series	11 Series
Electrical Connection	None
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-10/NFPA D10/CETOP 10
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KDG3V1033C550N11
On board electronics	No
Performance	Standard
Product height in	7.450
Product height mm	189.230
Product length in	14.980
Product length mm	380.492
Product width in	5.400
Product width mm	137.16
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Buna-N
Special features	None
Spool Type	Bleed A and B to T
Stage	Single stage
Symmetric flow	Yes
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
